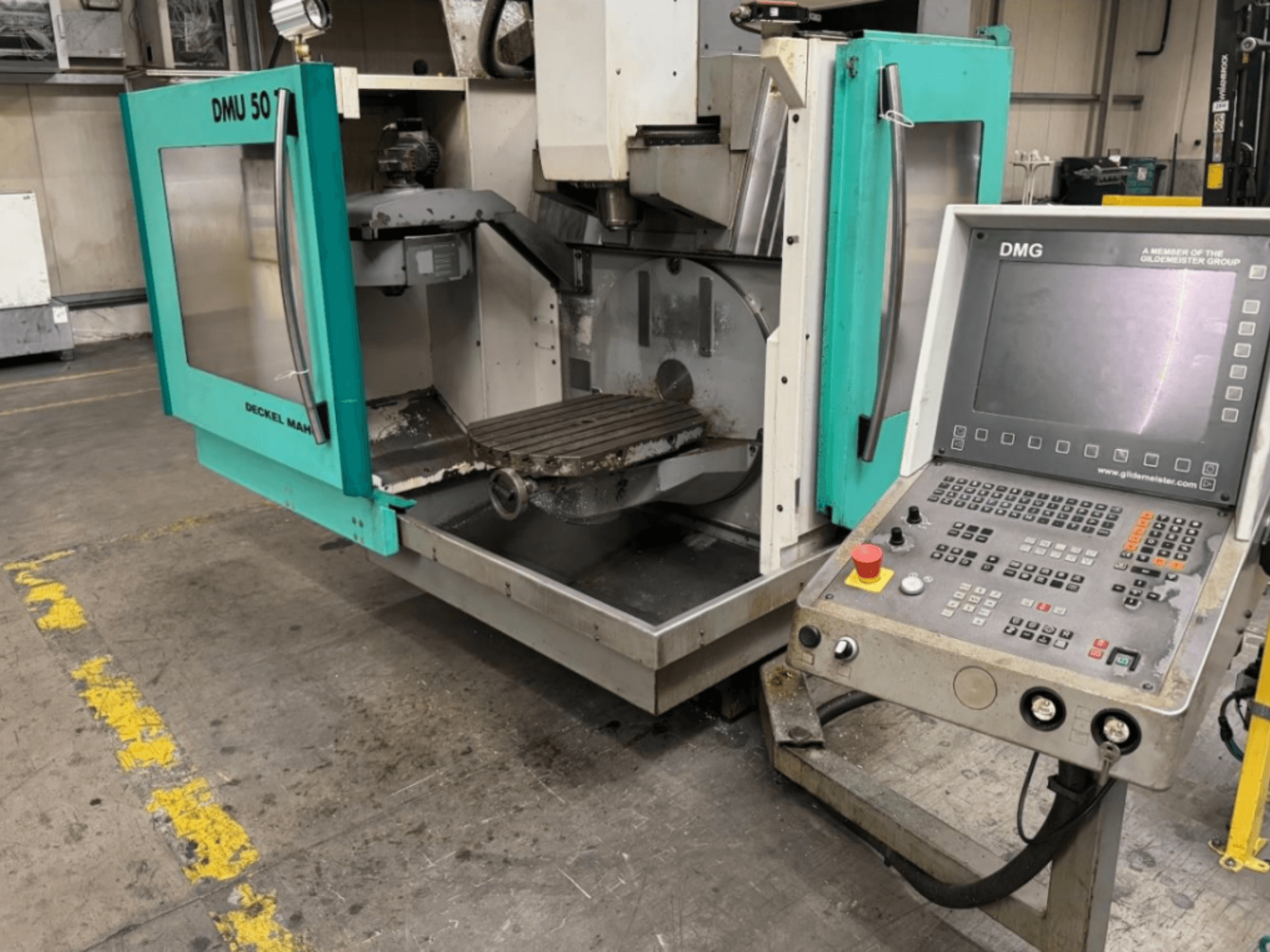

This 5-axis DECKEL MAHO DMU 50 T was manufactured in 2000, featuring a Heidenhain TNC 430 M control system and a manual swivel rotary table for versatile 5-axis machining. It has a spindle speed up to 8,000 rpm, tool holder SK 40, and rapid traverse rates of 12 m/min in X/Y/Z. If you are looking to get high quality milling capabilities consider the DECKEL MAHO DMU 50 T machine we have for sale. Contact us for more information.
Overview
- brand: DECKEL MAHO
- year: 2000
- MODEL: DMU 50 T
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 50 T
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 430 MHaidenhain TNC 430 M
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
Additional Information
Rapid traverse (X/Y/Z) 12 m/min
Machining capability: 5-axis machining via manual swivel/rotary table axes
Cooling system: External coolant supply; capacity 80 liters; coolant used Alusol SL 51 XBB
Tool system: Tool magazine with 16 tool positions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
