DECKEL MAHO - DMC 65 VDE-MIL-DEC-2003-00009

Rs. 1,650,385
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

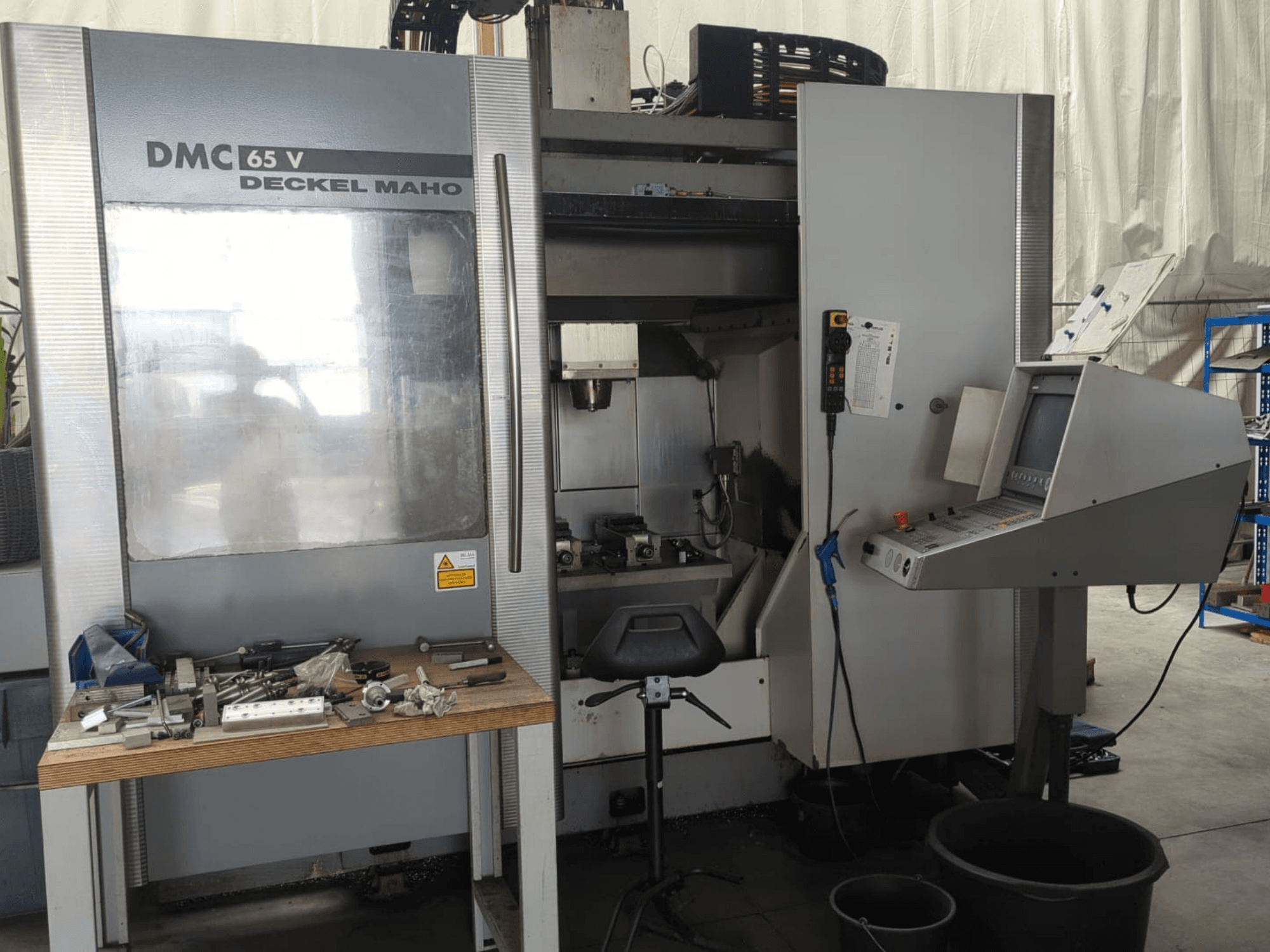

This 3-axis DECKEL MAHO DMC 65 V was manufactured in 2003. It features a spindle speed of 18,000 rpm and a tool changer capacity of 30 positions, enhancing its operational efficiency. The machine is equipped with a Heidenhain TNC 426 control system and optional equipment such as tool measurement and an automatic 3D probe. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 65 V vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DECKEL MAHO
  • year: 2003
  • MODEL: DMC 65 V
  • production hours: 14085
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 65 V

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 426

Movement

  • Number of Axes: 3
  • X-axis Travel: 650 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Speed: 18000 RPM
  • Tool Stations: 30

Additional Information

- Optional Equipment: Tool measurement, Automatic 3D probe, Chip conveyor, External cooling system

- Operating Hours (Power-on / Program Run): 52,067 h / 14,085 h

- Electrical Connection: 230V / 1A (Auxiliary)

- Known Defects: Sensor for control cabinet ventilation does not always turn on; spindle collet seizes after ~3 weeks of inactivity (loosens after ~200 cycles of clamping/releasing, works flawlessly in continuous operation)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
