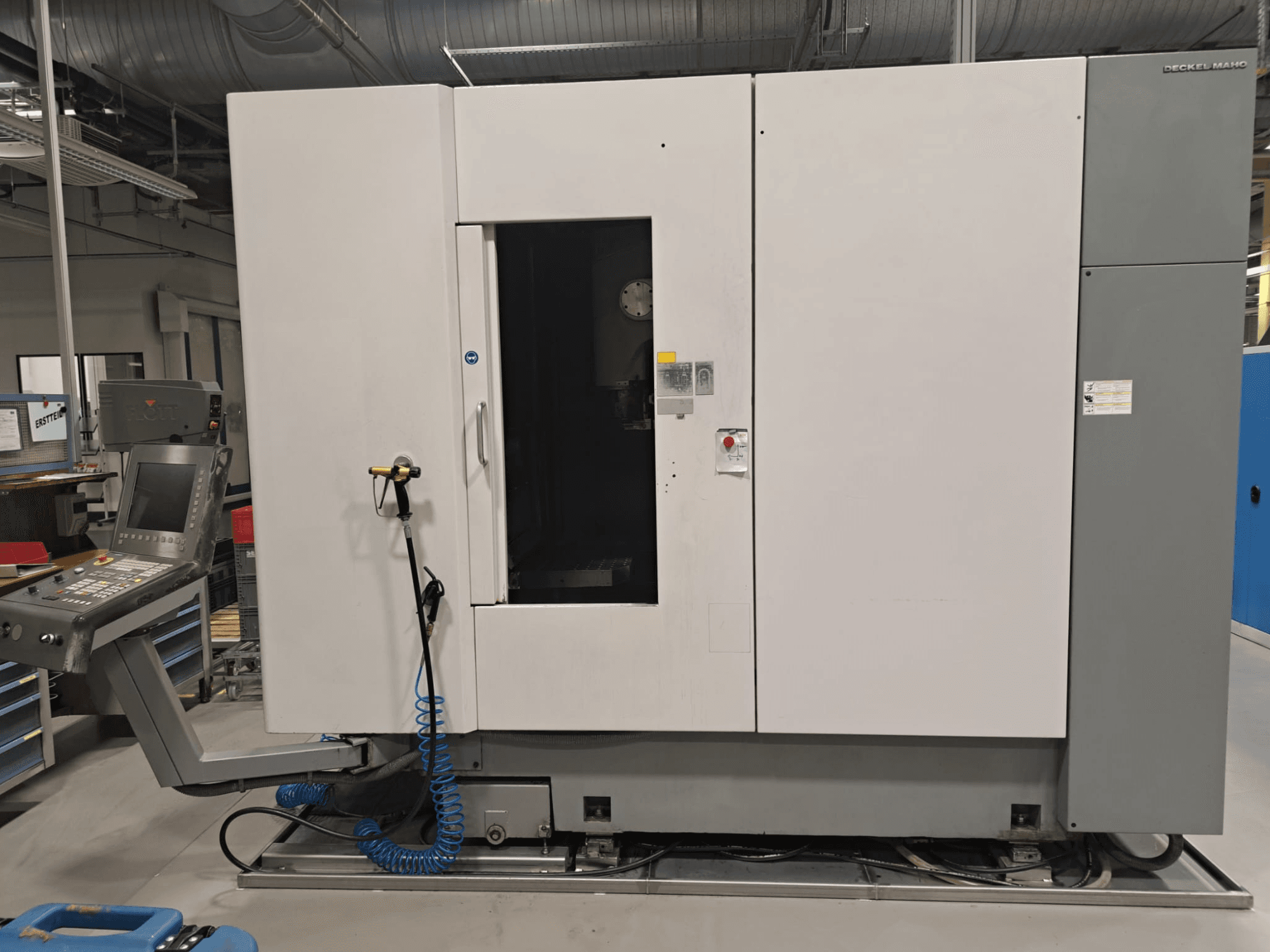

This 3-axis DECKEL MAHO DMP 60V was manufactured in 2003. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 425 mm. The machine is equipped with a spindle speed range of 20 to 18,000 rpm and a tool changer with 25 magazine positions. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMP 60V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2003
- MODEL: DMP 60V
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMP 60V
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Height: 2700 mm
- Machine Length: 3308 mm
- Machine Weight: 7000 kg
- Machine Width: 1950 mm
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 425 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 18000 RPM
Additional Information
- Control Unit: Siemens 840D / SINUMERIK 840D powerline
- Spindle Speed Range: 20 to 18,000 rpm
- AC Main Drive Power: 35/25 kW (40/100% ED)
- Tool Changer / Capacity: 25 magazine positions
- Tool Holder Taper: HSK-A 63
- Worktable Type: Swivel / Pallet Changer
- Clamping Surface Area: 2x 660 x 400 mm
- Internal Coolant Supply (IKZ): 40 bar / 23 l/min / 600 L tank
- Coolant / Filtration System: Interlit Kompakt-Filteranlage (Type: SPB 3/600, Filter surface: 0.7 m², Tank capacity: 600 l, YOM: 2003) with gravity paper belt filter unit
- Coolant / Chip Management: Scraper belt chip conveyor (1000 mm discharge height) with auxiliary 200 L coolant tank
- Accessories: Electronic handwheel, integrated blow-off/spray gun attached to front cabinet
- Machine Dimensions (Height): 2700 mm (Machine height), 2645 mm (Transport height)
- Machine Dimensions (Width): 1950 mm (Without control panel), 2990 mm (With control panel / door open), 1950 mm (Transport width)
- Machine Dimensions (Length): 3308 mm (Machine length), 3850 mm (Transport length with swivelled control)
- Required Floor Area: 6000 x 4000 mm (Standard), 6000 x 5200 mm (With chip conveyor), 6000 x 5300 mm (With chip conveyor and coolant system)
- Transport Dimensions (L x W x H): Approx. 3400 x 2000 x 2700 mm
- Documentation Included: Machine Handbook
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
