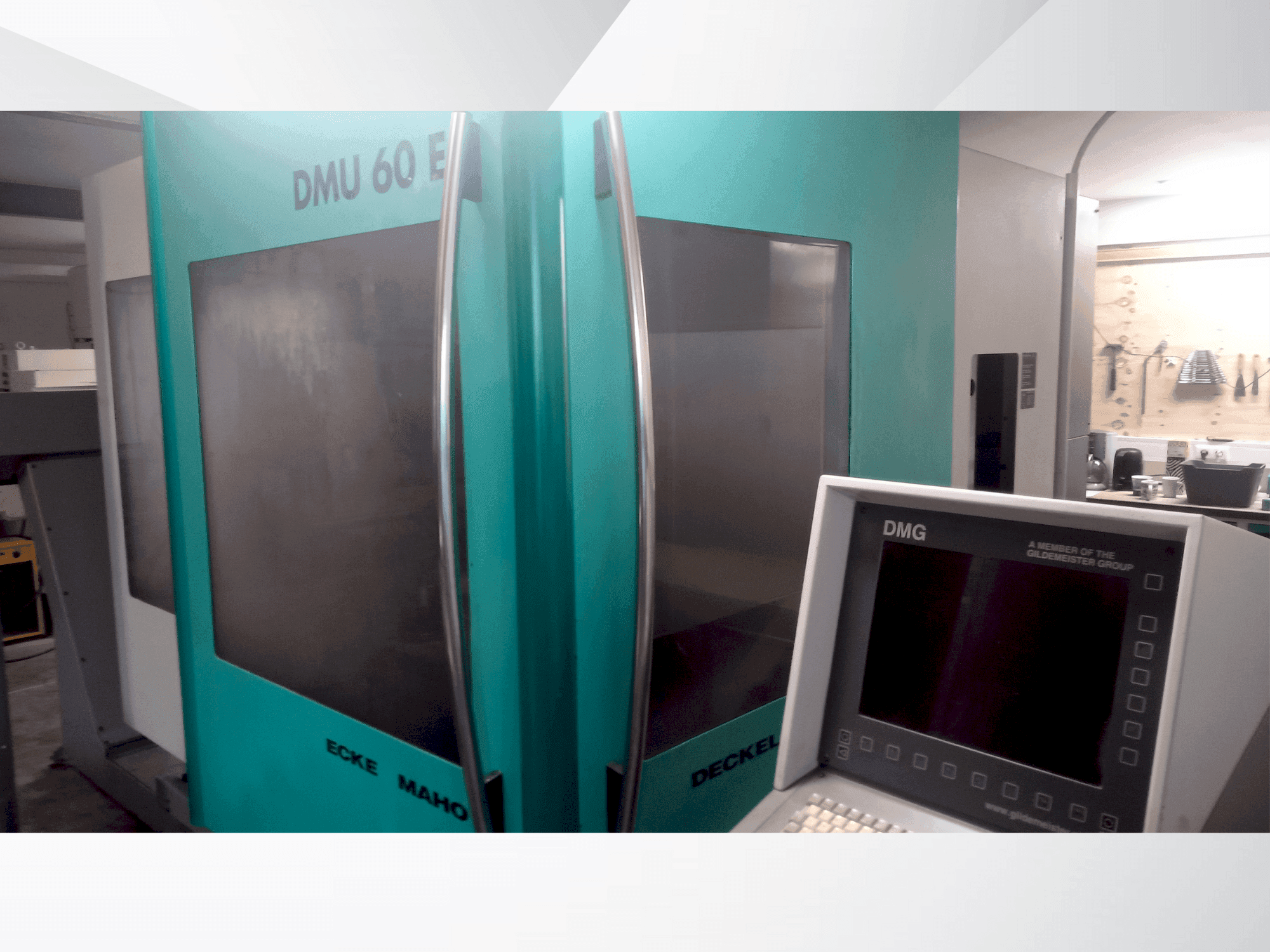

DECKEL MAHO - DMU 60 EDE-MIL-DEC-1999-00009

Additional equipment

• - 24 tool places
• - 1 x vice included (picture)
• - 0-point clock included (to measure x,y, z) (picture)
• - no tools included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Chip conveyor

Extra information

• - Potentiometers for feed and rapid feed, together with the travel measuring system in the X axis need to be replaced // Main drive (without gearbox)/ Drive: AC servo motor with digital technology/ Spindle speed: Infinitely programmable: 20 - 12,000 min-¹/ In set-up mode: 20 - 800 min-¹/ Torque/power: See diagram (efficiency taken into account)./ Note: Specifications apply to undervoltage of 350 V (400 V -10%) with inverter system from Heidenhain (N control)./ Feed drive: Axes: X, Y, Z (AC servo motors in digital technology)/ Z-axis: With collision protection clutch./ Feed speed (X, Y, Z): 20 - 10,000 mm/min/ Rapid traverse: X-, Y-axis: 18 m/min/ Z-axis: 15 m/min/ Set-up mode (X, Y, Z): 20 - 2,000 mm/min/ Movement directions & precision: Position measuring system: Resolution (X, Y, Z): 0.001 mm/ Input resolution (X, Y, Z): 0.001 mm/ Position tolerance (X, Y, Z): ±0.010 mm/ Working range (travel): X-axis: 500 mm/ Y-axis: 525 mm/ Z-axis: 500 mm/ Additional information: Power: 26 kVA (reference to power supply)/ Interface: RS-232C / RS-422 (230V/1A)/ Spindle head: SK 40 DIN 2079/ Tool changer with magazine (option, only vertical)/ Magazine positions 25 pc/ Max. tool diameter/ -80mm when all slots are occupied/ -with free neighboring slots 160mm/ max. tool length from spindle nose 315mm/ max. tool weight, with automatic tool change 8kg/ max. total tool weight 100kg/ Required compressed air approx. 5.5 - 8.0 bar/ Work table/ Rigid table: clamping surface 1000 x 543mm/ distance of the T-slots 63mm/ Number of T-slots / size 8/14 H7 pc/ Permissible load of the work tables/ Rigid table 350kg

Payment Terms

• Payment in advance

• Asset Financing
