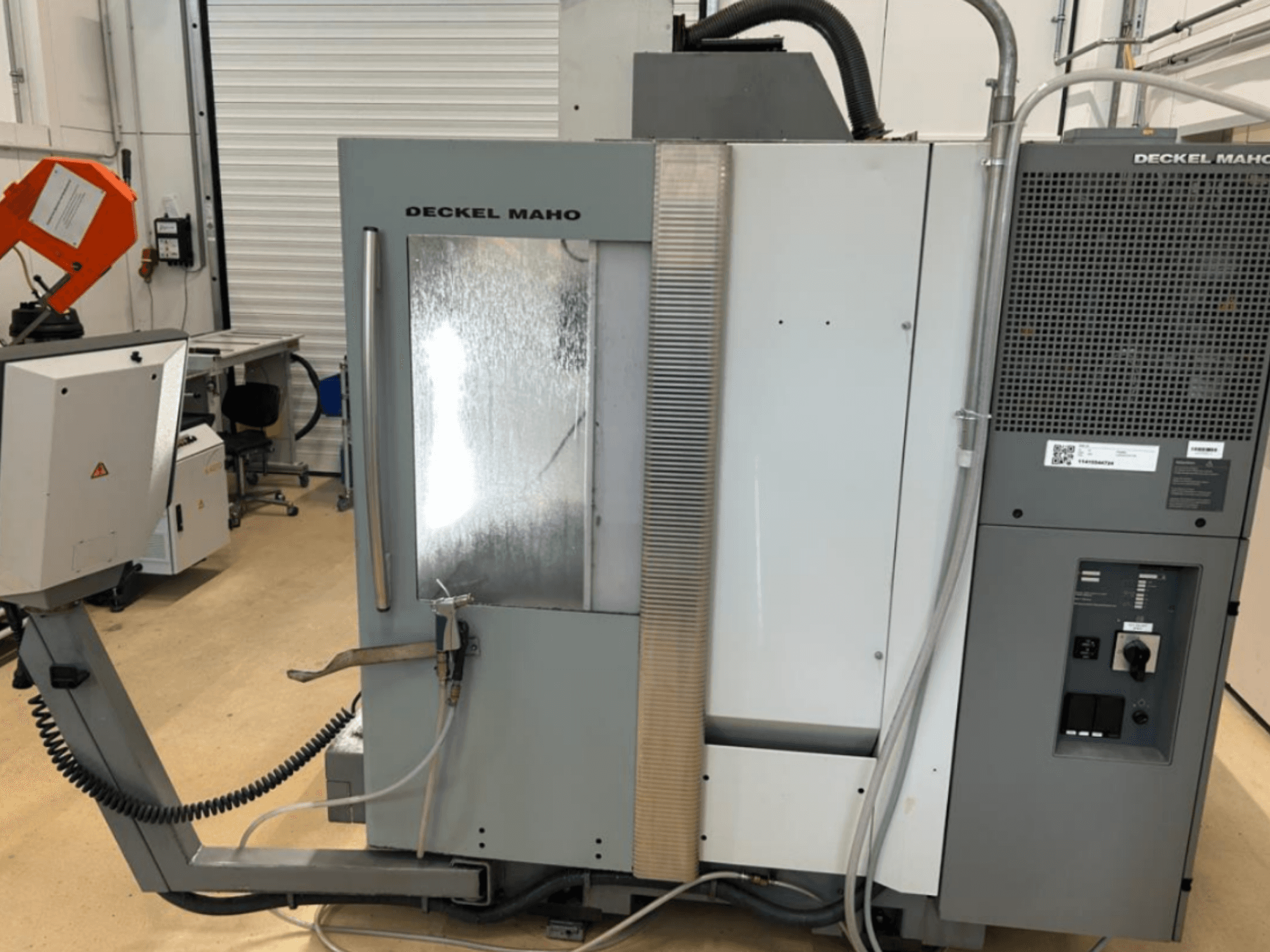

DECKEL MAHO - DMU 50DE-MIL-DEC-2005-00007

- Table Type: Digital swivel rotary table

- Table Dimensions: Diameter 630 mm x 500 mm

- Max. Table Load: 200 kg

- Swivel Range: 115 degrees (-5 / +110)

- Table Features: Digital drives, hydraulic clamping (positioning mode only), electronic angle display, plane transformation

- Spindle Speed Range: 20 - 10,000 rpm (steplessly variable)

- Drive Power (100% / 40% duty cycle): 9 kW / 13 kW

- Torque (40% duty cycle): 82 Nm

- Measuring System: Direct linear measurement system X/Y/Z

- Input Resolution X/Y/Z: 0.01 mm

- Position Tolerance X/Y/Z: 0.010 mm

- Rapid Traverse X/Y/Z: 24 m/min

- Feed Rate: 20 m/min

- Tool Changer Type: Chain magazine with double gripper

- Tool Magazine Capacity: 30 tool positions SK40 (DIN 69871)

- Max. Tool Diameter: D80 to D130 mm (speed-dependent)

- Max. Tool Length: 290 mm

- Max. Tool Weight: 6 kg

- Coolant Unit Capacity: 80 l

- Electrical Connection / Power Load: 17 kVA

- Max. Current (Jn max): 28 A

- Fuse / Supply Protection: 35 A

- Voltage: 400 V / 230 V / 24 V

- Frequency: 50 Hz

- Footprint Dimensions (L x W x H): 4,860 mm x 4,350 mm x 2,424 mm

- Transport Dimensions (L x W x H): 2,210 mm x 2,120 mm x 2,150 mm

- Transport Weight: 4.05 t (4,050 kg)

Additional Equipment

Included: Right cabin door, Operating Mode 4, Coolant/blow-air switchover, Spray gun, Heidenhain TS641 Infrared touch probe, Electronic handwheel, Extra V24 RS232 interface in/on cabinet, MDE interface (machine on, machine running, part counter), Oil pan drawing, German documentation, 3D machine model for kinematic simulation (IGES, STEP format), Large quantity of SK40 (DIN 69871) tool holders
