- ➤ Used DECKEL MAHO DMF 250 linear For Sale | gindumac.com

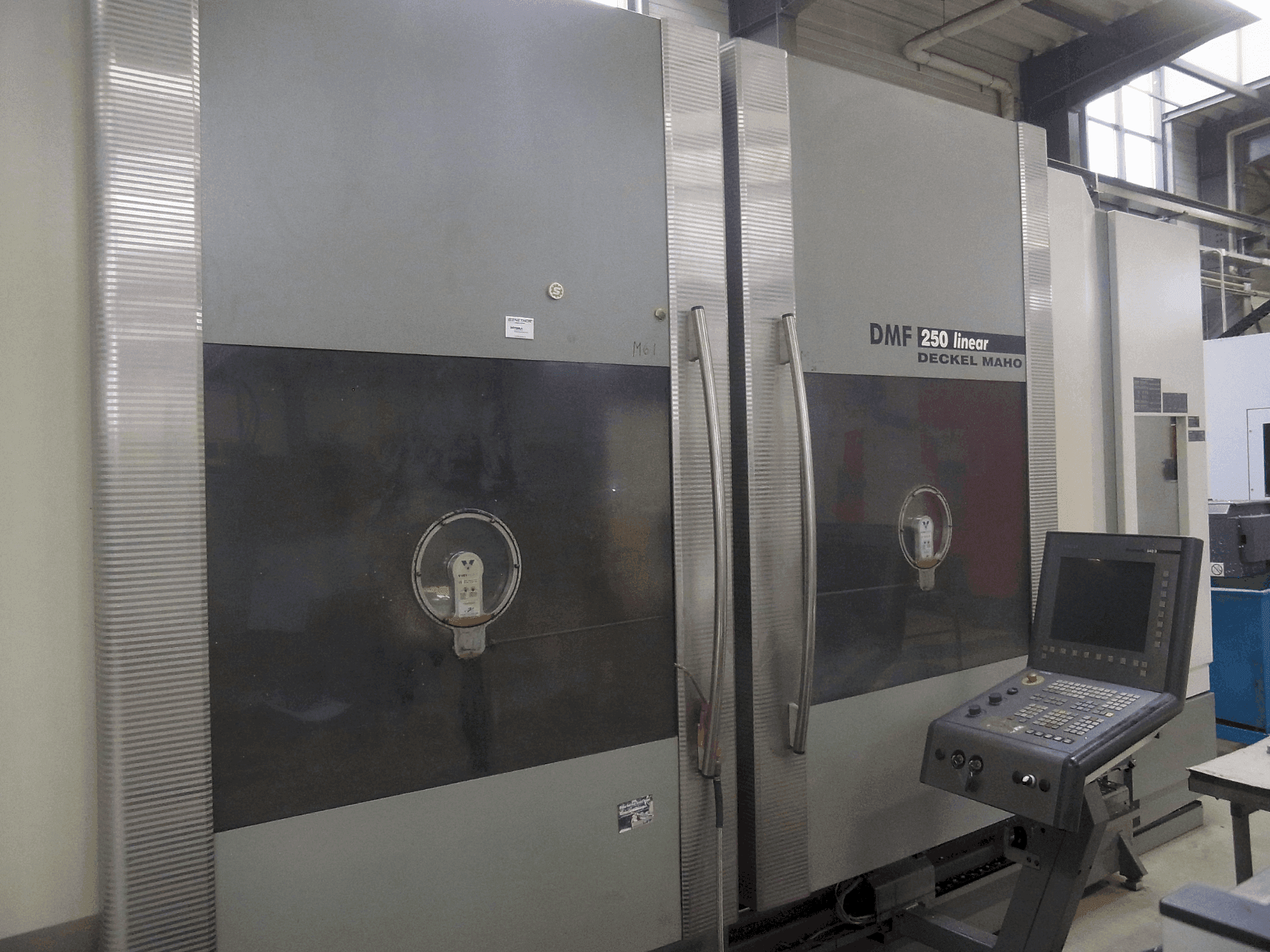

This 3-axis DECKEL MAHO DMF 250 linear was manufactured in 2002. It features a robust vertical machining center with a high-speed main drive up to 40 kW and rapid traverse rates of 100 m/min on the X-axis and 60 m/min on Y- and Z-axes. The work table measures 3,100 × 900 mm with a load capacity of 3,100 kg. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMF 250 linear machine we have for sale. Contact us for more information.
Overview
- brand: DECKEL MAHO
- year: 2002
- MODEL: DMF 250 linear
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMF 250 linear
General Data
- Machine weight: 24500 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 35 kW
- Number of axis: 3
Movement
- X-AXIS Rapid traverse: 100 m/min
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Rapid traverse: 60 m/min
Table
- Table load: 3100 kg
Turret
- Number of tool slots: 9
Tools
- Max weight: 6 kg (SK40/HSK63) or 12 kg (SK50/HSK100)
- Type of tool holder: SK40, SK50, HSK-A63, HSK-A100
Additional equipment
- - Safety Equipment: Monitored and locked work area door; Key switch for normal and set-up mode; Limited functions when the door is open
Additional Information
- Technical Machine Benefits:
- - Feed speed: up to 20000 mm/min
- - Clamping surface: 3100 × 900 mm
- - T-slots: 9 pieces, 100 mm apart
- - Tool magazine capacity: 30 places
- - Resolution of measuring system: 0. 001 mm
- - Electrical connections: mains connection 3n/pe~400/230 v, 50/60 hz; power consumption 82 kva
- - Pneumatics: compressed air 5. 5-8 bar; air volume 25 m³/h (without cooling), +20 m³/h with cooling
- - Weight (kg): with accessories: up to 29280 kg
- - Room Temperature: +15°C to +35°C Humidity: 20-75%
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
