DECKEL MAHO - DMC 103 VDE-MIL-DEC-2000-00008

Rs. 1,439,281
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

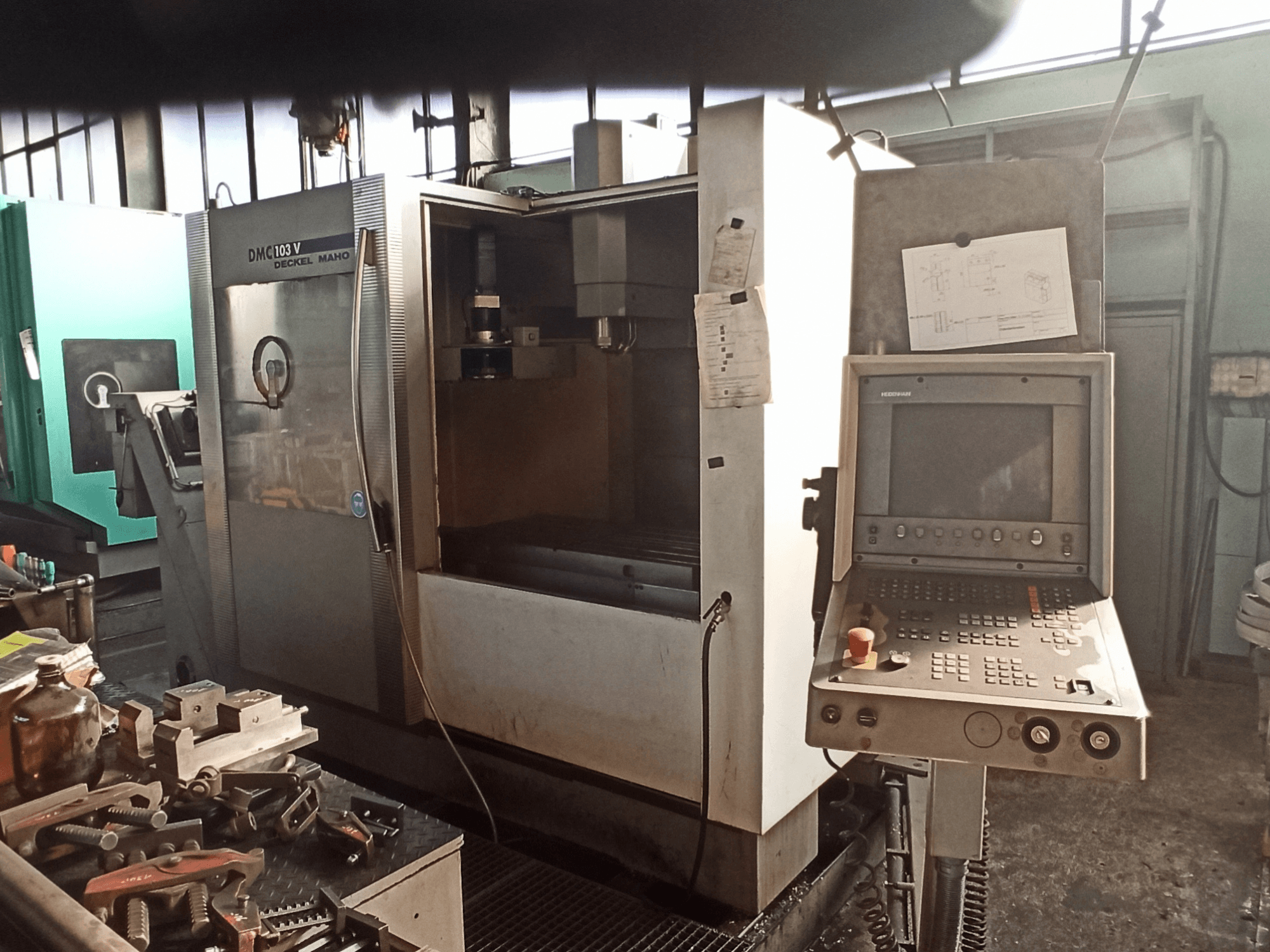

This 3-axis DECKEL MAHO DMC 103 V was manufactured in 2000. It features a travel range of 1000 mm in the X-axis, 600 mm in the Y-axis, and 600 mm in the Z-axis. The machine includes a vertical tool changer with 24 stations and a maximum permissible load of 800 kg. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 103 V vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DECKEL MAHO
  • year: 2000
  • MODEL: DMC 103 V
  • production hours: 32000
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 103 V

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 430

Dimensions

  • Machine Weight: 4900 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1000 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Spindle Power: 13 kW
  • Spindle Speed: 8000 RPM
  • Tool Stations: 24

Additional Information

- Rapid Traverse (X/Y/Z): 30 m/min

- Max. Permissible Load: 800 kg

- Tool Changer: Vertical tool changer with 24 stations

- Machine Weight: approx. 4,900 kg

- Main Drive: Speed-controlled asynchronous motor 9/13 kW

- Electrical Specifications: 400 V, 3+PE~, 50/60 Hz, 50 A, 30 kVA, Control voltage 230 V / 24 V=

- Operating Hours: approx. 32,000 operational hours (cabinet counter reads 054888 h)

- Included / Additional Equipment: Chip conveyor, dividing head with counterholder (4th axis, currently disconnected)

- Operational Condition: Configured for 4 axes; 4th axis power unit failed/disconnected; operated as 3-axis machine until end of 2021; out of service and available immediately

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
