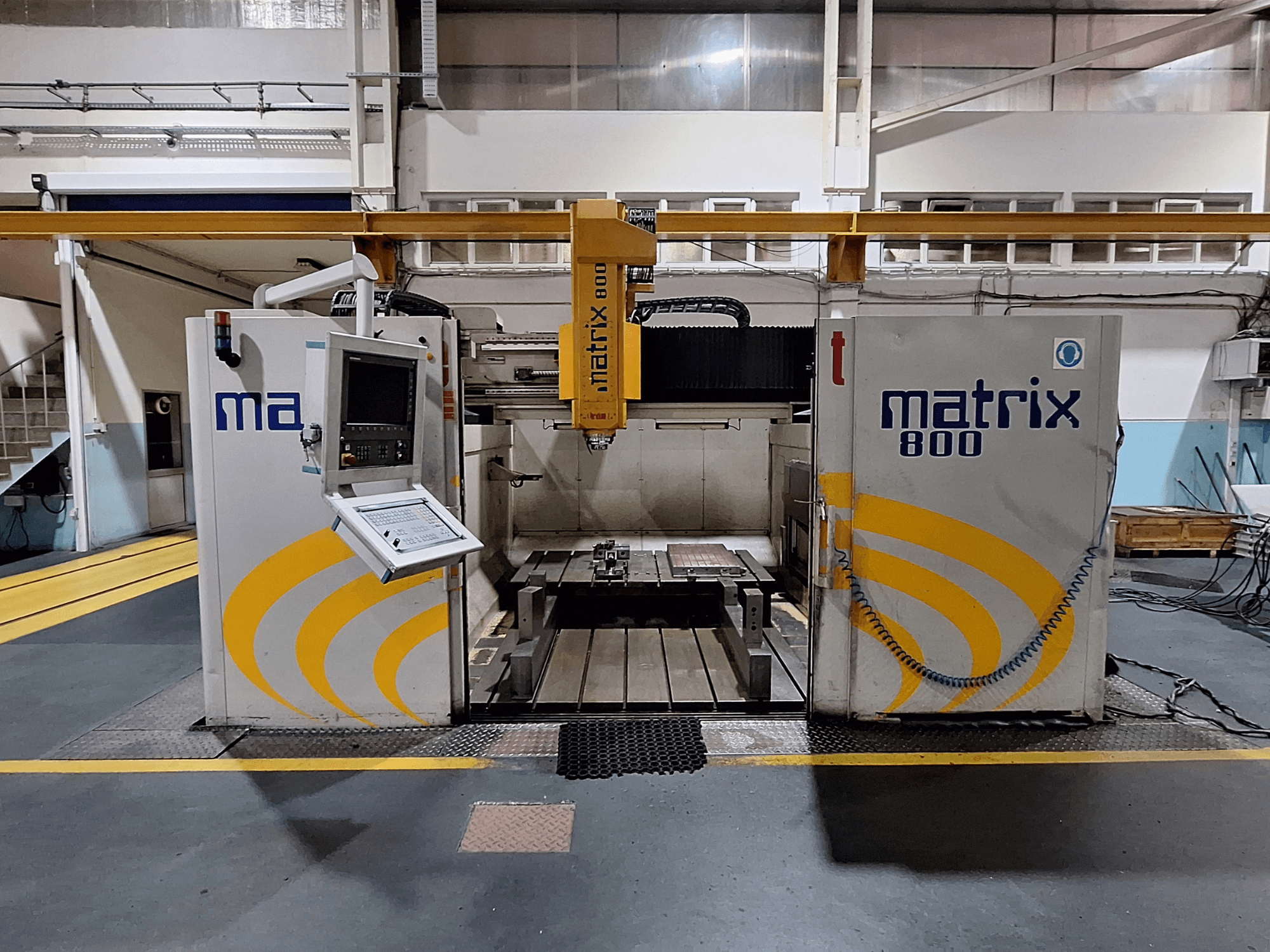

This 5-axis Breton Matrix WM 800 K25 was manufactured in 2003. It features a substantial table dimension of 2000 x 3000 mm and impressive axes strokes of 2000 mm in X, 2500 mm in Y, and 800 mm in Z. The machine has a maximum rotation speed of 24000 rpm and a rapid forward speed of 40 m/min. If you are looking to get high-quality milling capabilities, consider the Breton Matrix WM 800 K25 gantry milling machine we have for sale. Contact us for further details.
Overview
- brand: Breton
- year: 2003
- MODEL: Matrix WM 800 K25
- application type: Milling
- Location: Portugal
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - Breton Matrix WM 800 K25
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: k25
Dimensions
- Machine Height: 4789 mm
- Machine Length: 4280 mm
- Machine Weight: 30000 kg
- Machine Width: 4300 mm
- Table Load: 10000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 2500 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 45 kW
- Spindle Speed: 24000 RPM
Additional Information
Table dimensions (X/Y): 2000 x 3000 mm
Rapid traverse (X/Y/Z): 40 / 40 / 20 m/min
Power: 45 / 20 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
