➤ Used PORTIC VTEC - Gantry Mill For Sale | gindumac.com

Show in original language

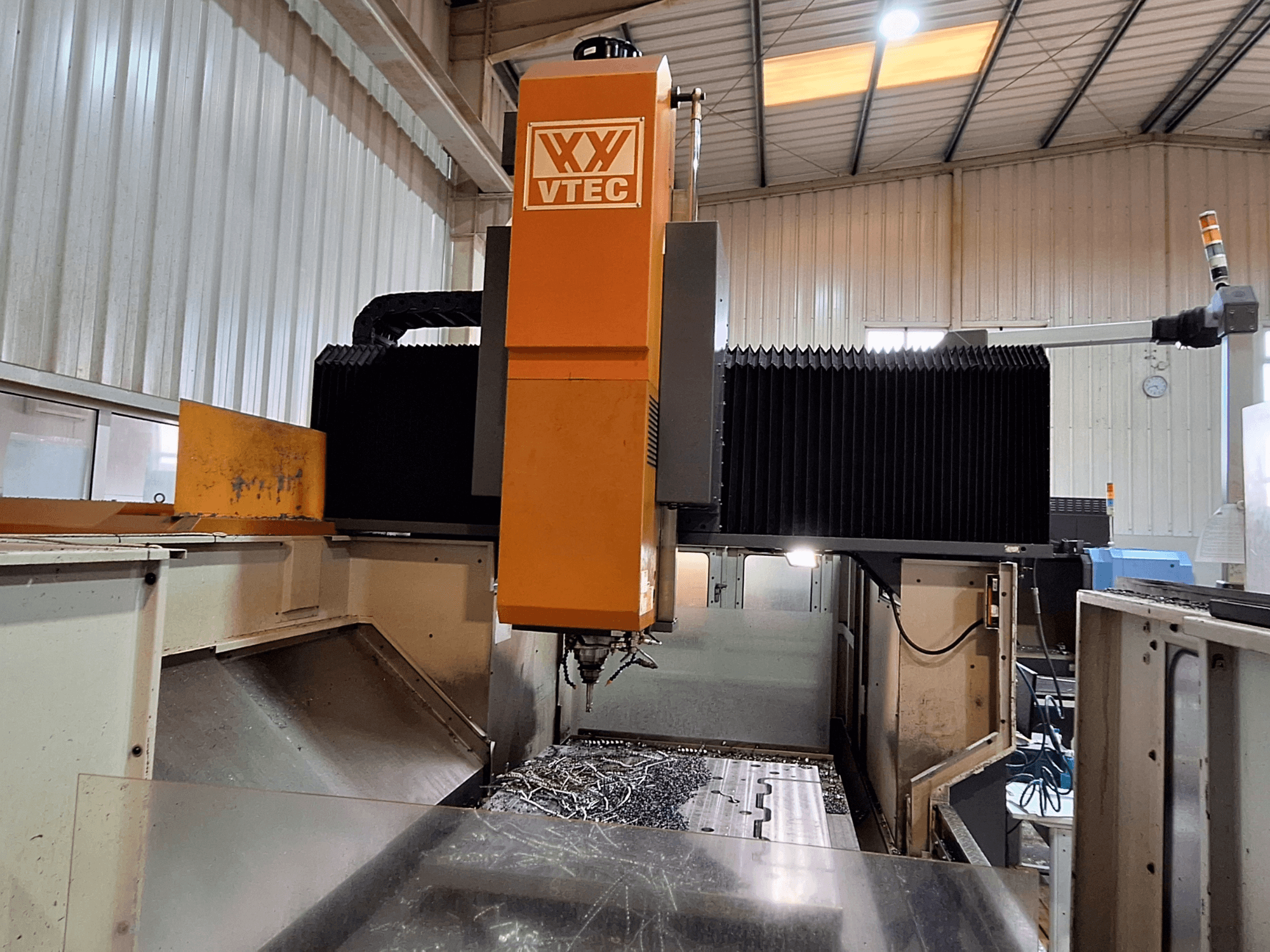

This 3-axis PORTIC VTEC gantry milling machine was manufactured in 2016. It features an impressive X-axis travel of 2,000 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 800 mm. The machine includes a robust table size of 2,000 x 1,300 mm and a maximum workpiece weight capacity of 8,000 kg. If you are looking to get high-quality milling capabilities, consider the PORTIC VTEC gantry milling machine we have for sale. Contact us for further details.

Overview

brand: PORTIC
year: 2016
MODEL: VTEC
application type: Milling
Location: Portugal
machine type: Gantry Milling Machine

Technical Information - PORTIC VTEC

Dimensions

Machine Weight: 21500 kg
Table Length: 2000 mm
Table Width: 1300 mm

Movement

Number of Axes: 3
X-axis Travel: 2000 mm
Y-axis Travel: 1600 mm
Z-axis Travel: 800 mm

Technical Specification

Max. Tool Weight: 18 kg
Spindle Power: 22 kW
Spindle Speed: 10000 RPM

Additional Information

Max. workpiece weight: 8,000 kg
Distance between columns: 1,700 mm
Spindle nose to table: 205 – 1,225 mm
Spindle speed: 4,000 / 6,000 rpm (gear type) or 8,000 / 10,000 rpm (belt type)
Spindle power: 18.5 / 22 kW (optional 22 / 26 kW or 30 / 37 kW)
Rapid traverse (X/Y/Z): 15 m/min
Cutting feed rate: 7 m/min
Guideway type: Rigid box ways on all 3 axes
ATC capacity: 32 stations (standard)
Tool change time (tool-to-tool): 3 s
Max. tool length: 380 mm
Power supply: 380 V ±10%, 3-phase, 50 Hz
Power capacity: 55 kVA
Hydraulic pressure: 75 kg/cm²
Air pressure: 6 kg/cm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
