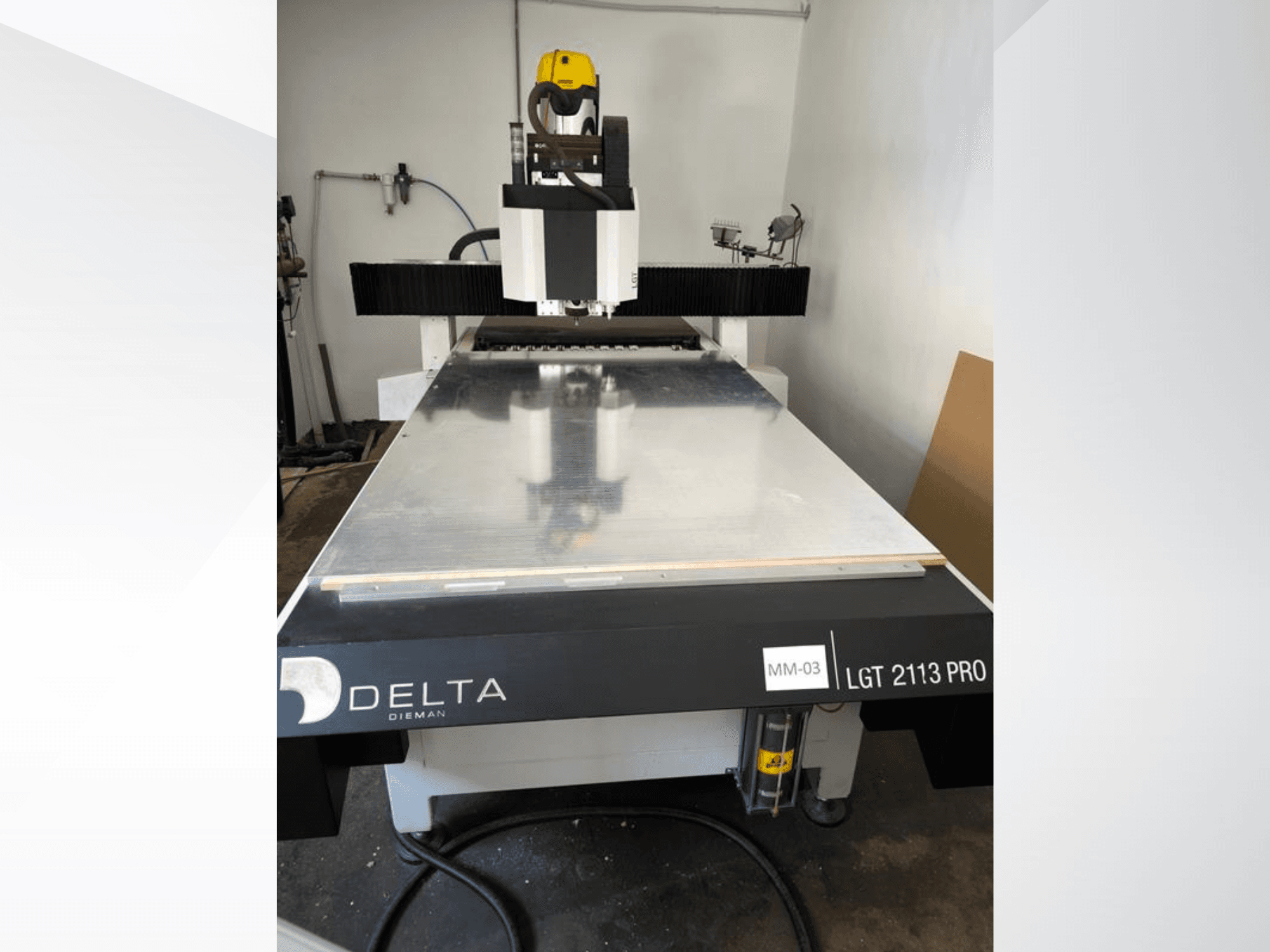

This 3-axis DELTA LGT2113 PRO gantry milling machine was manufactured in 2016. It features a working area of 2100 mm in the X-axis and 1300 mm in the Y-axis, equipped with a powerful 3.6 kW spindle capable of reaching 50,000 rpm. The machine includes a 12-position automatic tool changer and a 4-zone vacuum table, making it suitable for various milling and specialized cutting applications. If you are looking to get high-quality milling capabilities, consider the DELTA LGT2113 PRO machine we have for sale. Contact us for further details.
Overview
- brand: DELTA
- year: 2016
- MODEL: LGT2113 PRO
- application type: Milling
- Location: Hungary
- machine type: Gantry Milling Machine
- Available from: 17/07/2026
Technical Information - DELTA LGT2113 PRO
Movement
- Number of Axes: 3
- X-axis Travel: 2100 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 100 mm
Technical Specification
- Spindle Power: 3.6 kW
- Spindle Speed: 50000 RPM
Additional Information
Tool taper: HSK 25
Number of tool slots: 12-position automatic tool changer.
Main electronic connection: 380 V, 50/60 Hz
Pump drive power: 5.5 kW each
Gantry-type CNC milling machine
Italian-made machine
4-zone vacuum table
Designed for specialized industrial applications, especially for the production of tooling used in the printing industry
Also suited for a wide range of general milling operations
X and Y axes: Rack and pinion drive
Z axis: Ball screw drive
Automatic centralized lubrication system
Liquid-cooled spindle
The spindle was completely overhauled a few months ago, including bearing replacement, and is currently in excellent working condition
Integrated Blum tool measurement system with optical transmitter/receiver (probe not included)
2 vacuum pumps
Capacity: 250 m³/h each
Power supply for vacuum system: 230/400 V, 50 Hz
Windows 10 operating system
Proprietary 2.5D control software
Deltacam CAM software
17” TFT display
Dust extraction system (vacuum cleaner not included)
Oscillating knife head for precise cutting of rubber, foam and similar materials, allowing the machine to perform both milling and specialized cutting applications
Minimum Quantity Lubrication (MQL) system for improved machining performance and extended tool life
The machine is currently under power and can be inspected in operation
It is no longer fully utilized, which is the reason for its sale
The machine is in good technical condition and the recently refurbished spindle is operating flawlessly
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
