➤ Used HAAS GR-510 - Gantry Mill For Sale | gindumac.com

Show in original language

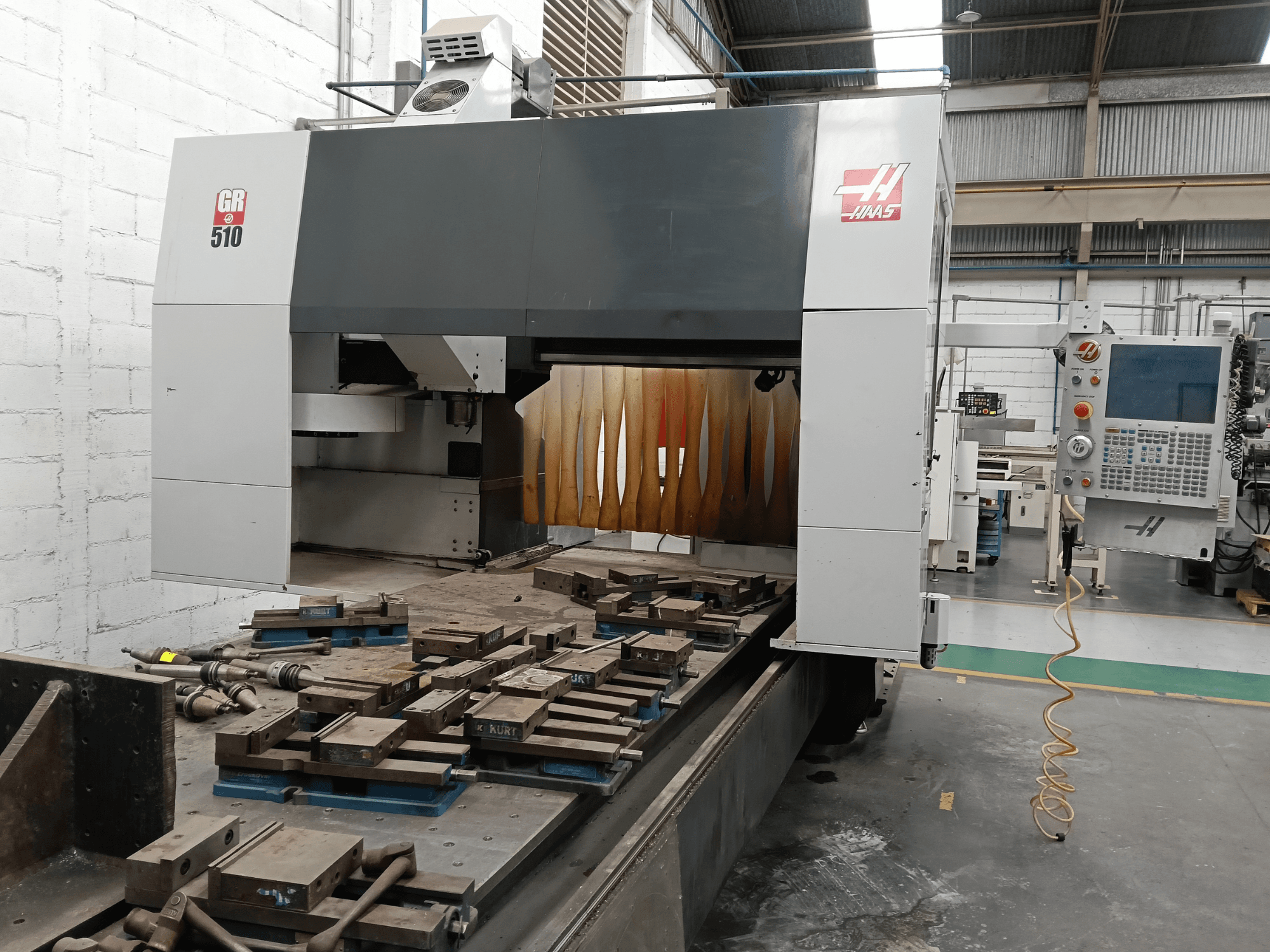

This 3-axis HAAS GR-510 gantry milling machine was manufactured in 2016. It features an impressive X-axis travel of 3,073 mm and Y-axis travel of 1,549 mm, with a robust table size of 3,099 x 1,346 mm. The machine has a maximum weight capacity of 2,722 kg on the table. If you are looking to get high-quality milling capabilities, consider the HAAS GR-510 machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2016
MODEL: GR-510
application type: Milling
Location: Mexico
machine type: Gantry Milling Machine

Technical Information - HAAS GR-510

Dimensions

Machine Weight: 8845 kg
Table Load: 2722 kg

Movement

Number of Axes: 3
X-axis Travel: 3073 mm
Y-axis Travel: 1549 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 11.2 kW
Spindle Speed: 8100 RPM

Additional Information

Distance between columns: 1,575 mm (62")
Table dimensions: 3,099 x 1,346 mm (122" x 53")
Table thickness/material: 25 mm (1") aluminum
Max torque: 65 Nm @ 1,500 rpm
Spindle taper: CT40
ATC capacity/type: 20 stations, umbrella type
Max tool diameter: 89 mm (3.5")
Rapid traverse (X/Y/Z): 20.3 / 53.3 / 27.9 m/min (800 / 2,100 / 1,100 ipm)
Max cutting feedrate: 20.3 m/min (800 ipm)
Air required: 113 L/min @ 6.9 bar (4 scfm @ 100 psi)
Electrical requirements: 440 VAC
Machine weight: approx. 6,804–8,845 kg (depending on options)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
