This 5-axis MAKA Moving Beam with 840D was manufactured in 2013. It features a Siemens Sinumerik 840D control unit and a nominal power of 55 kW. With its advanced capabilities, this gantry milling machine is ideal for precision machining tasks. If you are looking to get high-quality milling capabilities, consider the MAKA Moving Beam with 840D machine we have for sale. Contact us for further details.
Overview
- brand: MAKA
- year: 2013
- MODEL: Moving Beam with 840D
- production hours: 82340
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - MAKA Moving Beam with 840D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Dimensions
- Machine Weight: 24000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 2500 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 420 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
- 2 units available
- Control Unit: Siemens Sinumerik 840D
- Number of Axes: 5-Axis (X, Y, Z linear axes and A, C rotary/swivel axes)
- Pneumatic Operating Pressure: 6 bar
- Control Voltage: 24 V
- Nominal Power: 55 kW
- Nominal Current: 145 A
- Foundation Requirement: Reinforced concrete floor, quality EN 206, load capacity 2500 kg/m²
- Workplace Lighting: Hall lighting of 250-500 Lux required
- Ambient Operating Temperature: 10-35° Celsius
- Operating Voltage: 400 V / 50 Hz AC
- Pneumatic Connection Thread: ½"
- Pneumatic Supply Line: Clearance width min. 1"
- Compressed Air Quality: Drained and cleaned
- Compressed Air Consumption: approx. 800 NI/h uncompressed

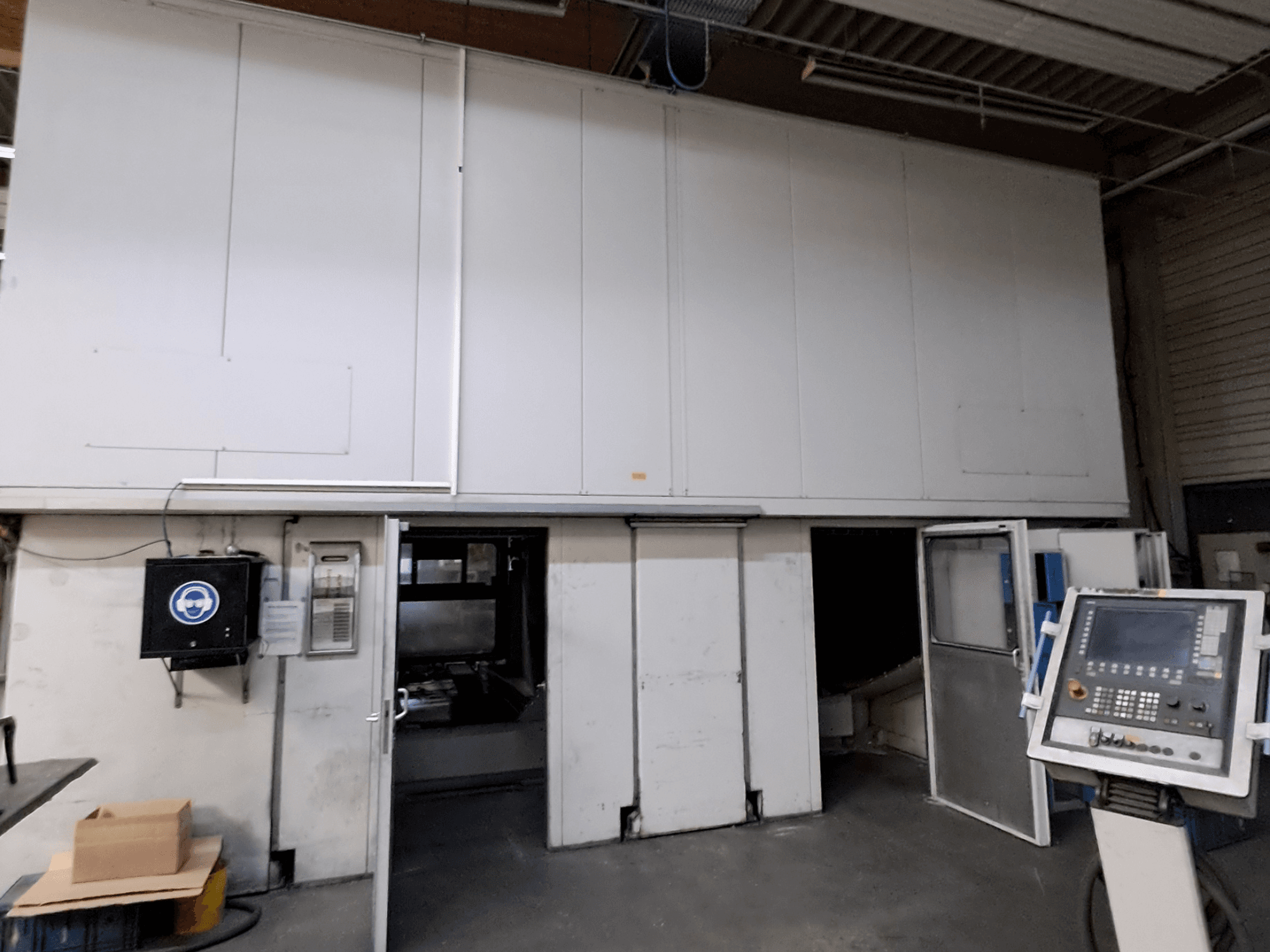

- Noise Protection: Machine completely enclosed in a soundproof booth, interior illuminated. Sound insulation max. 20 dB(A) in medium to high frequency range with booth closed.
- Safety Measures: Fully enclosed soundproof cabin, safety bumpers on the front edges of the tables, safety contact strips on the closing edges of the automatic sliding doors, limit switch protection on all sliding and hinged doors, movable partition between the tables.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
