➤ Used MIKROMAT 8V - Gantry Mill For Sale | gindumac.com

Show in original language

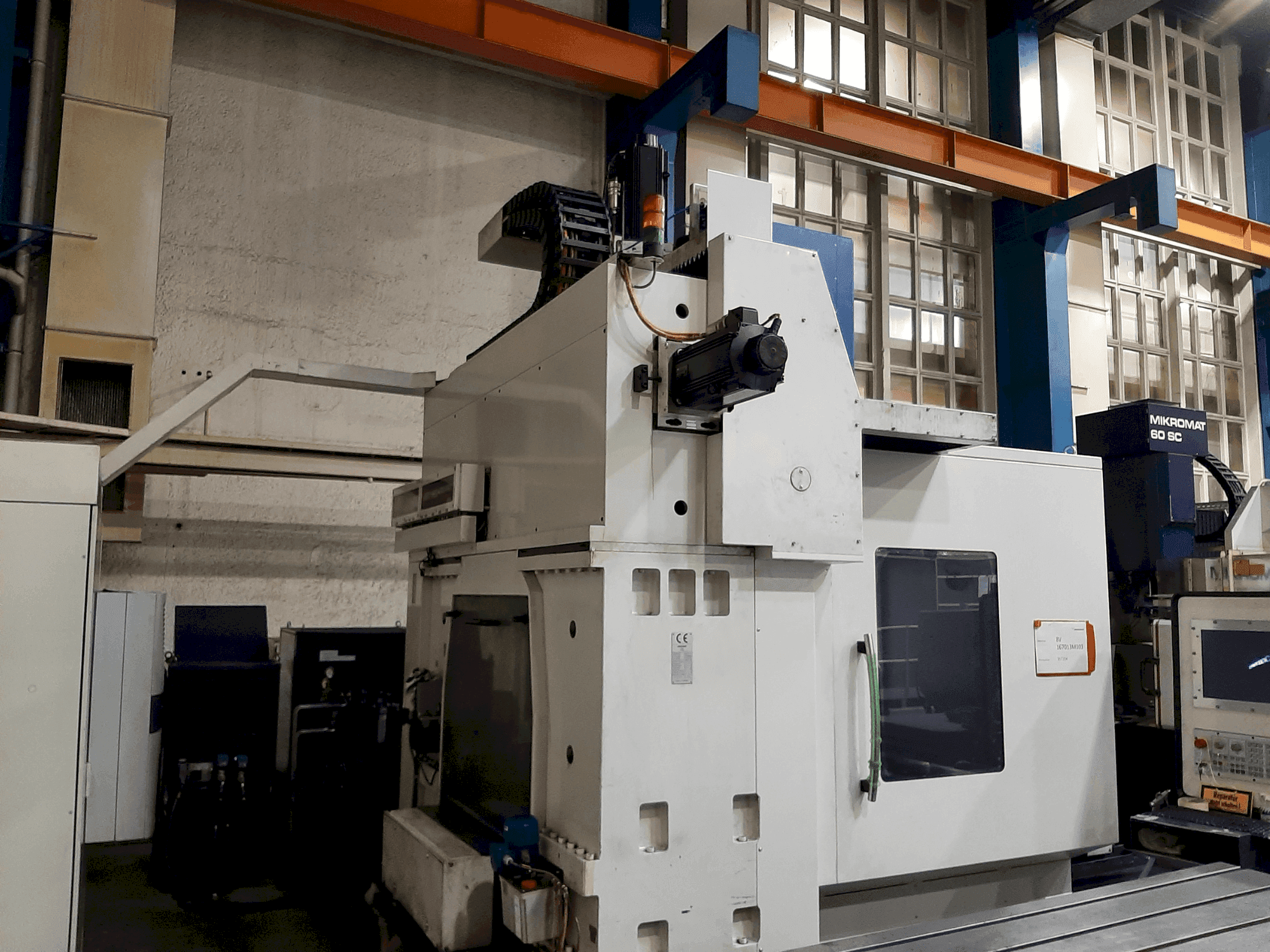

This 3-axis MIKROMAT 8V gantry milling machine was manufactured in 2000. It features an Andronic 2000 control system, automatic tool change with a 16-position ATC, and a high-speed spindle capable of up to 30,000 rpm in short bursts. Equipped with a BLUM laser system for precise tool monitoring and measurement, and a scraper belt conveyor by Knoll for efficient chip removal. Consider the opportunity to buy this MIKROMAT 8V gantry milling machine. Contact us for more information about this machine.

Overview

brand: MIKROMAT
year: 2000
MODEL: 8V
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: Andronic

Technical Information - MIKROMAT 8V

Control Unit

Brand: Andronic
Model: 2000

Main drive

Spindle speed range: 25000 rpm 1/MIN
Number of axis: 3

Additional Information

Additional equipment

Scraper belt conveyor with discharge height 1200 mm
Temperature stabilization switch cabinet with high-performance cooling unit

Machine Benefits

Technical Machine Benefits

Automatic tool change type: atc-16p
Hsk 100 spindle mount
Blum laser system for tool monitoring and measurement
Andronic 2000 control system
High-speed spindle with a maximum speed of 25000 rpm

Extra Information

Logging of measurement results via print screen Andronic 2000 control system with automatic tool change type: ATC-16P with work area protection With: 1 piece High-speed spindle Complete with torque support For automatic tool change Speed Dry running nmax Continuous operation 25,000 rpm At 10% duty cycle 30,000 rpm Reference time 1 hour Transmission ratio 1:7.5 Machine spindle mount DIN 69 893 HSK 100 1 piece Scraper belt conveyor for short-chip materials Discharge height 1,200 mm Make: Knoll 1 Logging of measurement results via print screen 1 piece BLUM laser system Tool monitoring and measurement 1 Temperature stabilization Switch cabinet with high-performance cooling unit The rotary table visible in the picture (working spindle) has been decommissioned and is not available as a rotary table.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
