MECOF - DYNAMILL 3000LES-MIL-MEC-1999-00001

Name: MECOF DYNAMILL 3000L
Brand: MECOF
SKU: ES-MIL-MEC-1999-00001
Price: 98157226 INR
Availability: InStock

Rs. 98,157,226

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MECOF DYNAMILL 3000L For Sale | gindumac.com

Show in original language

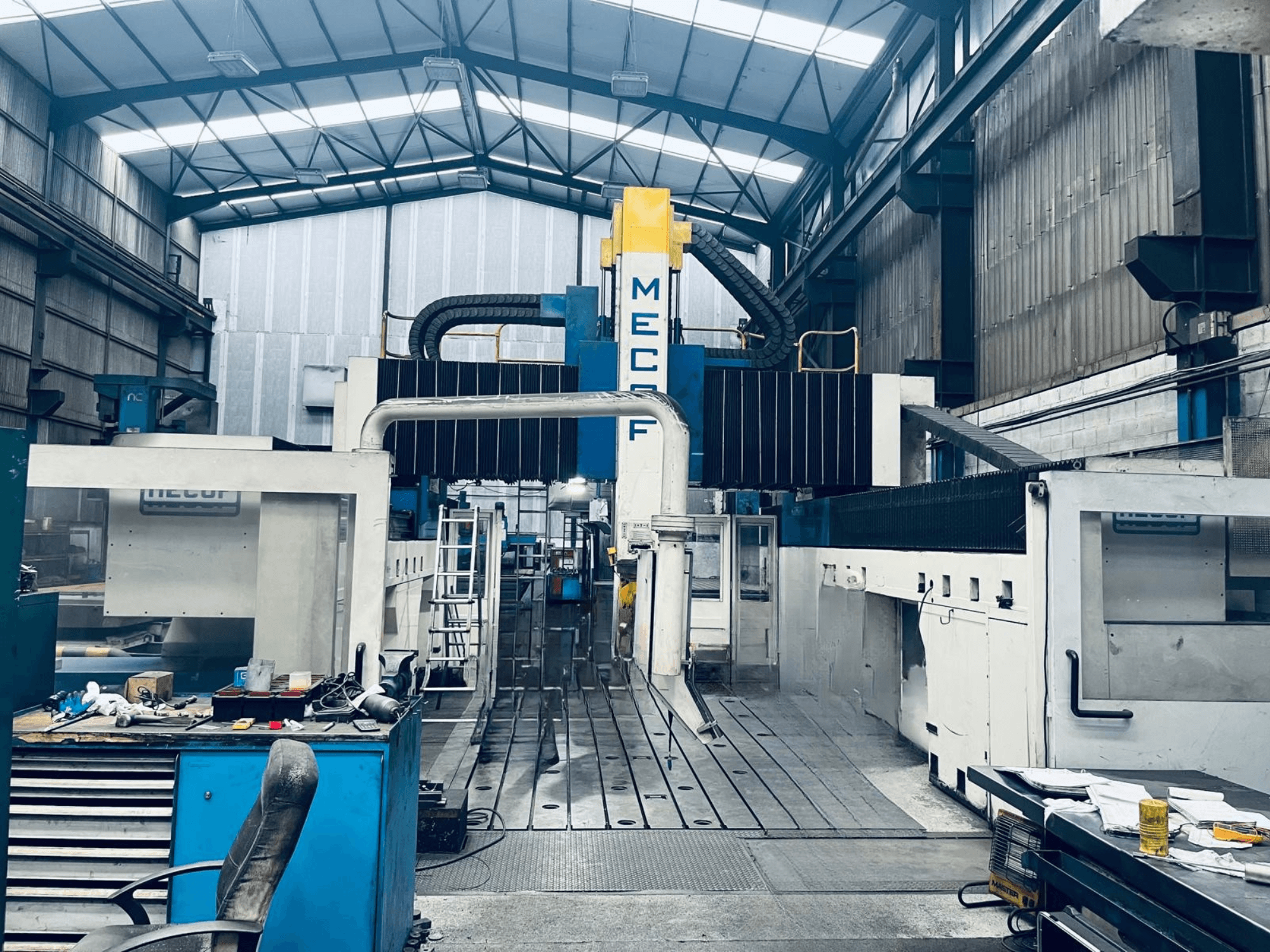

This 5-axis MECOF DYNAMILL 3000L was manufactured in 1999. It features an impressive X-axis travel of 5,500 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,500 mm. The machine is equipped with a powerful spindle taper of ISO 50 and a tool magazine capacity of 24 tools. If you are looking to get high-quality milling capabilities, consider the MECOF DYNAMILL 3000L gantry milling machine we have for sale. Contact us for further details.

Overview

brand: MECOF
year: 1999
MODEL: DYNAMILL 3000L
application type: Milling
Location: Spain
machine type: Gantry Milling Machine

Technical Information - MECOF DYNAMILL 3000L

Movement

Number of Axes: 5
X-axis Travel: 5500 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 1500 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3000 RPM
Taper Size: ISO 50
Tool Stations: 24

Additional Information

Orthogonal head: 10–3,000 rpm speed range; 22 kW power; automatic tool clamping (20,000 N clamping force)
PDFTwin 15 head (GAMFIOR electrospindle): 600–24,000 rpm speed range; 17.5 kW motor power; E18 electrospindle
Indexed positioning platform: 360 positions; ±180° rotation range; ±0.02/300 mm positioning accuracy; 45,000 Nm axial clamping force
PDFContinuous positioning platform: 360,000 positions; ±185° C-axis rotation range; 0–2,400°/min C-axis rotation speed; 2,000 Nm clamping torque

Additional equipment

Tool profile measurement device
Cart-type head magazine
BLUM radio-transmitted laser probe
Air/oil tool cooling system
MECOF High-Speed Milling system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
