AWEA - LP4025PT-MIL-AWE-2003-00002

Rs. 5,532,280
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

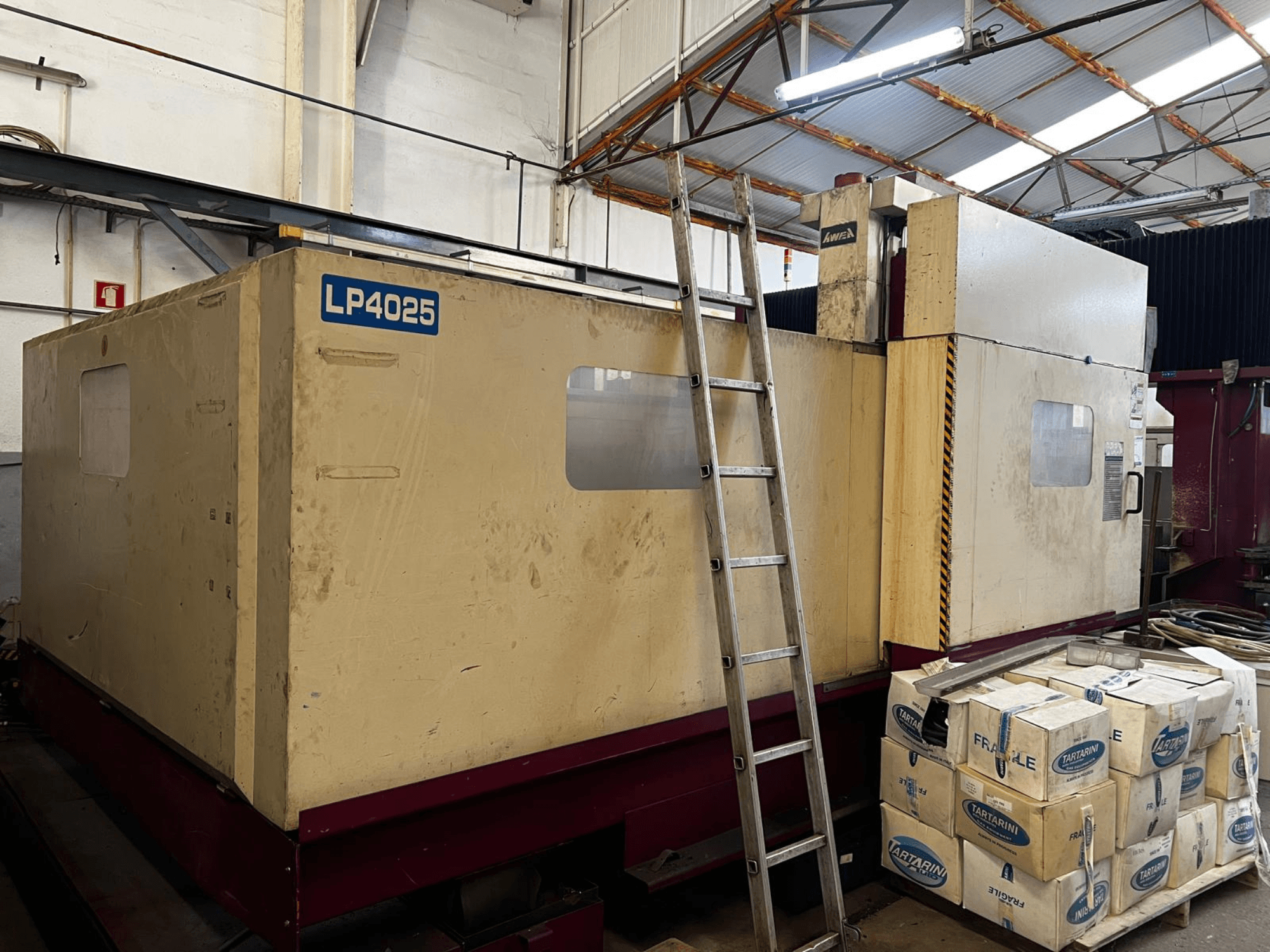

This 3-axis AWEA LP4025 gantry milling machine was manufactured in 2003. It features an impressive X-axis travel of 4,000 mm, Y-axis travel of 2,500 mm, and Z-axis travel of 760 mm. The machine includes a robust table size of 4,020 × 2,400 mm and a maximum table load of 15,000 kg. If you are looking to get high-quality milling capabilities, consider the AWEA LP4025 gantry milling machine we have for sale. Contact us for further details.

Overview

  • brand: AWEA
  • year: 2003
  • MODEL: LP4025
  • application type: Milling
  • Location: Portugal
  • machine type: Gantry Milling Machine
  • control unit brand: FANUC

Technical Information - AWEA LP4025

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Weight: 40000 kg
  • Table Load: 15000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 4000 mm
  • Y-axis Travel: 2500 mm
  • Z-axis Travel: 760 mm

Technical Specification

  • Spindle Power: 26 kW
  • Spindle Speed: 8000 RPM
  • Taper Size: BT 50
  • Tool Stations: 32

Additional Information

  • Table size: 4,020 × 2,400 mm

  • Distance between columns: 2,700 mm

  • CNC control: FANUC (depending on configuration)

  • Spindle speed: 6,000 rpm (8,000 / 10,000 rpm optional)

  • Spindle motor power: 22 / 26 kW

  • Tool magazine capacity: 32 tools (60 / 90 / 120 optional)

  • Maximum tool diameter: 127 mm

  • Maximum tool length: 350 mm

  • X-axis rapid traverse rate: 15,000 mm/min

  • Y-axis rapid traverse rate: 15,000 mm/min

  • Z-axis rapid traverse rate: 15,000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
