- ➤ Used HARTFORD Infinity HSA-2215AD | Gantry Mill For Sale

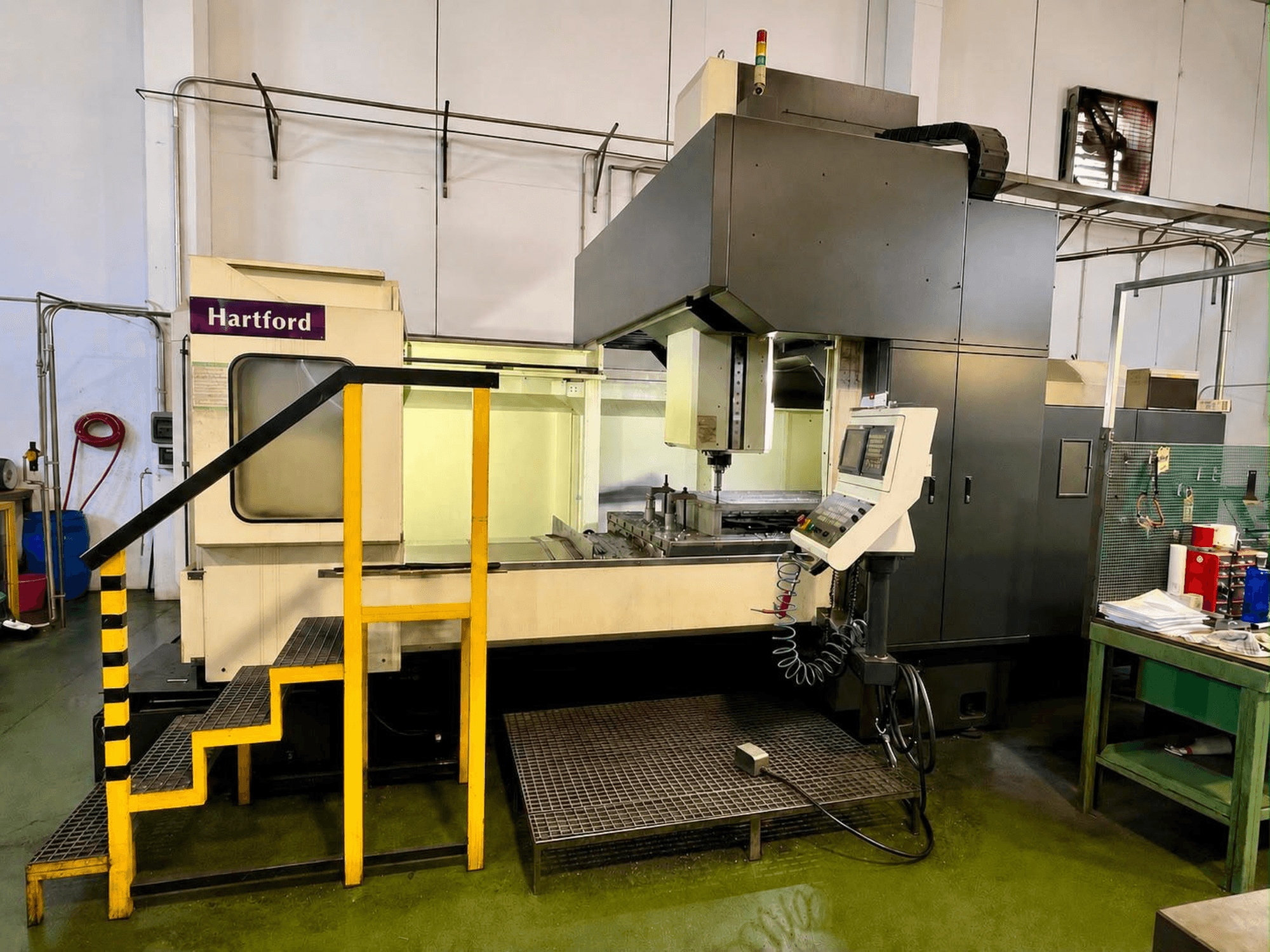

This 3-axis HARTFORD Infinity HSA-2215AD gantry milling machine was manufactured in 2007. It features an impressive X-axis travel of 2,000 mm, Y-axis travel of 1,500 mm, and Z-axis travel of 780 mm. The machine includes a robust table size of 2,200 x 1,400 mm and a maximum table load of 6,000 kg. If you are looking to get high-quality milling capabilities, consider the HARTFORD Infinity HSA-2215AD machine we have for sale. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2007
- MODEL: Infinity HSA-2215AD
- application type: Milling
- Location: Spain
- machine type: Gantry Milling Machine
Technical Information - HARTFORD Infinity HSA-2215AD
Dimensions
- Table Load: 6000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 780 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Power: 22 kW
- Spindle Speed: 6000 RPM
- Taper Size: ISO 50
- Tool Stations: 32
Additional Information
Distance between columns: 1,700 mm
Spindle nose to table: 200 – 980 mm
Table
Size (X × Y): 2,200 × 1,400 mm
T-slots: 22 mm × 9 × 150 mm
Spindle & Drive
Taper: BBT-50 / ISO-50
Speed: 6,000 rpm (gearhead) / 8,000–10,000 rpm (direct drive optional)
Motor power: 18.5 / 22 kW (continuous / 30 min)
Feed rates
Rapid (X / Y / Z): 20 / 20 / 15 m/min
Cutting feed: 1 – 10,000 mm/min
ATC
Tool magazine: 32 tools (optional 40 / 60)
Max tool diameter: 125 mm (215 mm without adjacent tools)
Max tool length: 350 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
