EDEL - Koordimatic XL 4020PL-MIL-EDE-2003-00001

Rs. 6,653,017
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

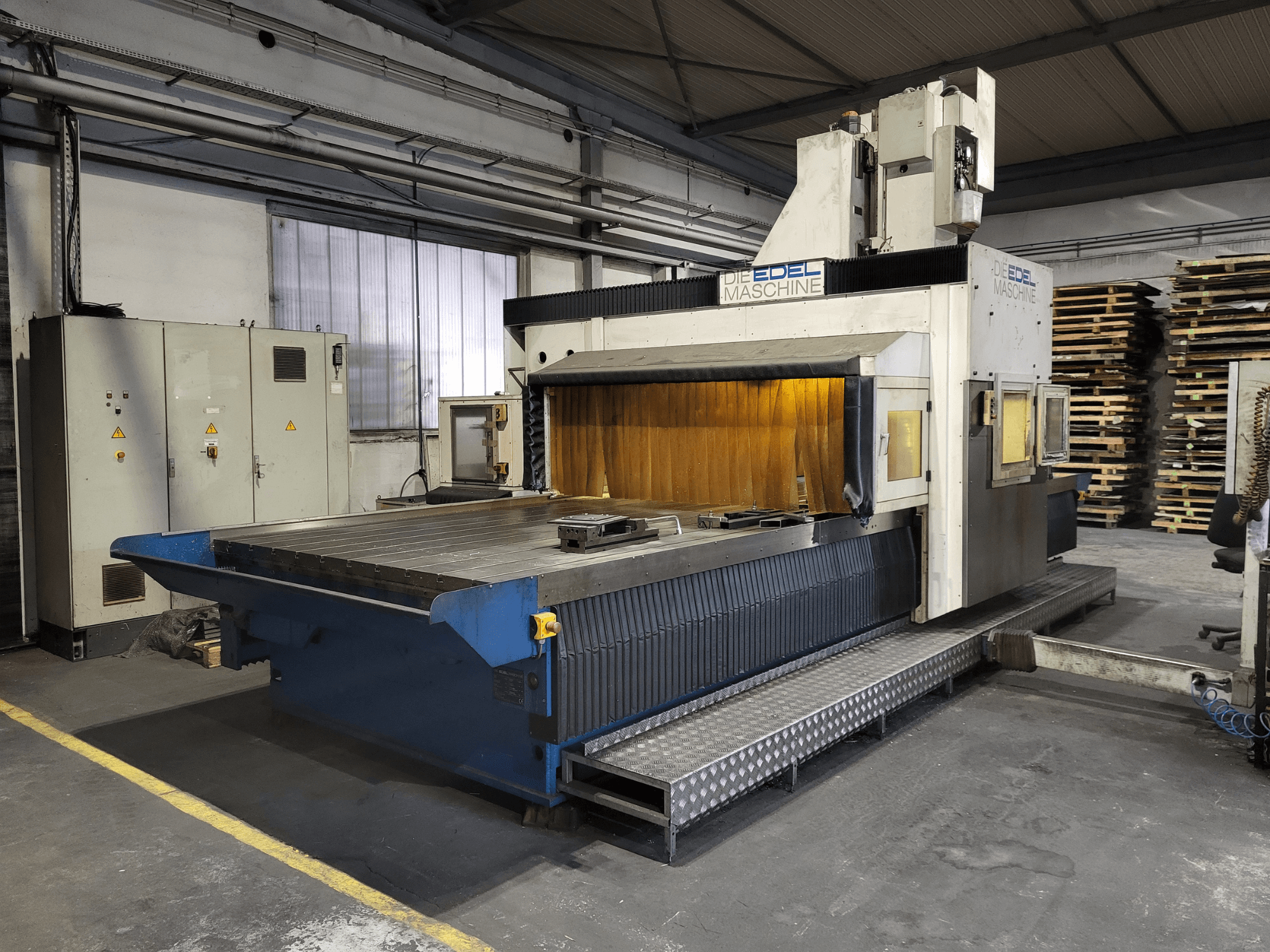

This 4-axis EDEL Koordimatic XL 4020 gantry milling machine was manufactured in 2003. It features a substantial working area of 4000 x 2000 mm and a maximum spindle speed of 10,000 rpm. The machine is equipped with a powerful 30 kW electrospindle and has a travel distance of 760 mm in the Z-axis. If you are looking to get high-quality milling capabilities, consider the EDEL Koordimatic XL 4020 machine we have for sale. Contact us for further details.

Overview

  • brand: EDEL
  • year: 2003
  • MODEL: Koordimatic XL 4020
  • application type: Milling
  • Location: Poland
  • machine type: Gantry Milling Machine
  • control unit brand: FANUC

Technical Information - EDEL Koordimatic XL 4020

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 18i-MB

Dimensions

  • Machine Weight: 26000 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 4000 mm
  • Y-axis Travel: 2000 mm
  • Z-axis Travel: 760 mm

Technical Specification

  • Max. Tool Weight: 15 kg
  • Spindle Power: 30 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 50

Additional Information

  • Condition: Refurbished (used)

  • Functionality: Limited functionality

  • Power: 30 kW (40.79 HP); electrospindle after full regeneration (new bearings and clamping system)

  • Working area: 4000 x 2000 mm

  • Rapid traverse X/Y/Z: 20 / 20 / 15 m/min

  • Rotational speed (max): 300 rpm

  • Tool magazine: 36 positions (damaged – no changer arm)

  • Distance table to spindle center: 150 mm

  • Mount diameter: 50 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
