Wenzel - LH 87DE-MEA-WEN-2018-00001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Wenzel LH 87 - 2018 - CMM For Sale | gindumac.com

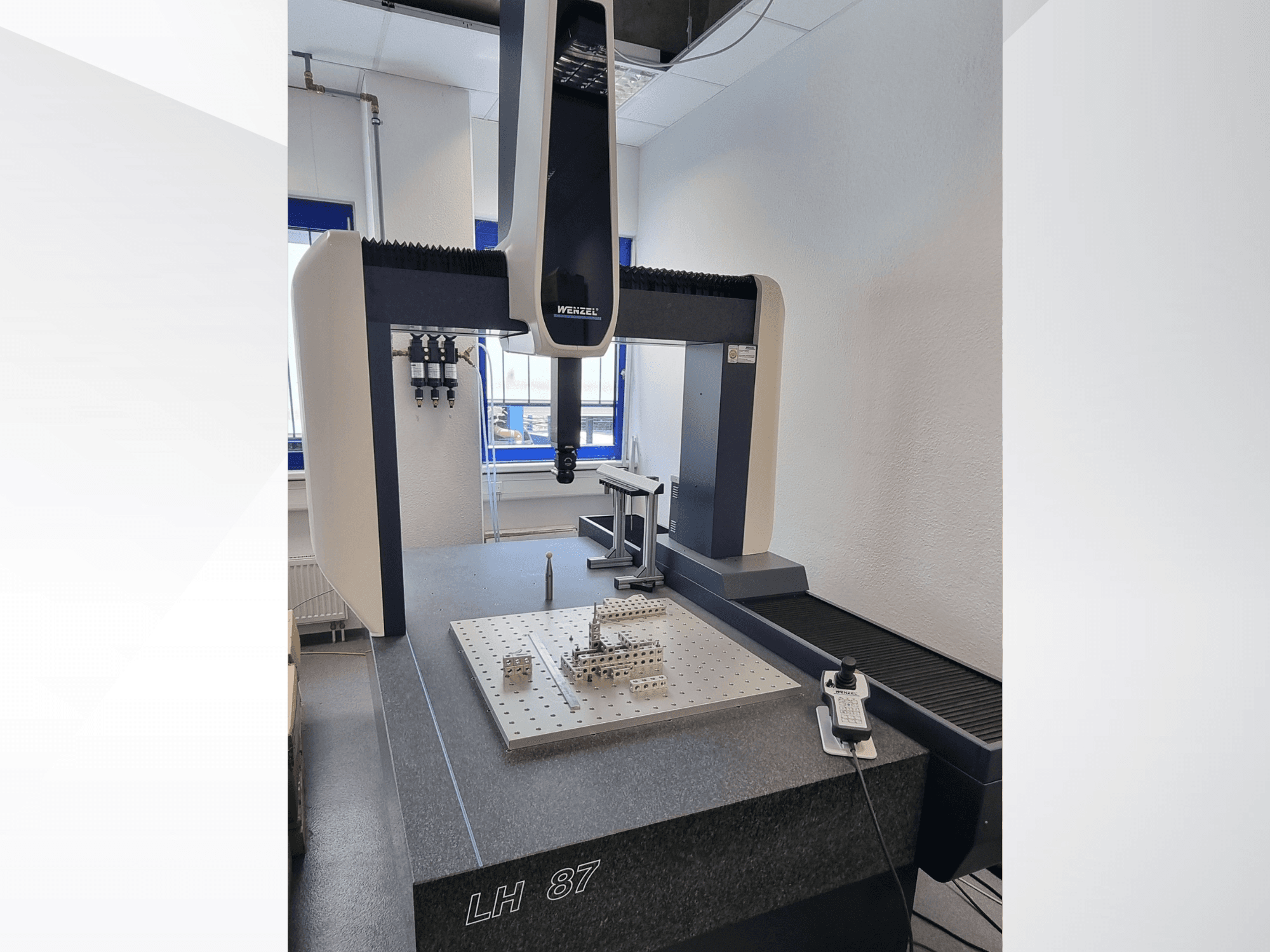

This 3-axis Wenzel LH 87 CMM machine was manufactured in 2018. It features a measuring range of 800 mm in the X-axis, 1,500 mm in the Y-axis, and 700 mm in the Z-axis. The machine is equipped with advanced software modules, including WM Quartis GEO and WM Quartis SCAN, ensuring high-quality measurement capabilities. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Wenzel
- year: 2018
- MODEL: LH 87
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Wenzel LH 87
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 700 mm
Additional Information
Software: WM Quartis R2021-2
Control Unit Model: WPC 2040
Control Type: Type 1
Control Software Version: 31.46
Controller Date: 05.07.2018
PMAC Version: 1.945
Probe Head: Renishaw PH10M-PLUS
Scanning Probe: Renishaw SP25M
Probe Change Rack: Renishaw FCR25
Probe Module: SP25M
Hand Controller: WENZEL HT400
CAD Interface: STEP
CAD Interface: IGES
CAD Interface: VDA-FS
Software Module: WM Quartis GEO
Software Module: WM Quartis SCAN
Software Module: WM Quartis SURF
Software Module: WM Quartis CURVE
Software Module: WM Quartis EMD
Software Module: WM Quartis IMPEX-ELEM
Software Module: WM Quartis PRC
Calibration Certificate: Available
Calibration Label: 2024
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
