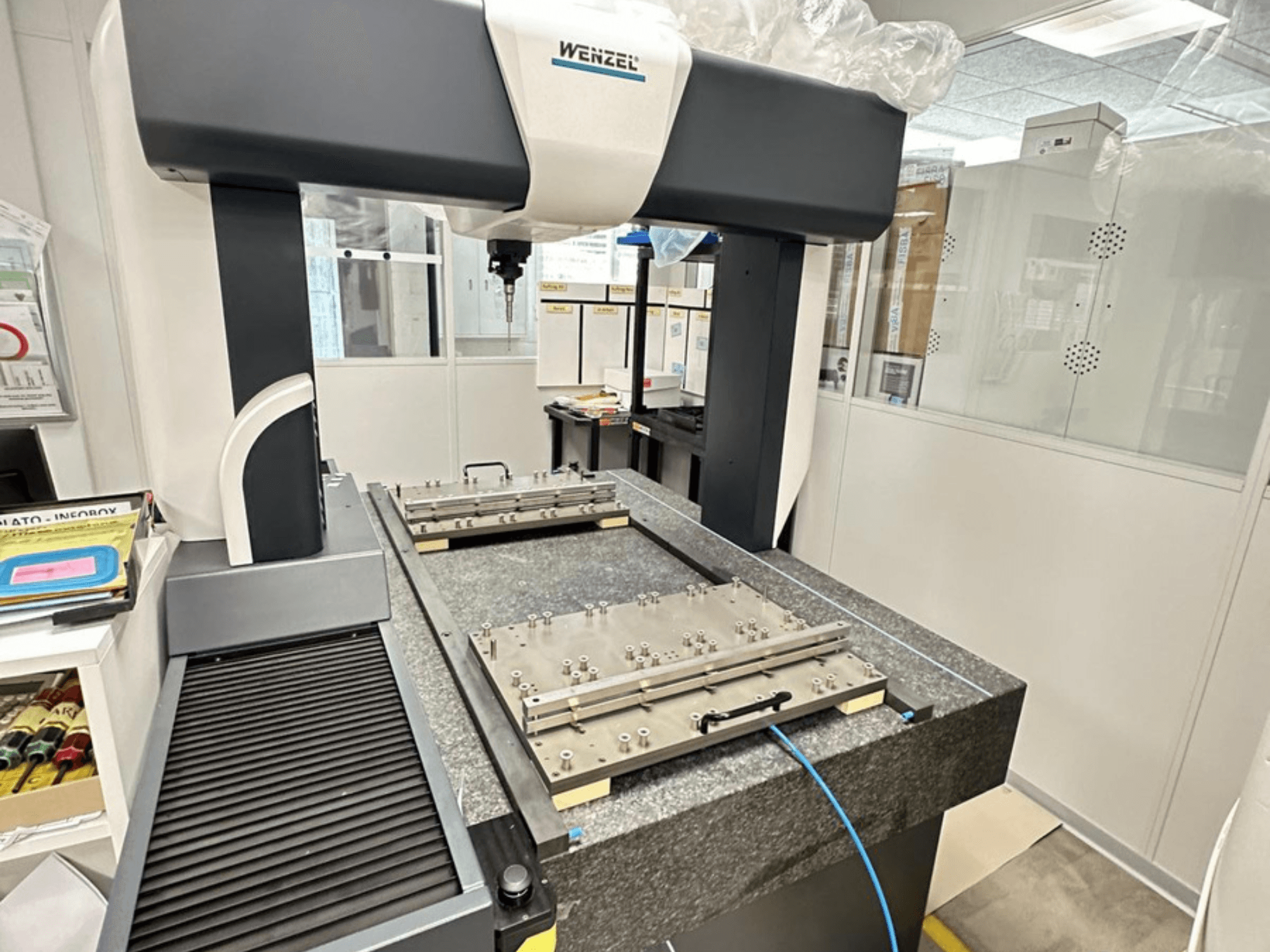

This 3-axis Wenzel LH 65 was manufactured in 2018. It features a measuring range of 650 × 750 × 500 mm and includes a Renishaw PH6M probe head with a TP200 probe. The machine is equipped with online temperature compensation and active vibration damping for enhanced precision. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 65 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Wenzel
- year: 2018
- MODEL: LH 65
- application type: Measuring
- Location: Austria
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Wenzel LH 65
Movement
- Number of Axes: 3
- X-axis Travel: 650 mm
- Y-axis Travel: 750 mm
- Z-axis Travel: 500 mm
Additional Information
Technical Data
Measuring Range (X × Y × Z): 650 × 750 × 500 mm
Accuracy Standard: DIN EN ISO 10360
Accuracy Class: Premium
Temperature Range: 18 °C – 22 °C
Maximum Temperature Gradient: 1 K/h
Maximum Temperature Gradient: 1 K/m
Maximum Temperature Gradient: 2 K/day
Probe Head: Renishaw PH6M
Probe: Renishaw TP200
Probe Module: Standard Force (SF)
Probe Interface: PI200-3
Probe Ball Diameter: Ø 4 mm
Probe Extension: 50 mm
Probe Extension: 100 mm
Adapter: PAA1
PFTU, MPE: 1.6 µm
E0, MPE: 1.6 + L/350 µm (L in mm)
E150, MPE: 1.6 + L/350 µm (L in mm)
R0, MPL: 1.6 µm
Standard Module
Stylus: 4 × <30 mm
Base Plate: Natural Hard Stone (Granite)
Incremental Measuring System
Online Temperature Compensation
Active Vibration Damping
Control Unit: WENZEL Evaluation System CNC
Hand Controller: HT400
Evaluation Station
WENZEL PC System
German Keyboard
Fujitsu TFT Monitor 24" E24T-7 Pro
HP DeskJet A4 Inkjet Printer
WENZEL Machine Documentation (USB)
Metrokey USB (Dongle)
WM | QUARTIS GEO
WM | QUARTIS STEP
Ethernet Interface
RS232 Interface
Readerhead Input (5V TTL)
Probe Input (5V TTL)
Motor Connections
Emergency Stop Interface
Additional Equipment
Renishaw PH6M multiwire probe head with automatic coupling
Renishaw TP200 probe with SF module
PI200-3 interface
Ø 4 mm stylus
50 mm stylus extension
100 mm stylus extension
PAA1 adapter
Connection cable
1/3 HU mounting bracket
Wooden storage case
18-piece stylus kit
M2 rotary joint
M2 stylus holder
Hex keys
Pin wrenches
Type B ceramic reference sphere Ø 25 mm
Sphere holder
Calibration certificate for reference sphere
70 mm extension
Microfilter for oil, water and particle filtration
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
