➤ Used Mitutoyo Crysta-Plus M7106 For Sale | gindumac.com

Show in original language

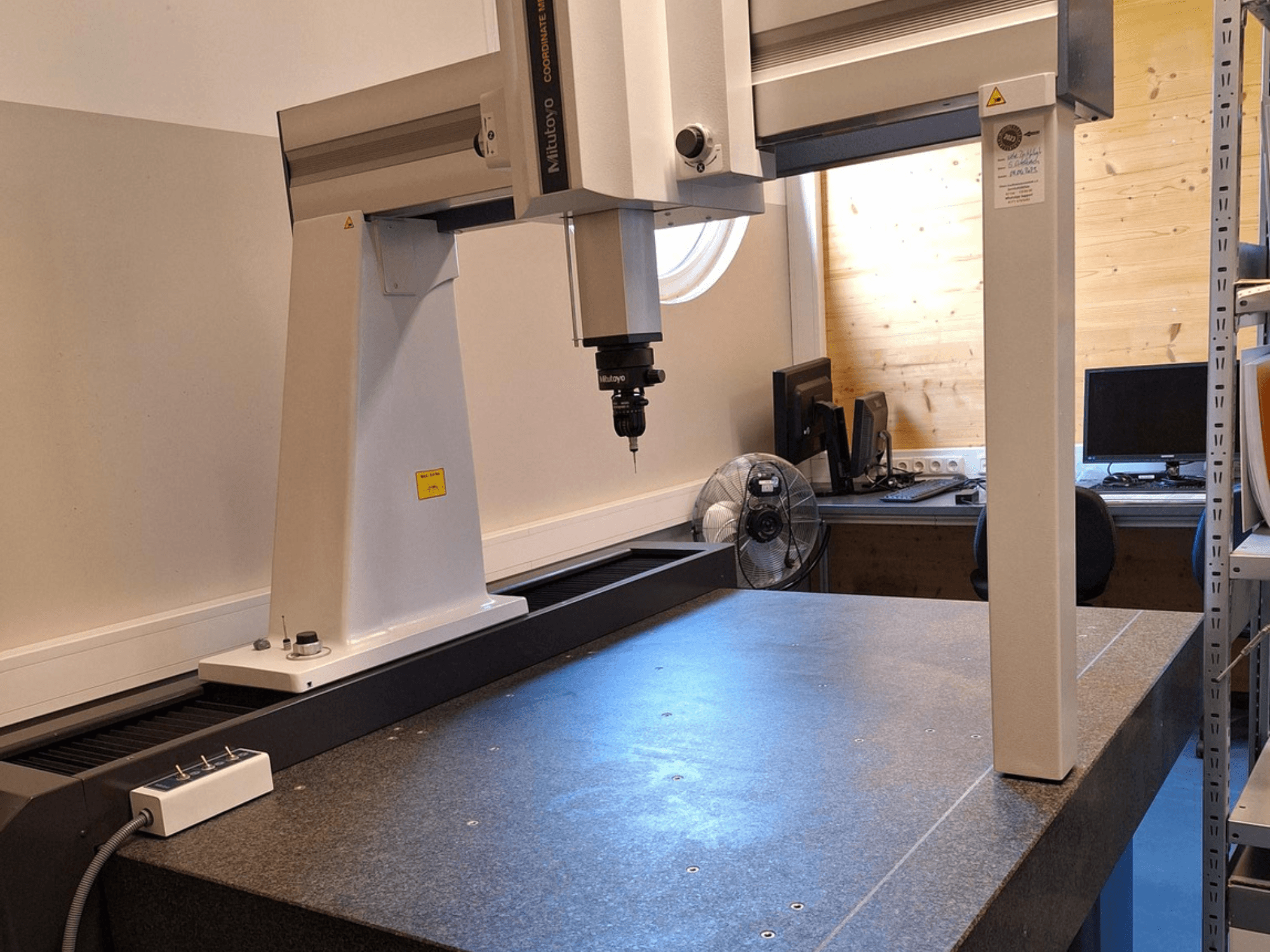

This 3-axis Mitutoyo Crysta-Plus M7106 was manufactured in 2017. It features a measuring range of 700 x 1,000 x 600 mm and is in near-mint condition with very low operating hours. The machine includes a Renishaw probe head and is regularly serviced. If you are looking to get high-quality 3D measurement capabilities, consider the Mitutoyo Crysta-Plus M7106 gantry robot we have for sale. Contact us for further details.

Overview

brand: Mitutoyo
year: 2017
MODEL: Crysta-Plus M7106
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo Crysta-Plus M7106

Movement

Number of Axes: 3

Technical Specification

Max. Handling Weight: 1000 kg

Additional Information

- Measuring Range (X / Y / Z): 700 x 1,000 x 600 mm

- Operating Hours: Very low (rarely used)

- Technical Condition: Near-mint / Exceptionally good condition

- Measuring Range (X / Y / Z): 700 x 1000 x 600 mm

- Maximum Spatial Diagonal Tested: Up to 1515 mm

- Controller Type: UD1

- Software Version: MCOSMOS-1 v4.2R1

- Probe Head: Renishaw MH20i

- Probe: Renishaw TP20

- Probe Module: Standard Force (SF)

- Stylus Configuration: Length 20 mm, Stylus ball diameter 3.9924 mm

- Maximum Permissible Length Measurement Error (EL, MPE): 4.5 + 4.5 * L/1000 µm (where L is in mm)

- Single Stylus Form Error (PForm.Sph.1x25:SS:Tact): 3.6 µm (MPE: 4.5 µm)

- Last Calibration Date: 04.04.2023

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
