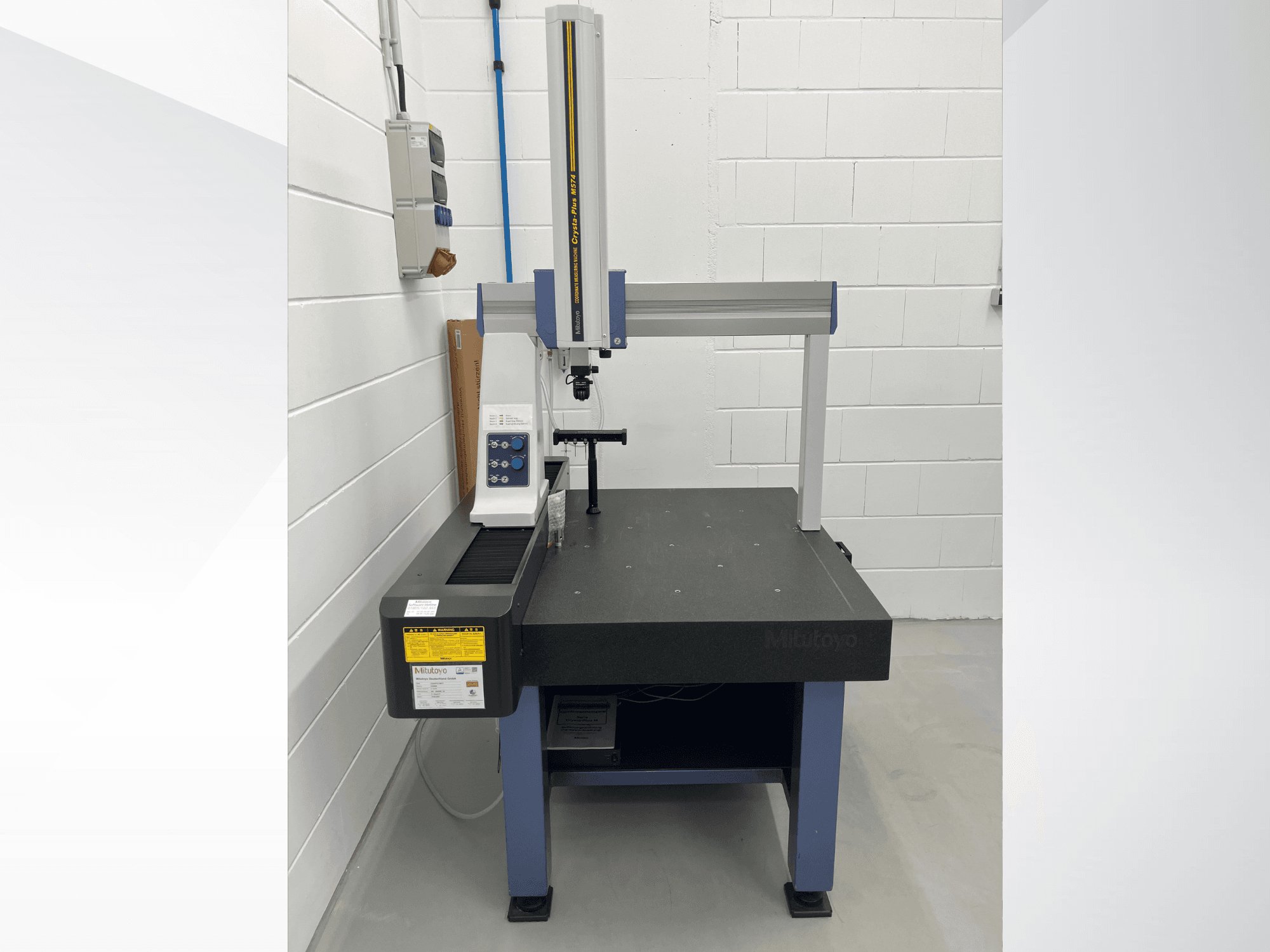

This 3-axis Mitutoyo Crysta-Plus M574 was manufactured in 2010. It features a measuring range of 500 × 700 × 400 mm and includes a Renishaw MH20i probe head with a TP20 standard force probe system. The machine is equipped with a granite measuring table and multiple styli for enhanced versatility. If you are looking to get high-quality coordinate measuring capabilities, consider the Mitutoyo Crysta-Plus M574 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Mitutoyo
- year: 2010
- MODEL: Crysta-Plus M574
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Mitutoyo Crysta-Plus M574
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 400 mm
Additional Information
Technical Data
Measuring Range (X × Y × Z): 500 × 700 × 400 mm
Probe Head: Renishaw MH20i
Probe System: TP20 Standard Force
Probe Module: Standard Force
Scale Resolution: 0.0001 mm (0.1 µm)
Probe Ball Diameter: Ø 4 mm
Stylus Length: 20 mm
Operating Temperature: +5 °C to +40 °C
Length Measuring Error (E0, MPE): (5 + 6L/1000) µm
Single Stylus Form Error (PForm, MPE): 6 µm
Test Sphere Diameter: Ø 3.994 mm
Automatic Temperature Compensation: No
Calibration Date: 10 March 2026
Additional Equipment
Renishaw MH20i indexing probe head
TP20 probe system
Stylus rack
Multiple styli
Granite measuring table
Machine stand
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
