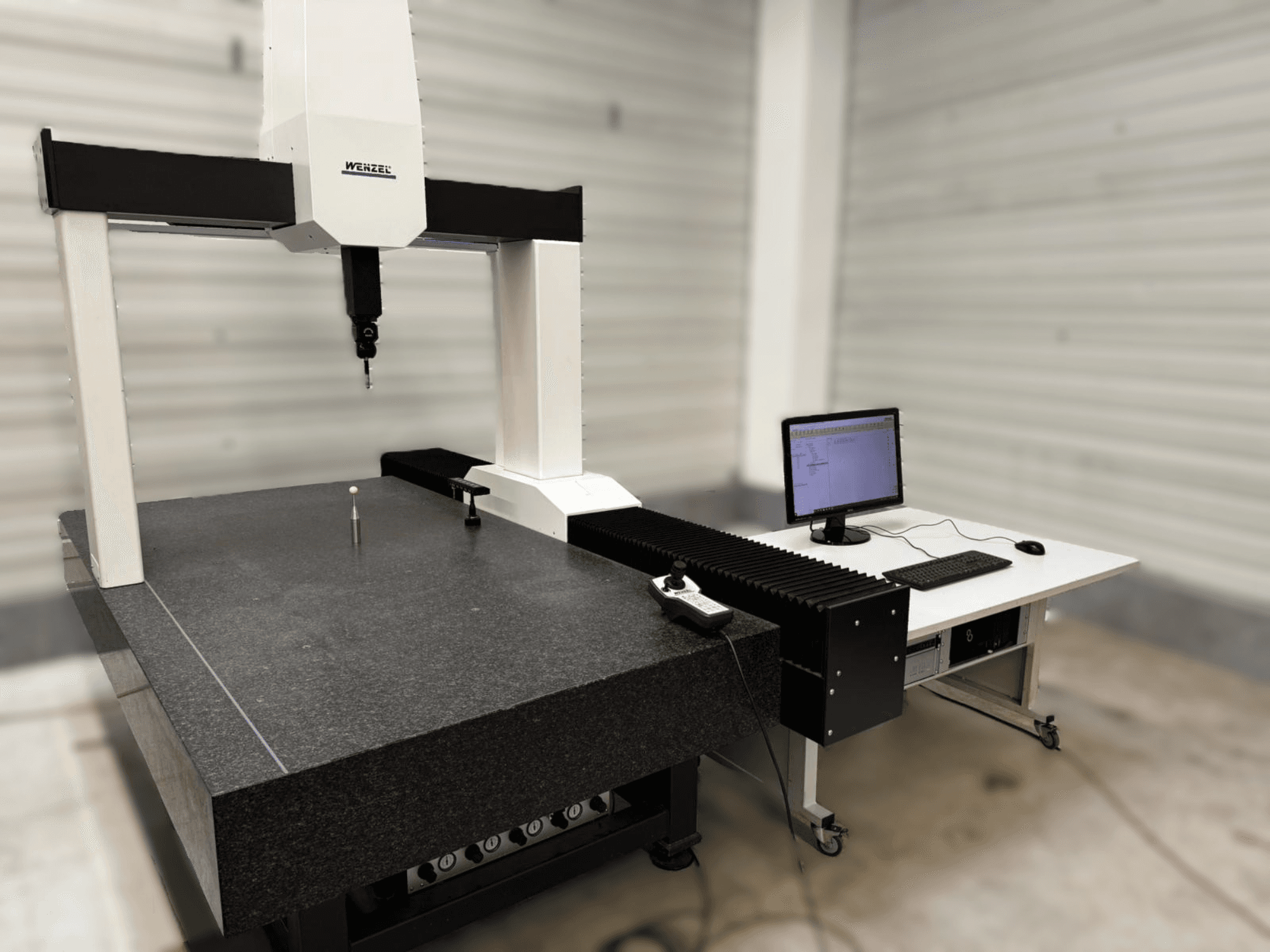

Wenzel XO 87 CMM in a front view, featuring a measurement probe and a granite table with a computer setup beside it.
Wenzel XO 87 CMM in a front view, featuring a measurement probe and a granite table with a computer setup beside it.

Wenzel - XO 87DE-MEA-WEN-2009-00004

Rs. 5,656,193
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Wenzel XO 87 CMM machine was manufactured in 2009. It features a measuring range of 800 mm in the X-axis, 1500 mm in the Y-axis, and 700 mm in the Z-axis. The machine includes a granite structure base, air bearing guideways, and a current PC system with Windows 11. If you are looking to get high-quality measurement capabilities, consider the Wenzel XO 87 CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Wenzel
  • year: 2009
  • MODEL: XO 87
  • application type: Measuring
  • Location: Germany
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Wenzel XO 87

Movement

  • Number of Axes: 5
  • X-axis Travel: 500 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 700 mm

Additional Information

  • Condition: Completely checked and retrofitted

  • Structure: Granite base, air bearing guideways, portal design

  • Applications: Quality assurance; series production

  • Status: Machine currently powered and available for demonstration

  • Maximum space diagonal: 4660 mm

  • Measurement uncertainty: E0 = 2.8 + L/300 µm

  • Performance verification: Determination of length measurement uncertainty, probing uncertainty, and repeatability range

  • Controller: WPC2040 Basic

  • Installed software: WM Quartis R2026-1

  • Probe system: Renishaw TP20 with 1× TP20 Standard Force Module

  • Probe head: Renishaw PH10T

  • Interfaces: PHC10-3 PLUS (probe head interface), PI200 Combi (probe interface)

Additional equipment

  • PC system (Windows 11, compliant with current Wenzel requirements)

  • 2× 24-inch monitors (new)

  • Mouse and keyboard

  • Printer

  • Joystick HT400

  • Probe change rack MCR20 (empty/unpopulated)

  • Stylus kit M2

  • Optional upgrade: Renishaw SP25M probe system (with additional hardware and service included)

  • Additional software modules available on request

  • Custom accessories and custom fixturing systems available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
