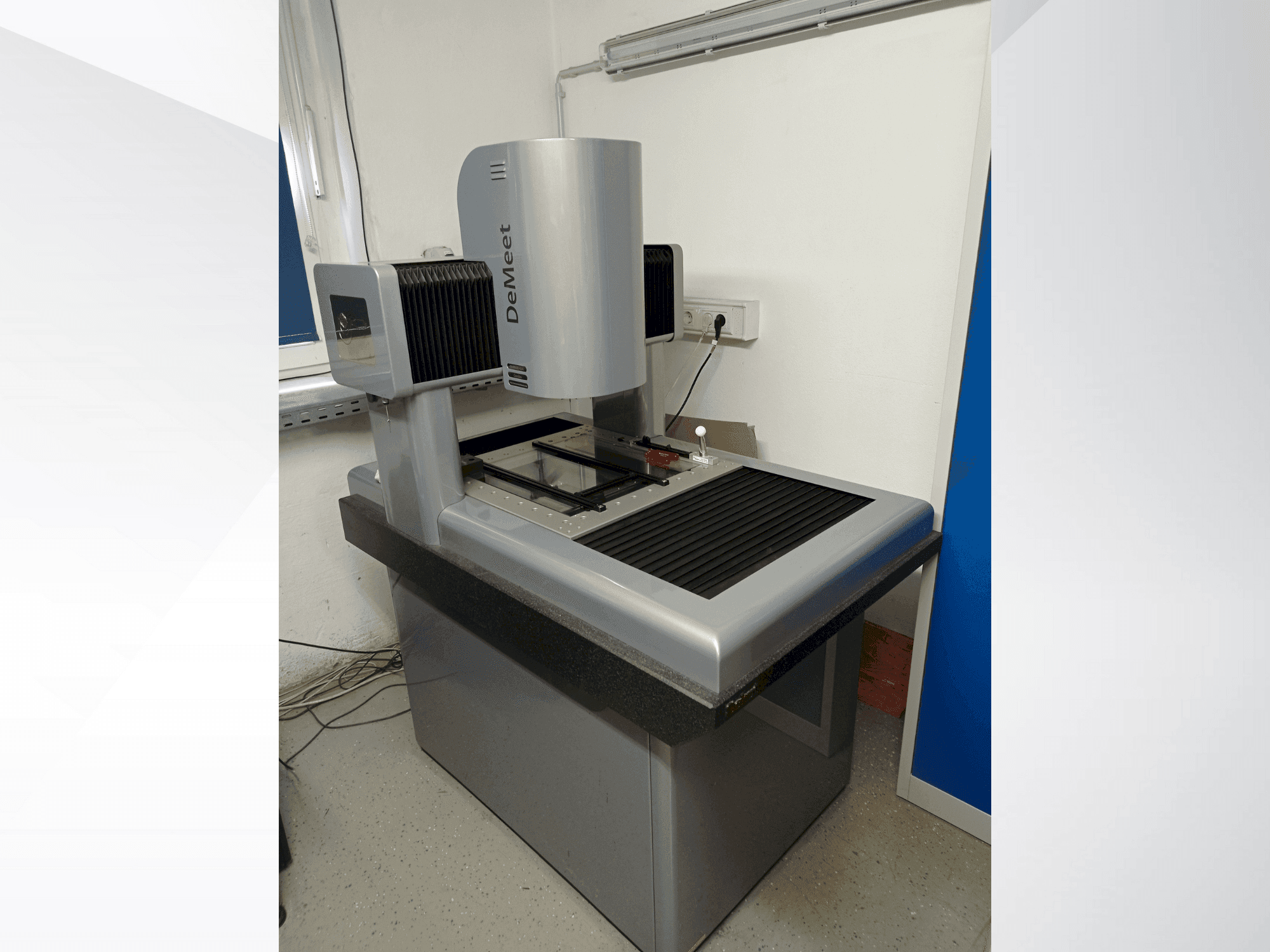

SCHUT - DeMeet 404DE-MEA-SCH-2017-00001

- Measuring table (mm): x560, y584

- Max measuring table load (kg): 50

- Video System: DeMeet Sony Sensor Camera

- Telecentric Lenses Options:

- Nikon: 3.0x (Options: 1.0x, 5.0x, 10.0x)

- Leica-Design: 2.0x (Options: 1.0x, 5.0x, 10.0x)

- Mitutoyo: 3.0x (Options: 1.0x, 5.0x, 10.0x)

- Ring Illumination: 3 rings, 16 segments, 48 cells (adjustable)

- Transmitted & Coaxial Light: Adjustable

- Touch Probe System: Renishaw TP20 (Combo version)

- Construction: Fixed bridge with granite base plate DIN 876/00

- Structure: Extremely low-stress, surface-ground cast iron

- Measuring Table Material: Nickel-plated steel, low-stress

- Linear Guides: THK linear guides

- Linear Encoder: Renishaw TONiC linear encoder

- Drive System: Faulhaber DC servo motors

- Control / Operation: Motorized Joystick / CNC

- Measuring Range: X = 400 mm, Y = 400 mm, Z = 200 mm

- Measuring Table Dimensions: X = 560 mm, Y = 584 mm

- Max. Table Load Capacity: 50 kg

- Machine Dimensions (W x L x H): 870 mm x 1245 mm x 1580 mm

- Machine Weight: 700 kg

- Resolution: 0.1 µm

- Max. Travel Speed: X/Y = 250 mm/s, Z = 55 mm/s

- Max. Acceleration: X/Y/Z = 500 mm/s²

- Standard Accuracy (L in mm):

- Video Execution: X/Y/Z 3.9 + L/150 µm (XY 4.5 + L/150 µm)

- Combo Execution: X/Y/Z 3.9 + L/150 µm (XYZ 4.9 + L/150 µm)

- High Accuracy (L in mm):

- Video Execution: X/Y/Z 2.9 + L/200 µm (XY 3.5 + L/200 µm)

- Combo Execution: X/Y/Z 2.9 + L/200 µm (XYZ 3.9 + L/200 µm)

- Optional Accuracy (L in mm):

- Video Execution: X/Y/Z 1.9 + L/250 µm (XY 2.5 + L/250 µm)

- Combo Execution: X/Y/Z 1.9 + L/250 µm (XYZ 2.9 + L/250 µm)

- Power Voltage: 90 - 120 V / 210 - 240 V (50 - 60 Hz)

- Power Consumption: 400 VA

- Operating Temperature Range: 15 °C to 35 °C

- Nominal Measuring Temperature: 20 °C ± 0.5 °C

- Relative Humidity Range: 40 % - 70 % (non-condensing)
