Hexagon - Optiv Performance 322DE-MEA-HEX-2019-00001
Rs. 5,318,867
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hexagon Optiv Performance 322 | CMM For Sale
Show in original language

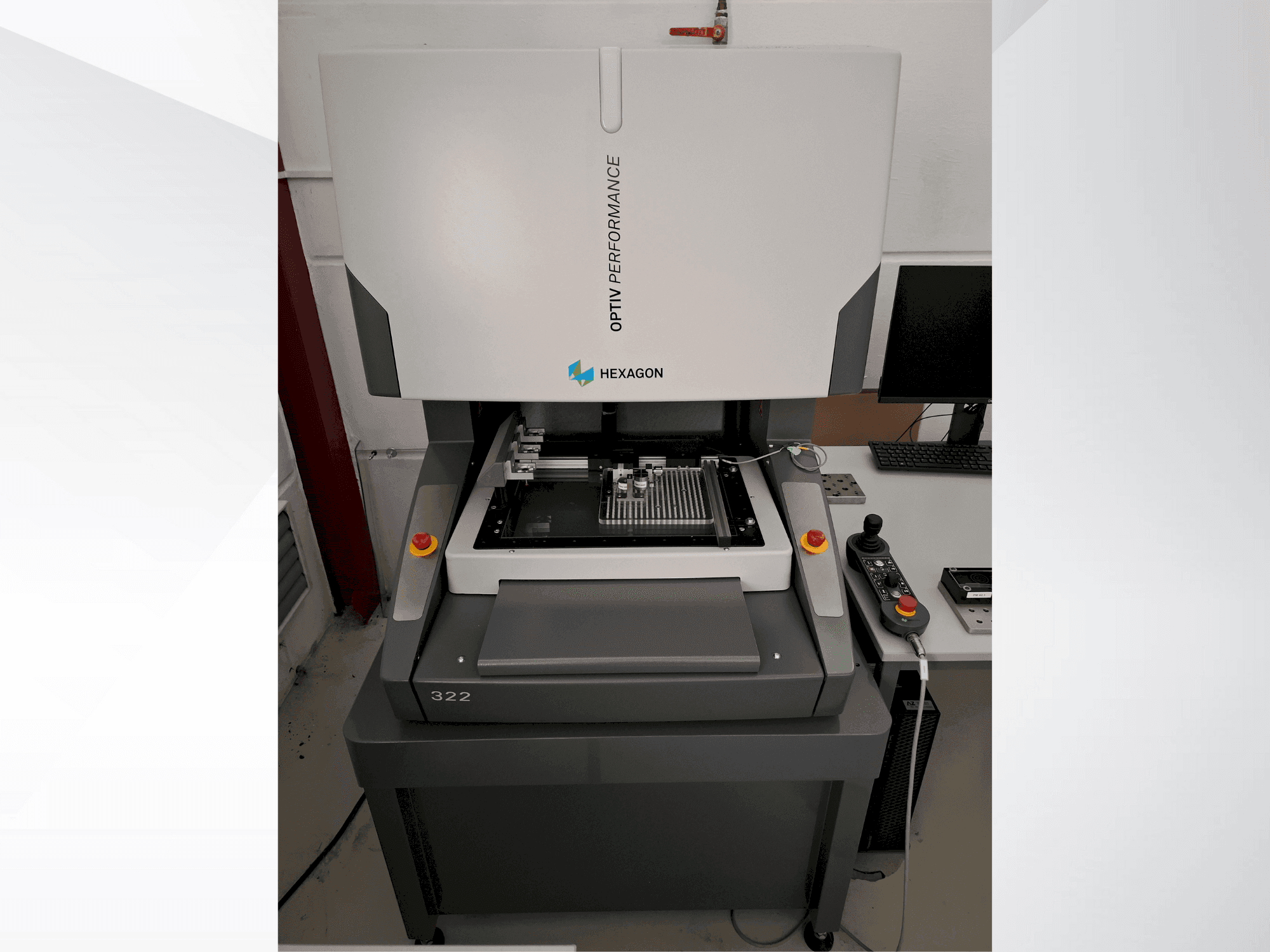

This 3-axis Hexagon Optiv Performance 322 was manufactured in 2019. Ideal for precise measurements, this CMM machine represents a reliable solution for enhancing quality control processes. Consider the opportunity to buy this Hexagon Optiv Performance 322 CMM machine. Contact us for more information.
Overview
- brand: Hexagon
- year: 2019
- MODEL: Optiv Performance 322
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Hexagon Optiv Performance 322
Dimensions
- Machine Depth: 788 mm
- Machine Height: 939 mm
- Machine Weight: 180 kg
Movement
- Number of Axes: 3
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Frequency: 50/60 hz ± 5%
- Power consumption: 600 va
- Noise emission: a-weighted sound pressure level < 70 db(a)
Technical Machine Benefits
- Vision: 300 mm (x), 200 mm (y), 200 mm (z)
- Probe: 300 mm (x), 200 mm (y), 200 mm (z)
- Cws: 260 mm (x), 200 mm (y), 20 0mm (z)
- Vision/probe: 240 mm (x), 200 mm (y)
- All sensors: 158 mm (x), 200 mm (y), 200 mm (z)
- Max traverse speed: 300 mm/s (per axis), 500 mm/s (vector)
- Uncertainty: iso 10360-7 (optical): ex, ey = (1. 5 + l/250) µm, exy = (1. 9 + l/250) µm, ez = (1. 9 + l/250) µm iso 10360-2 (hp-s-x1c): mpes = (1. 9 + l/250) µm, mpep = 1. 9 µm, mperhp = 2. 9 µm (t = 75 sec)
- Scale resolution: 5 nm
- Max load capacity on glass plate: 20 kg
- Voltage: 115–230 v ± 10%
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
