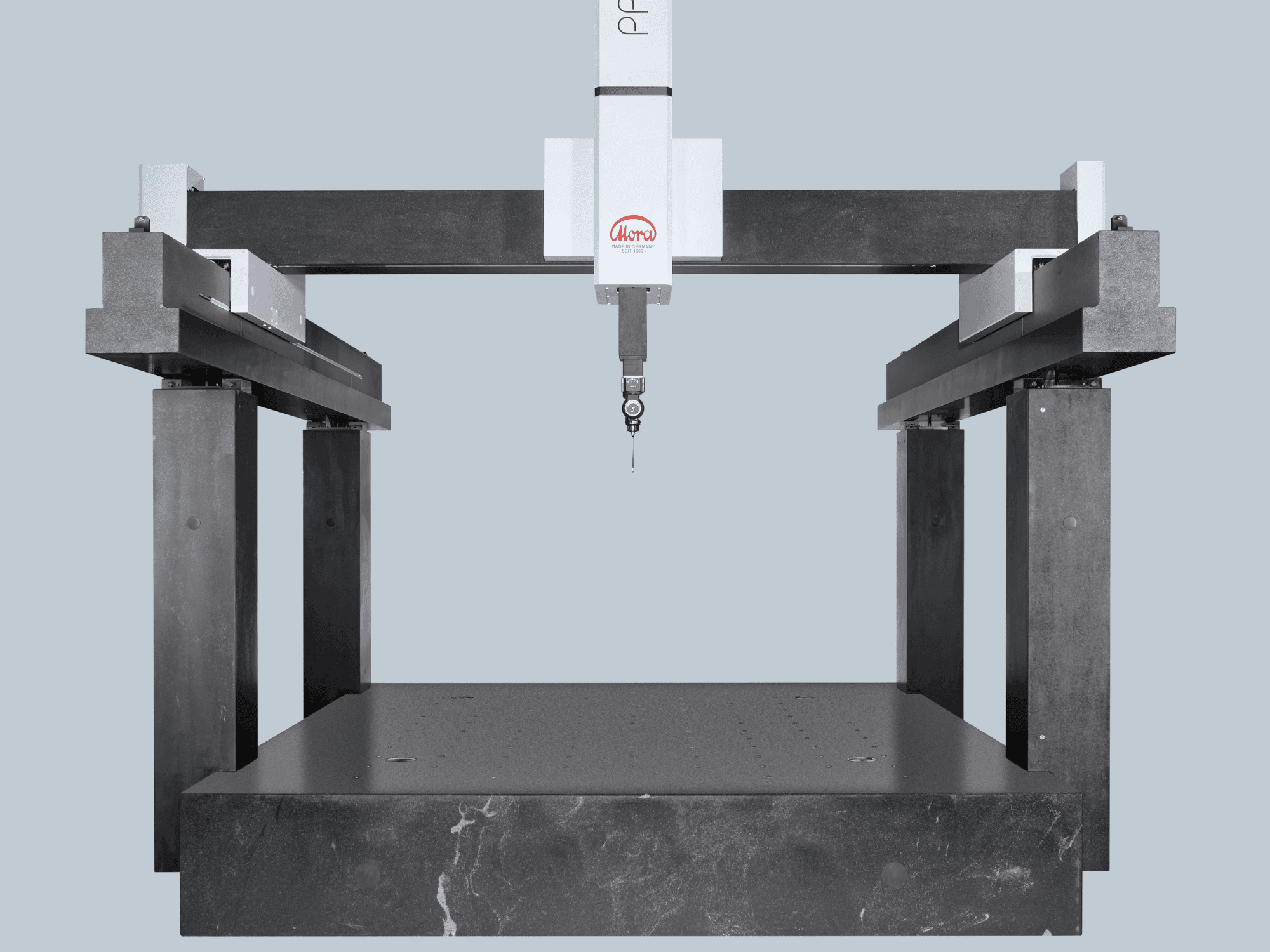

This 3-Axis Mora Primus 152012 was manufactured in 2019. It features a large measuring range with X-axis at 1500 mm, Y-axis at 2000 mm, and Z-axis at 1200 mm. Supports a maximum load of 4500 kg, ensuring robustness for various tasks. With a vector speed up to 519 mm/s, it offers efficient operations. If you are looking to get high quality measuring capabilities consider the Mora Primus 152012 machine we have for sale. Contact us for more information.
Overview
- brand: Mora
- year: 2019
- MODEL: Primus 152012
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Mora Primus 152012
General Data
- Measurements width: 3120 mm
- Measurements depth: 2505 mm
- Measurements height: 4125 mm
- Machine weight: 5530 kg
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 1500 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 1200 mm
Table
- Table load: 4500 kg
General Data
- Measurements width: 3120 mm
- Measurements depth: 2505 mm
- Measurements height: 4125 mm
- Machine weight: 5530 kg
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 1500 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 1200 mm
Table
- Table load: 4500 kg
Additional Information
Additional equipment
- 3-axis CNC controller, Pantec SP25/SP600 interface, EAGLE PAD joystick (6.5 m)
- Renishaw PH10M (720 positions, 7.5°) + PHC10-2 controller
- Renishaw SP25M full kit: SM25-1/-2/-3 (with SH25-1/-2/-3), TM25-20 adapter; extra SM25-4 (with SH25-4) & SM25-5 (with SH25-5)
- Extensive M2/M3 stylus kits (Ø 0.3–30 mm, extensions), M2↔M3 / M3↔M2 adapters
- FCR25 + FCR25-TC (3+3-port, temperature-controlled) with MRS1000/MRS600 rail system
- Ø 30 mm reference sphere
- INCA3D Premium (DCC): Shape Deviation, Path Wizard, Simulation, Statistics, Excel reports, graphical programming, CAD import IGES/STEP, Master Scan Functions + Assist SP25, FCR25 support, USB dongles (HASPHL)
- Industrial PC (e.g., Intel i5, 8 GB, 256 GB SSD, 22″ monitor, Windows 10) + color laser printer
Machine Benefits
Qualitative Machine Benefits
- Condition: new, factory-sealed, immediate availability
Technical Machine Benefits
- Accuracy (iso 10360, typical with sp25m): mpee 3. 0 + l/300 µm | mpep 3. 0 µm | mpe_thp 4. 4 µm / 68 s
- Dynamics: up to 519 mm/s | 1,732 mm/s²
- Probing/scanning: renishaw ph10m + sp25m (sm25-1…-5), fcr25/fcr25-tc (temperature-controlled)
- Software: inca3d premium (iges/step, scan options)
- Operating conditions: 20 °c ±2 °c; temperature gradients ≤ 1 °c/h and ≤ 1 °c/m
- Pneumatics: 6 bar, dry and oil/particle-free
- Power (controller): 90–240 v, 50/60 hz, 16 a; approx. 600 va (psu up to 2,000 va)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
