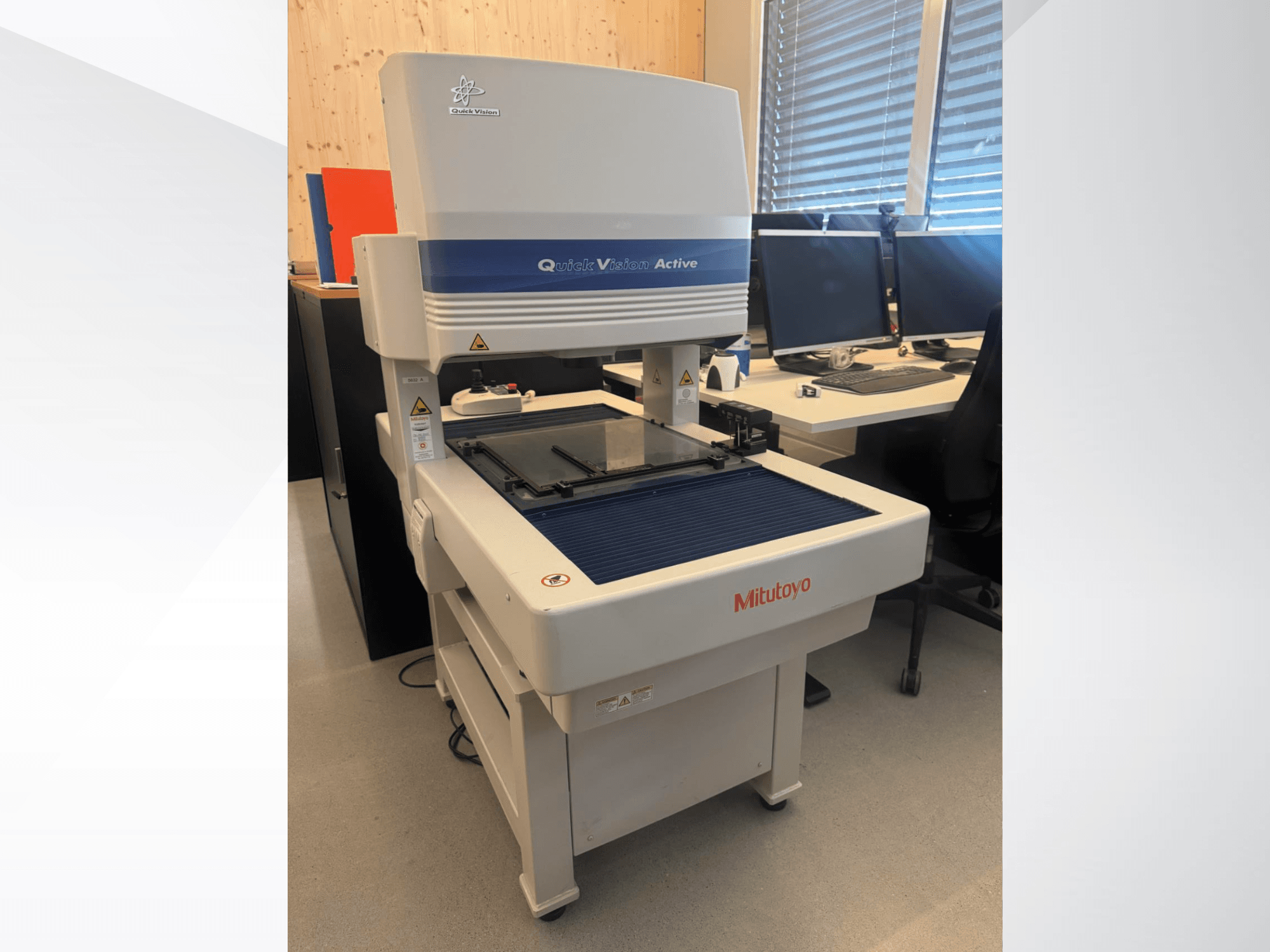

Mitutoyo QV-L404Z1L-D CMM in a front view, featuring a glass measurement table and visible control panel with buttons.
Mitutoyo QV-L404Z1L-D CMM in a front view, featuring a glass measurement table and visible control panel with buttons.

Mitutoyo - QV-L404Z1L-DLI-MEA-MIT-2020-00001

Rs. 4,273,401
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Mitutoyo QV-L404Z1L-D was manufactured in 2020. It features an X-axis travel of 400 mm, Y-axis travel of 400 mm, and Z-axis travel of 200 mm. The machine is equipped with advanced measurement capabilities, including video and touch probe measurement methods. If you are looking to get high-quality measurement capabilities, consider the Mitutoyo QV-L404Z1L-D CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Mitutoyo
  • year: 2020
  • MODEL: QV-L404Z1L-D
  • application type: Measuring
  • Location: Liechtenstein
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo QV-L404Z1L-D

Dimensions

  • Machine Height: 1529 mm
  • Machine Weight: 324 kg
  • Machine Width: 776 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 400 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 200 mm

Additional Information

  • Last calibration: 06 September 2022

  • X-axis travel: 400 mm

  • Y-axis travel: 400 mm

  • Z-axis travel: 200 mm

  • Resolution: 0.1 µm (0.0001 mm)

  • Length measurement accuracy XY: (2 + 3L/1000) µm

  • Length measurement accuracy Z: (3 + 5L/1000) µm

  • Length measurement accuracy E2XY: (2.5 + 4L/1000) µm

  • Machine depth: 1303 mm

  • CNC control: Yes

  • Control software: QVPak V13.3

  • Operating system: Windows 10 64-bit

  • Measurement display: 3D graphical measurement display

  • Programming interface: EasyEditor

  • Edge detection: Advanced recognition algorithms

  • Camera type: High-resolution CMOS color camera

  • Communication: USB 3.0

  • Zoom system: 7-step zoom lens

  • Measurement methods: Video measurement; Touch probe measurement; Multi-sensor measurement; Automatic measurement sequences

  • Measurement capability: Micro and nano feature measurement

Additional equipment

  • Touch probe type: TP20

  • Probe modules: 2 standard force modules

  • Probe module type: TP20 standard force

  • Stylus holder: 5-way holder

  • Stylus length: 13 mm

  • Stylus diameter: 10 mm

  • Probe changer: MCR20

  • Probe changer capacity: 3 ports

  • Calibration ring: Ø20 mm

  • Reference sphere: Ceramic master ball Ø15 mm

  • Machine stand: QVST-4L

  • Power cable: CH type 1.8 m

  • Computer type: Dell Precision workstation

  • Processor: Intel Xeon W-2223 3.6 GHz

  • Monitors: 2× Dell UltraSharp U2421E

  • Additional software: QV Partner Manager V3.1

  • Statistical software: MeasLink Real-Time Professional V9

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
