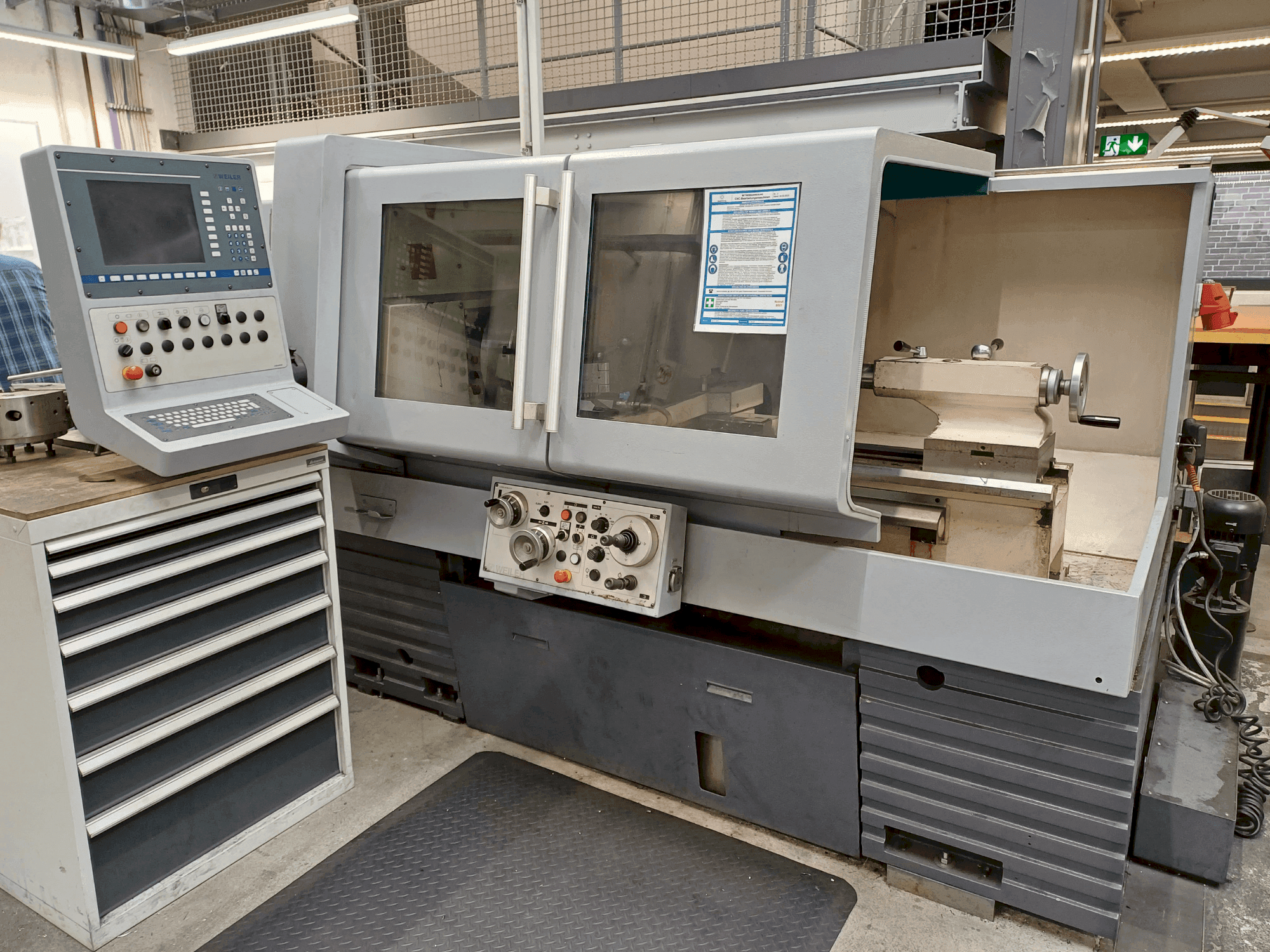

Weiler - E40DE-TUR-WEI-2009-00002

Additional equipment

• Fixed steady rest (clamping range: 12-150 mm)
• Moving steady rest (clamping range: 10-160 mm)
• Ø 400 mm Röhm faceplate
• 29 ISO Fix tool holders

Machine Benefits

Technical Machine Benefits

• Max. Torque at the spindle (60% ed): 450 nm
• Quill diameter: 65 mm
• Quill stroke: 120 mm
• Inner taper of the quill: mk 4
• Metric threads: 0. 1-400 mm
• Inch threads: 1/4-56 g/1"
• Module threads: 0. 125-28 mm
• Dp threads: 1-224 g/"

Extra Information

Movement Working range: Center width: 1000 mm Center height: 210 mm Swing diameter over bed: 435 mm Swing diameter over cross slide: 200 mm Bed width: 330 mm Sliding movement of cross slide: 260 mm Sliding movement of top slide: 120 mm Cross slide length: 790 mm Cross slide width: 202 mm Bed slide guide length: 540 mm Turning tool cross-section (height/width): 25 x 25 mm Feed Drive Three-phase servo drives Feed range longitudinal and planar: 0-20 mm/rev Feed force longitudinal: 8000 N Feed force planar: 5000 N Rapid traverse speed longitudinal/planar: 10 m/min / 5 m/min
