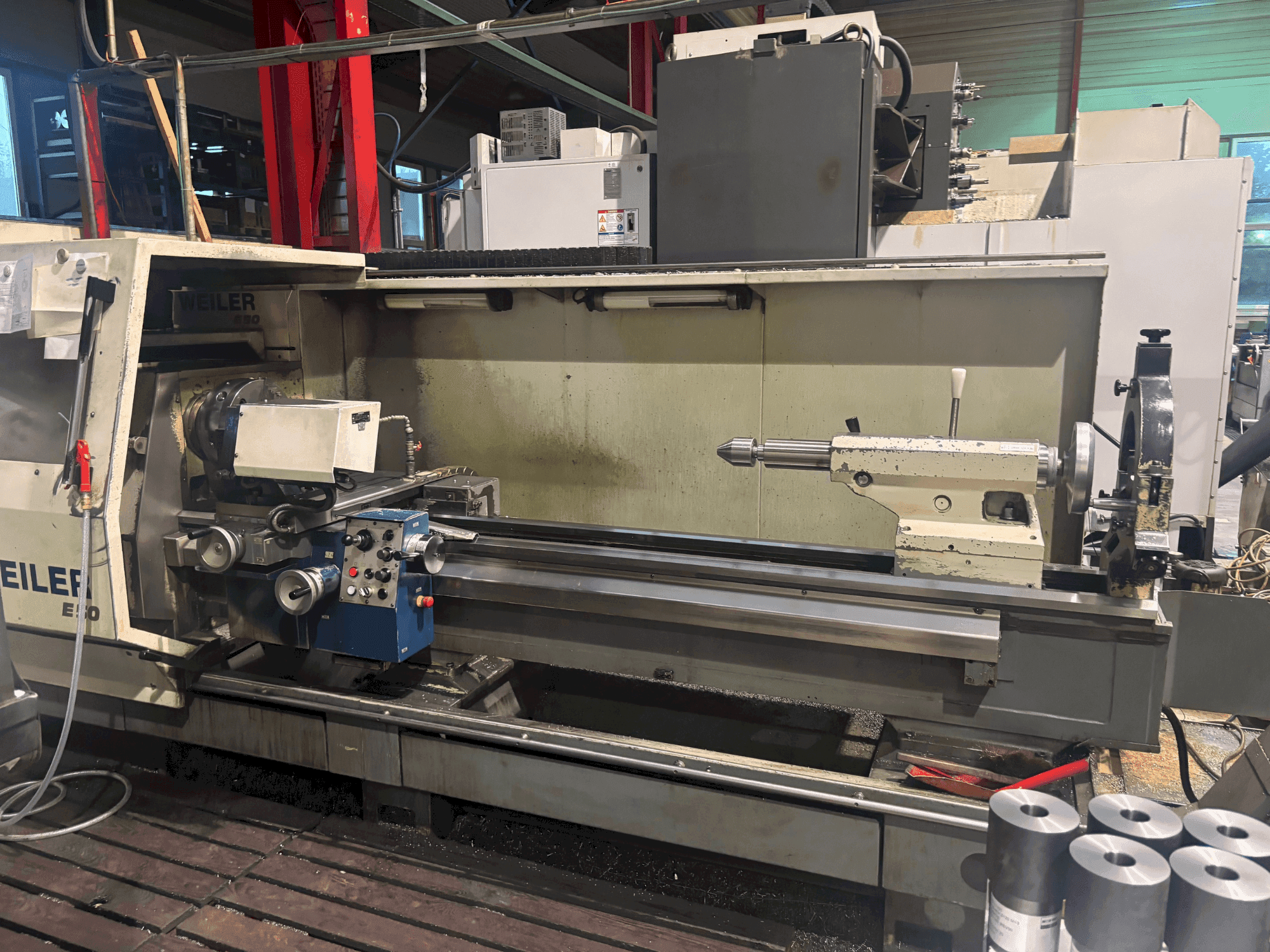

Weiler - E50 AT-TUR-WEI-2009-00001

Machine Benefits

Qualitative Machine Benefits

• Spindle diameter in the front bearing: 120 mm

• Spindle bore: 83 mm

• Inner taper of the main spindle: metric 90

• Feed range longitudinal and planar: 0-20 mm/rev

• Feed force longitudinal: 10000 n

• Feed force planar: 7000 n

• Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min

• Metric threads: 0. 1-400 mm

• Inch threads: 1/4" - 56 g/1"

• Module threads: 0. 125 - 28

Technical Machine Benefits

• Drive power (60% / 100% ed): 20/17 kw

• Max. Torque at the turning spindle: 1600 nm

• Gear stage i: 1-625 min-¹

• Gear stage ii: 4-2500 min-¹

• Bed width: 350 mm

• Quill diameter: 80 mm

• Quill stroke: 200 mm

• Inner taper of the quill: mk 5

• Turning tool cross-section (height/width): 32 x 25 mm

• Spindle head according to din 55027: size 8

Extra Information

• Machine still under power

• The machine has been working effectively in 1-shift operation since it was purchased

• The footprint of the machine is 2.8m x 5.2m, the 2.8m already includes 600mm as a workstation

• All manuals are available

Optional equipment (extra charge):

• The chuck incl. hard & several sets of soft jaws

• Tailstock

• Tools

• Steady rest
