Pinacho - Smart-turn6 260AT-TUR-PIN-2007-00001

Name: Pinacho Smart-turn6 260
Brand: Pinacho
SKU: AT-TUR-PIN-2007-00001
Price: 2237028 INR
Availability: InStock

Rs. 2,237,028

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Pinacho Smart-turn6 260 For Sale | gindumac.com

Show in original language

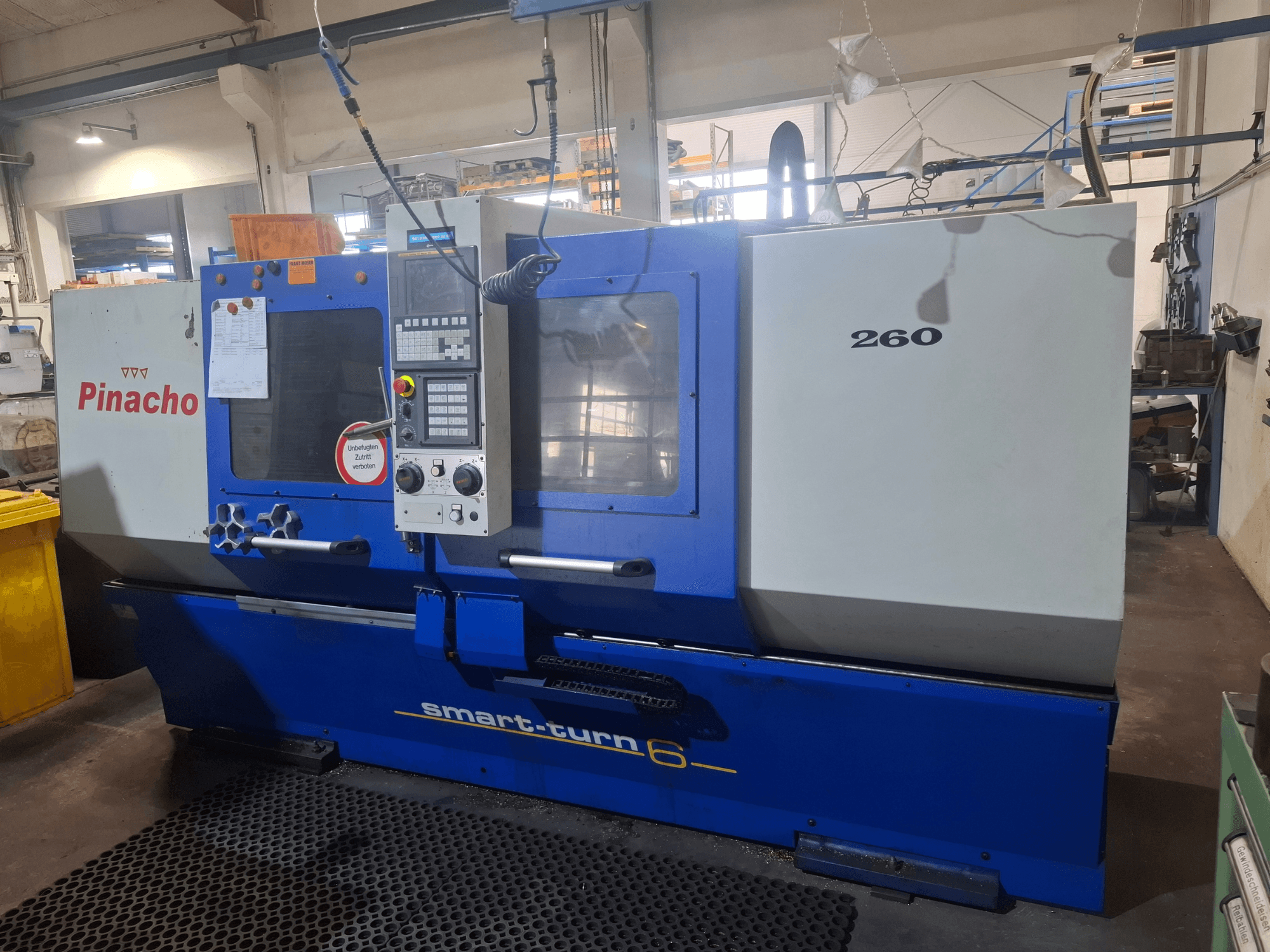

Horizontal turning machine manufactured in 2007. This Pinacho Smart-turn6 260 features a distance between centers of 1,500 mm and a maximum turning diameter with soft jaws of 500 mm. It is equipped with a spindle speed of 2,400 rpm and a spindle bore of 80 mm. If you are looking to get high-quality turning capabilities, consider the Pinacho Smart-turn6 260 machine we have for sale. Contact us for further details.

Overview

brand: Pinacho
year: 2007
MODEL: Smart-turn6 260
production hours: 2974
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
Available from: 05/10/2026
control unit brand: FANUC

Technical Information - Pinacho Smart-turn6 260

Control Unit

Control Brand: FANUC
Control Model: 0i Mate TC

Dimensions

Machine Height: 1850 mm
Machine Length: 3330 mm
Machine Weight: 3350 kg

Movement

Number of Axes: 2
X-axis Travel: 330 mm
Z-axis Travel: 1550 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 4 kW
Spindle Speed: 2400 RPM

Additional Information

Distance Between Centers: 1,500 mm
Spindle Bore: 80 mm
Maximum Turning Diameter over Cross Slide: 300 mm
Maximum Turning Diameter with Soft Jaws: 500 mm
Spindle Speed: 2,400 rpm
Spindle Motor Power: 4 kW
Connected Load: 17 kW
Tailstock Quill Diameter: 58 mm
Tailstock Taper: Morse 5 (MT5)
Machine Length: 3,330 mm
Machine Height: 1,850 mm
Machine Weight: 3,350 kg
Chuck Diameter: 260 mm
Documentation: Operating Manual Included
Condition: Good Condition
Service History: Service Maintained
CE Marked

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
