This 5-axis LICON LiFLEX II 766 i3 DT B22 was manufactured in 2016. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 96 tools. The machine is equipped with advanced i³ technology, allowing independent control of the X, Y, and Z axes for both spindles. If you are looking to get high-quality machining capabilities, consider the LICON LiFLEX II 766 i3 DT B22 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: LICON
- year: 2016
- MODEL: LiFLEX II 766 i3 DT B22
- production hours: 40148
- application type: Turning
- Location: Austria
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - LICON LiFLEX II 766 i3 DT B22
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D sl
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 650 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Max. Tool Weight: 20 kg
- Positioning Accuracy: 8 µm
- Spindle Power: 37 kW
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
- Through-spindle Coolant: Yes
- Tool Stations: 48
Additional Information
Technical Data
Machine Type: Twin-Spindle Horizontal Machining Center
Control Unit: Siemens SINUMERIK 840D sl

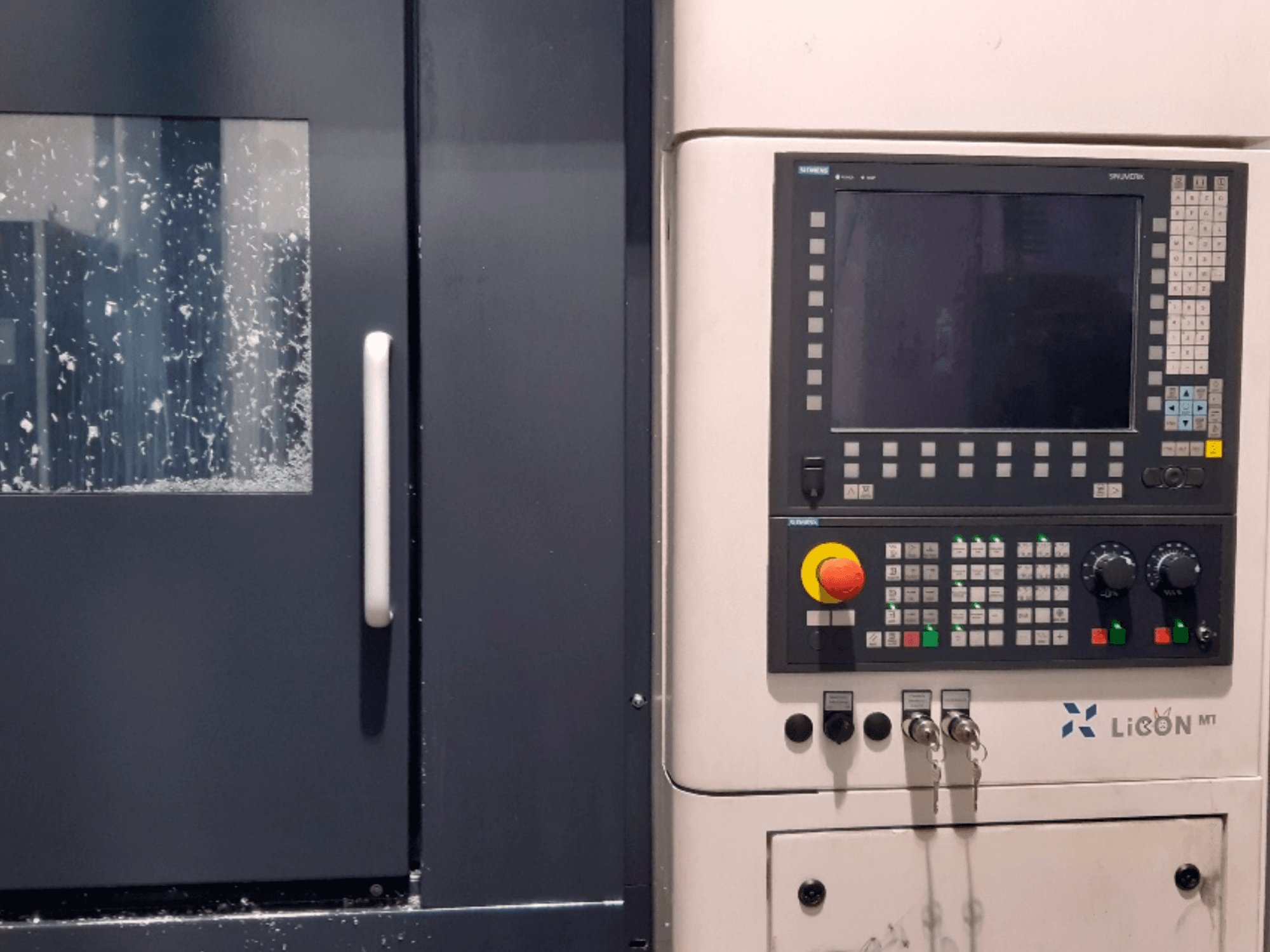

Operator Panel: Siemens OP15T with integrated TCU
ECO Mode
Remote Diagnostics (eWON Router)
PROFIBUS Interface for Automatic Workpiece Loading
Signal Tower (3-color LED)
Travels
X-Axis Travel: 750 mm
Y-Axis Travel: 660 mm
Z1-Axis Travel: 650 mm
Z2-Axis Travel: 650 mm
Rapid Traverse
X-Axis: 60 m/min
Y-Axis: 60 m/min
Z1/Z2 Axes: 90 m/min
Axis Performance
X-Axis Acceleration: 6 m/s²
Y-Axis Acceleration: 6 m/s²
Z1/Z2 Axis Acceleration: 9 m/s²
Feed Force X: 15,000 N
Feed Force Y: 15,000 N
Feed Force Z1/Z2: 10,000 N
Positioning Accuracy: 8 µm
Spindle
Number of Spindles: 2
Precision Motor Spindles
Tool Holder: HSK-A63 (DIN 69893-1)
Spindle Speed: 12,000 rpm
Spindle Power: 37 kW (40% ED)
Spindle Torque: 85 Nm (40% ED)
Maximum Torque: 100 Nm
Direct Drive
Axes / Swivel System
2 NC B-Axes
2 NC Rotary Axes (A-Axes)
Swivel Range: 0°–180°
Swivel Time (0°–180°): approx. 5 s
Technology
Independent X, Y and Z Axes for both Spindles
Separate Direct Measuring System for each Axis
Independent Z-Axis Correction Range: 5 mm
Tool Magazine
96 Tool Stations (2 × 48)
Maximum Tool Length: 400 mm
Maximum Tool Diameter (Adjacent Pockets Occupied): 80 mm
Maximum Tool Diameter (Adjacent Pockets Free): 250 mm
Maximum Tool Weight: 20 kg
Lubrication
Automatic Central Lubrication
5-Channel Media Transfer (Oil or Air)
Cooling / Coolant
70 bar Through-Spindle Coolant
Coolant Tank Capacity: 2,300 l
Coolant Flow Rate: 400 l/min
High-Pressure Pump: 15 kW
Automatic Coolant Refill
Coolant Cleaning System
Water Cooling
Cooling Water Temperature: 22 °C
Cooling Water Flow Rate: 800 l/h
Chip Management
Scraper-Type Chip Conveyor
Chip Conveyor Discharge Height: < 1,150 mm
Dry Machining Ready
MMS (Minimum Quantity Lubrication) Compatible
Electrical Data
Power Supply: 400 V / 50 Hz
Control Voltage: 24 V DC
Connected Load: 150 kW
Additional Features
Automatic Workpiece Loading Interface
Automatic Tool Changer
Closed Machine Enclosure
Machine Lighting
Pneumatic Equipment
Energy Monitoring System
Automatic Media Connections
Modular Machine Design
Additional Information
Motor Spindle 11 replaced in Week 19/2024
Motor Spindle 12 replaced in Week 24/2023
