➤ Used DMG MORI NZX 2000/800SY For Sale | gindumac.com

Show in original language

This 6-axis DMG MORI NZX 2000/800SY was manufactured in 2016. It features a maximum turning diameter of 320 mm and a swing over bed of 800 mm. The machine is equipped with dual turrets, each with 16 stations, and offers high-speed canned cycle capabilities. If you are looking to get high-quality turning capabilities, consider the DMG MORI NZX 2000/800SY horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2016
MODEL: NZX 2000/800SY
production hours: 28151
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
Available from: 18/12/2026
control unit brand: FANUC

Technical Information - DMG MORI NZX 2000/800SY

Control Unit

Control Brand: FANUC
Control Model: F31iB with Celos

Movement

Number of Axes: 6
X-axis Travel: 210 mm
Y-axis Travel: 110 mm
Z-axis Travel: 810 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Speed: 5000 RPM
Tool Stations: 32

Additional Information

Number of turrets: 2
Number of tool slots: 2 x 16 stations
Main electronic connection: Transformer 95 kVA
Chip conveyor: Yes
4 x angel live tools will follow
6 x straight live tool holder will follow
2 x angel C4 Capto live tool holder will follow
10 x capto fix tool holders will follow

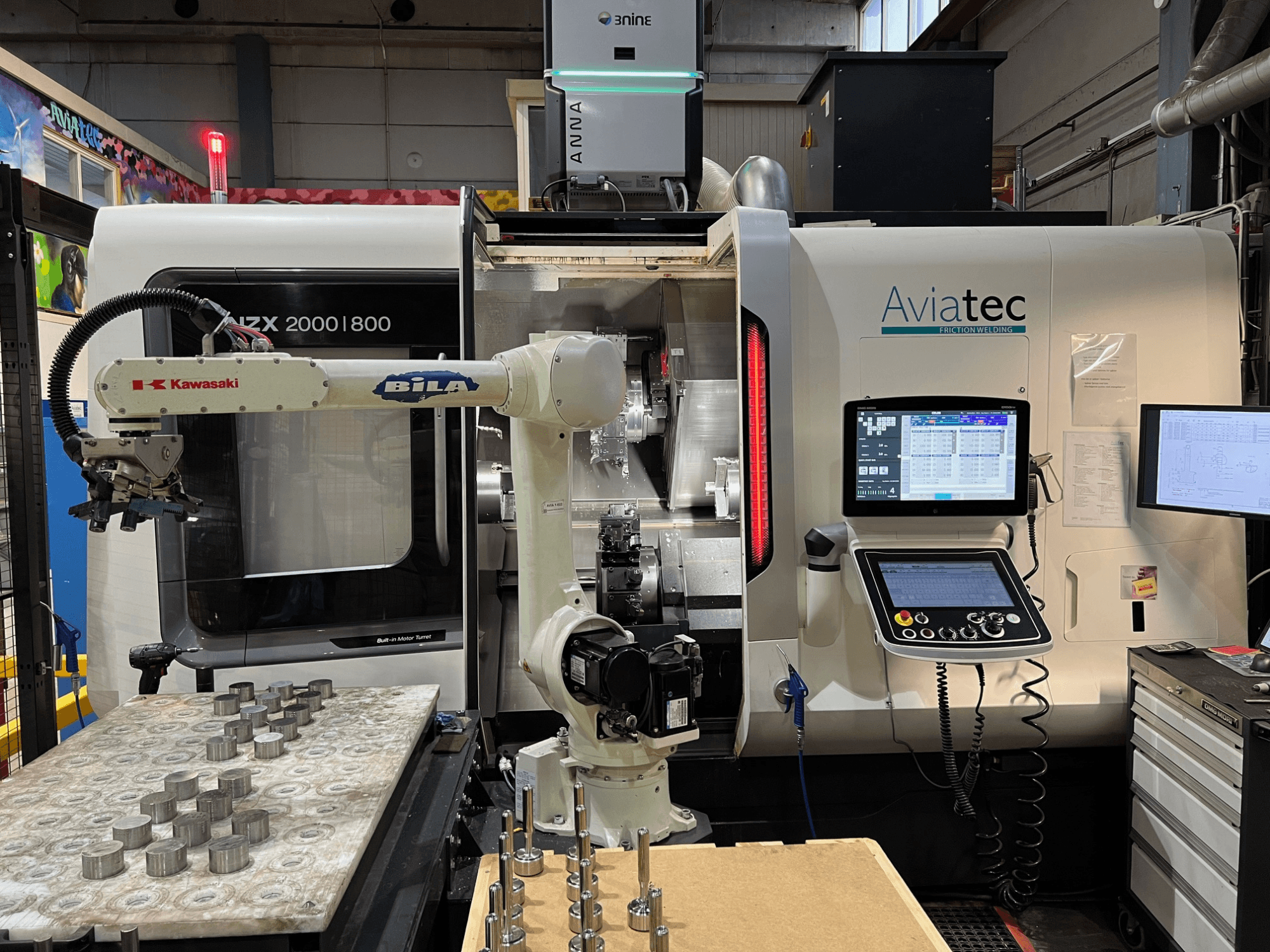

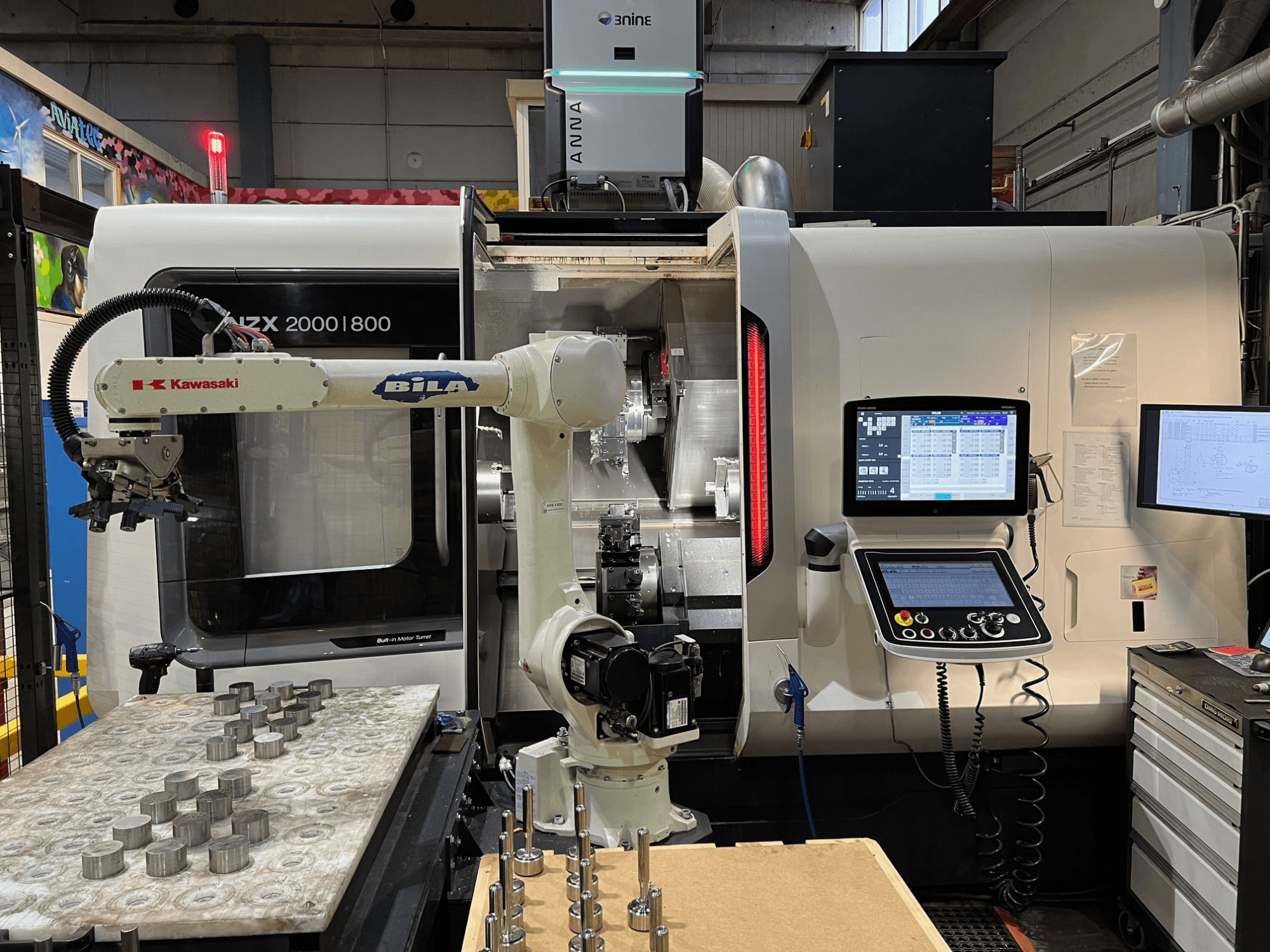

Possible to buy also robot solution
Well maintained
Only running stainless steel since day one
Chuch high/low pressure both spindles
Spindle 2 tailstock spec
7 MPa high pressure Knoll system
Coolant gun
Coolant float switch
Chuck top coolant both spindles
Airblow for tool tip both turrets
Airblow for chuck spindle 1
Oil skimmer
Autodoor
Robot IF
Ethernet IF
Safety fence IF
Barfeeder IF
10 external M codes
Handwheel
Spindle orientation both spindles
Text engraving function
High Speed canned cycle
Program restart
Island open pockets
1 mB storage
Additional workpiece coordinate 48 sets
Tool offsets 200 sets
Swing over bed = 800 mm
Swing over cross slide 800 mm
Maximum distance between nose 1130 mm
Max turning diameter 320 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
