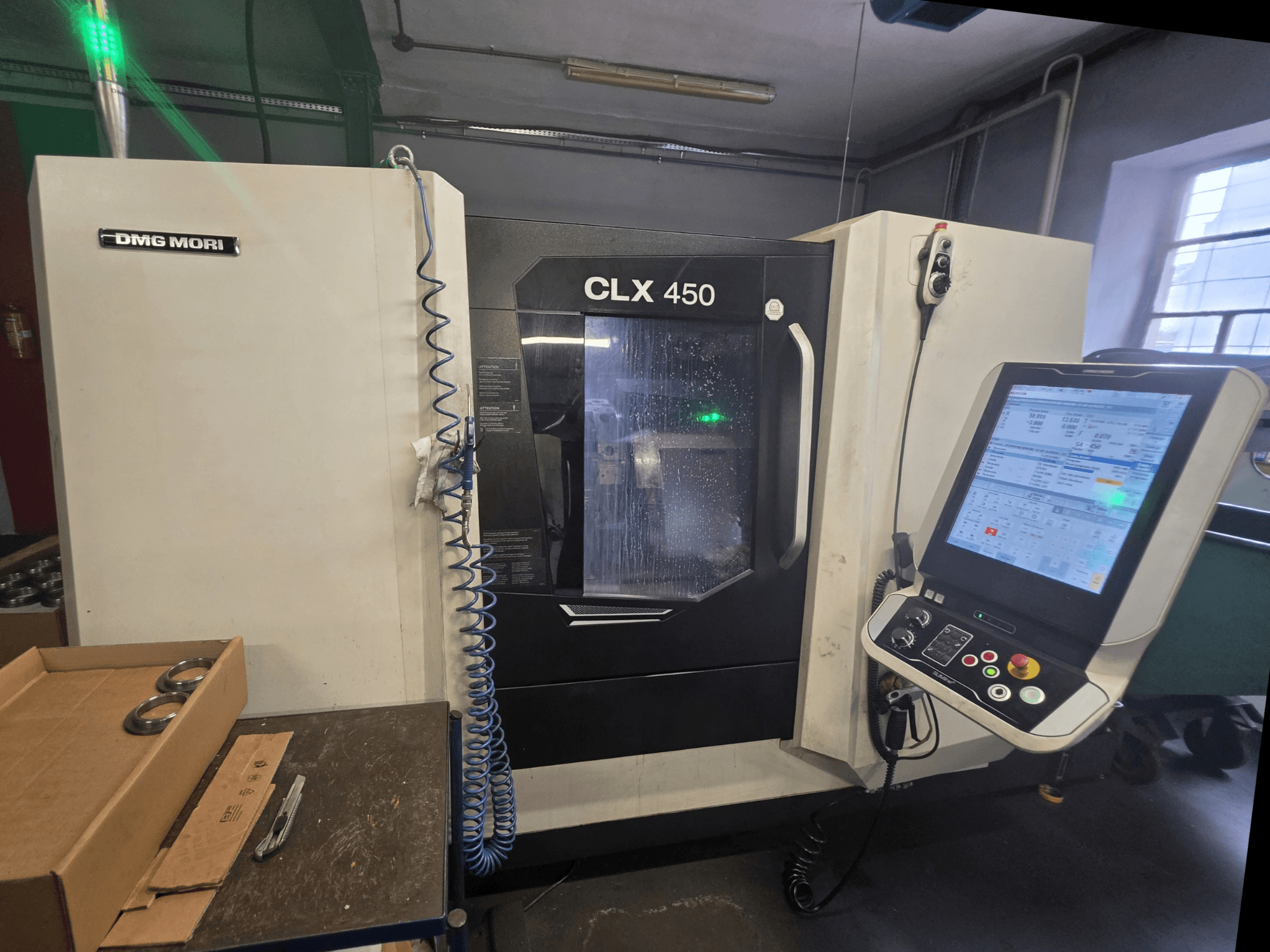

DMG MORI - CLX 450 V3PL-TUR-DMG-2018-00001

Working capacity and axes:

• Axes: X, Z; C-axis on main spindle

• No Y-axis; no counter spindle (V3 configuration)

• Max turning diameter: 400 mm

• Max turning length: 800 mm

• Swing over bed: 700 mm

• Swing over cross slide: 500 mm

• Rapid traverse X/Z: 30 m/min

• Direct measuring systems on X and Z

Main spindle:

• Spindle nose: A2-8

• Bar capacity: 80 mm

• Power: 25.5 kW @ 40% duty / 17 kW continuous

• Torque: 426 Nm @ 40% duty / 283 Nm continuous

• Chuck: Hydraulic 3-jaw BB-D 250/Z220, D 78 mm (as per original offer)

Tool turret:

• 12-position VDI 40 turret with 6 additional BT stations

Driven tools:

• Max speed: 4,000 rpm

• Power: 5.44 kW @ 40% duty

• Torque: 20 Nm @ 40% duty

Tailstock:

• Tailstock travel: 800 mm

• Centre taper: MT5

• Max thrust: 8 kN

• Tailstock foot pedal

Included options:

• Production package

• 12-bar coolant pump

• Manual washdown gun for working area

• Dual coolant filter

• Tool probe in the working area

• Preparation for oil mist extraction

• Easy Tool Monitoring

• DMG MORI Messenger V2

• DMG MORI Netservice client

• German screen language and documentation

Hour meter:

• Power on: 38,556 h

• Spindle: 20,876 h
