➤ Used DMG MORI WASINO G 100 | 300 For sale | gindumac.com

Show in original language

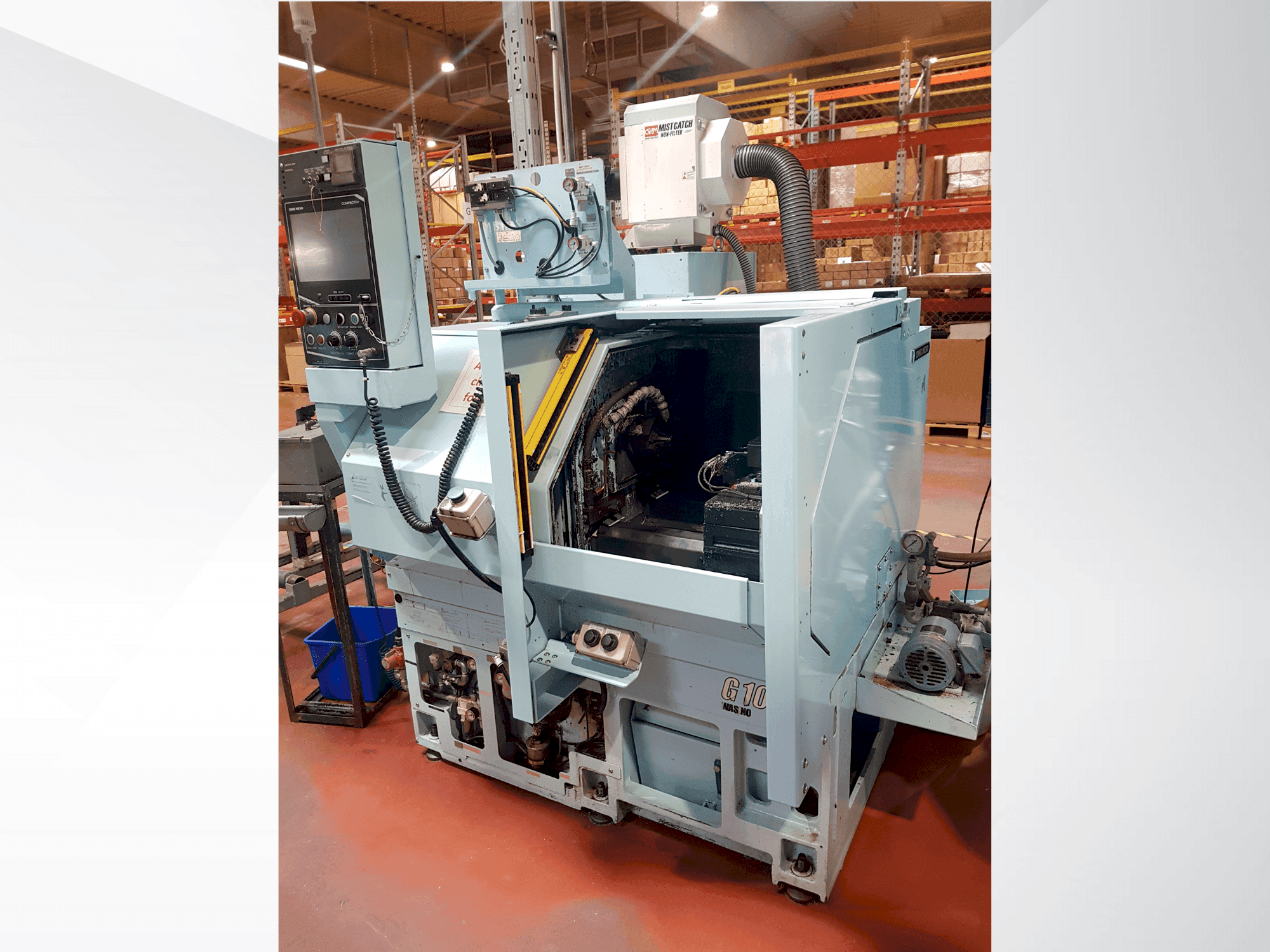

This lathe was manufactured in 2017. The DMG MORI WASINO G 100 | 300 features a maximum turning diameter of 285 mm and a standard diameter of 60 mm. It supports bar work up to 38.1 mm and offers rapid traverse rates of 12000 mm/min on the X-axis and 20000 mm/min on the Z-axis. With a spindle speed up to 6000 min⁻¹, this machine is ideal for efficient operations. For more information about this lathe, please reach out to us.

Overview

brand: DMG MORI
year: 2017
MODEL: WASINO G 100 | 300
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine

Technical Information - DMG MORI WASINO G 100 | 300

Dimensions

Machine Depth: 1958 mm
Machine Height: 2430 mm
Machine Weight: 1650 kg

Movement

X-axis Travel: 300 mm
Z-axis Travel: 285 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

High spindle speed (above 6000 min⁻¹)

Technical Machine Benefits

High rapid traverse rates

Extra Information

MACHINE STILL UNDER POWER Units available: 4 Max. Turning Diameter: 285 mm (11.22 in) Standard Turning Diameter: 60 mm (2.36 in) Bar Work Capacity: 38.1 mm (1.5 in) Spindle Nose Type: 100 mm (3.93 in) flat Through Spindle Hole Diameter: 45 mm (1.77 in) Spindle Bearing Inner Diameter: 75 mm (2.95 in) Shank Height for Square Tool: 16 mm (0.63 in) Shank Diameter for Boring Bar: 20 mm (0.79 in) Rapid Traverse Rate:X-axis: 12000 mm/min (472.44 ipm) Z-axis: 20000 mm/min (787.40 ipm) Jog Feedrate: 0 - 5000 mm/min (196.85 ipm) Motors:Spindle Drive Motor (40%/Continuous): 5.5/3.7 kW (7.33/4.93 HP) Feed Motors: X-axis: 0.75 kW (1 HP), Z-axis: 1.2 kW (1.6 HP) Hydraulic Pump Motor: 0.75 kW (1 HP) Lubricating Pump Motor: 0.04 kW (0.053 HP) Coolant Pump Motor: 0.18 kW (0.24 HP) Cooling Oil Pump Motor: 0.06 kW (0.08 HP) Compressed Air Supply: 0.5 MPa (72.5 psi), 80 L/min Tank Capacities:Hydraulic Oil Tank Capacity: 10 L (2.65 gal) Lubricating Oil Tank Capacity: 2 L (0.52 gal) Coolant Tank Capacity: 147 L (38.88 gal) Oil Heat Exchanger Tank Capacity: 10 L (2.65 gal) Machine Mass with loader specification: 2165 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
