DMG MORI NLX1500MC/500

Photo Gallery

Rs. 6,598,455

gindumac price

(Ex works)

Get an official quote

DMG MORI - NLX1500MC/500DE-TUR-DMG-2015-00003

Name: DMG MORI NLX1500MC/500
Brand: DMG MORI
SKU: DE-TUR-DMG-2015-00003
Price: 6598455 INR
Availability: InStock

Rs. 6,598,455

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NLX1500MC/500 For Sale | gindumac.com

Show in original language

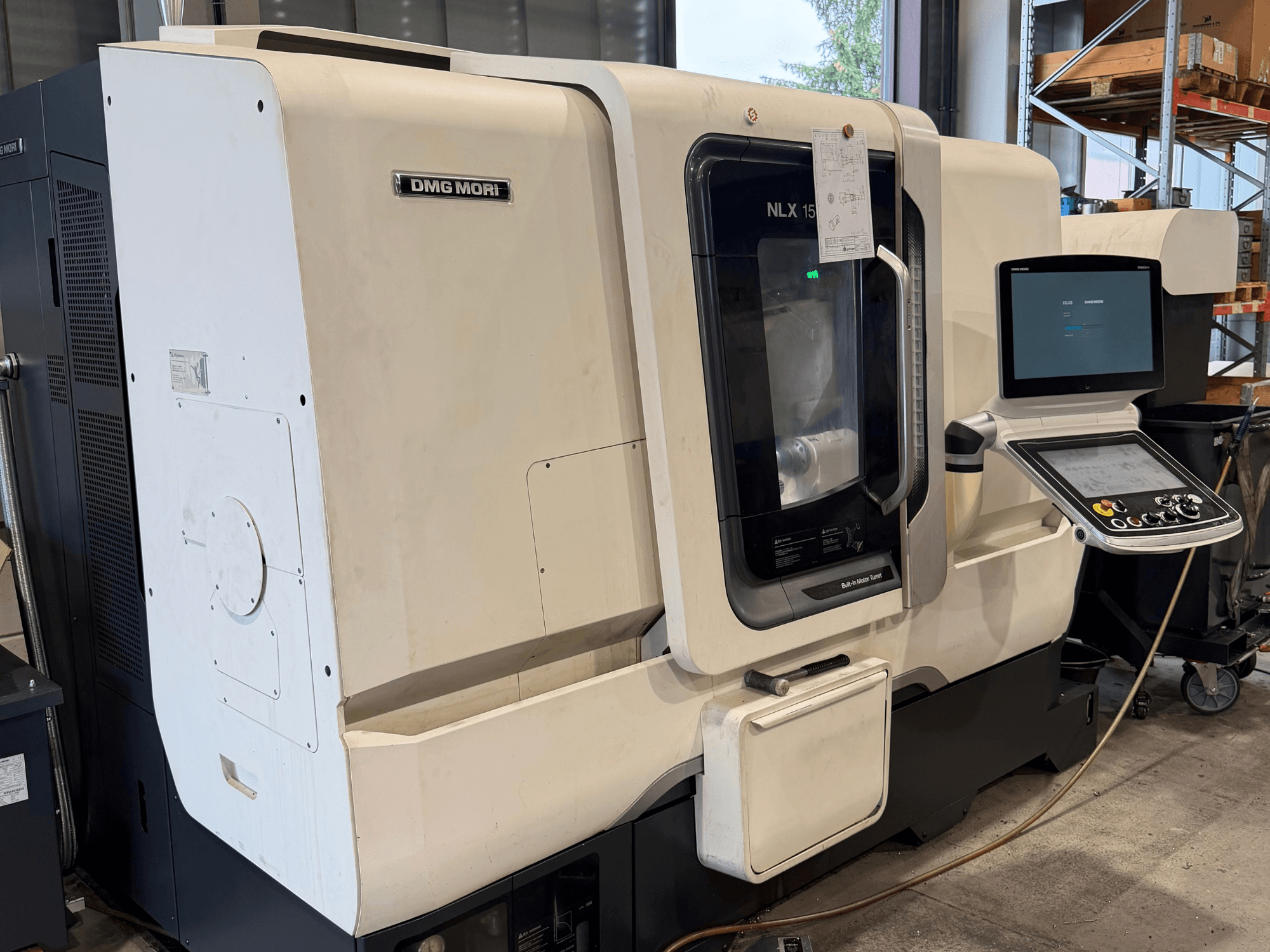

This 3-axis DMG MORI NLX1500MC/500 was manufactured in 2015. It features a spindle output of 11/7.5 kW and a maximum spindle speed of 6,000 min-1. The machine is equipped with a 12-station turret and a high-pressure coolant system. If you are looking to get high-quality turning capabilities, consider the DMG MORI NLX1500MC/500 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2015
MODEL: NLX1500MC/500
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: MITSUBISHI

Technical Information - DMG MORI NLX1500MC/500

Control Unit

Control Brand: MITSUBISHI
Control Model: M-730UM

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Z-axis Travel: 590 mm

Technical Specification

Counter Spindle: No
Driven Tools: No

Additional Information

- Operation Panel Type: ERGOLINE TOUCH (21.5 + 15.6)

- Customer Factory Voltage: 380 V

- Frequency: 50 Hz

- Nominal Bed Length: 500 mm

- Spindle 1 Output: 11 / 7.5 kW

- Spindle 1 Speed: 6,000 min-1

- Spindle 1 Through-Spindle Hole Diameter: 61 mm

- Spindle 1 Chuck Type: Hollow Chuck (6")

- Spindle 1 Chuck Manufacturer: Kitagawa

- Spindle 1 Chuck Cylinder Stroke Check: Stroke end detection

- Turret 1 Type: 12 Stations

- Turret 1 Milling Function: Provided

- Turret 1 Rotary Tool Spindle Output: 5.5 (3 min) / 3.7 kW

- Turret 1 Rotary Tool Spindle Speed: 10,000 min-1

- Turret 1 Rotary Tool Spindle Torque: 29 N·m (3 min) / 14 N·m

- Turret 1 Tool Mounting Method: By bolts

- Turret 1 Overhang of O.D. Cutting Rotary Tool: 100 mm (Y-axis stroke control)

- Tailstock: Provided (Programmable Z-axis travel type)

- Tailstock Spindle: Live Center MT4

- Chip Conveyor: Provided (Right disposal type, Hinge)

- Coolant System: High-pressure (635 W / 1040 W), Water-soluble coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
