DMG MORI - MORI NLX 2500/700 SYDE-TUR-DMG-2023-00004

- Control Unit: MITSUBISHI M730UM with CELOS (MAPPS V) on 21.5-inch Multi-Touchscreen ERGOline Touch

- Turning Length: 700 mm

- Main Spindle (Spindle 1): 18.5/18.5/15 kW (25% ED/50% ED/cont.), 4,000 rpm, JIS A2-8 spindle nose, Ø91 mm spindle bore

- Main Spindle Chuck: 10" Hydraulic 3-jaw chuck (Kitagawa BR10A821, Ø254 mm) with hollow clamping cylinder (Ø80 mm bar passage)

- Counter Spindle (Spindle 2): 11/7.5 kW (25% ED/cont.), 6,000 rpm, JIS A2-5 spindle nose, Ø43 mm spindle bore

- Counter Spindle Chuck: 6" Hydraulic 3-jaw chuck (Kitagawa BR06A521E, Ø170 mm) with full clamping cylinder

- Turret: 12-station BMT60 turret with 10,000 rpm driven tools (5.5/5.5/3.7 kW power, 40/30/14 Nm torque)

- Y-Axis Travel: ±50 mm (Rapid traverse 10 m/min)

- X-Axis Direct Measuring System: Magnetic linear scale system (0.01 µm resolution)

- Tool Setter: Manual swing-type tool presetter for Spindle 1 and removable tool presetter for Spindle 2

- Automation & Parts Handling: Integrated parts catcher for main/counter spindle (up to Ø80 mm x 200 mm, 3 kg max), workpiece discharge conveyor belt, pneumatic workpiece ejector (Spindle 2)

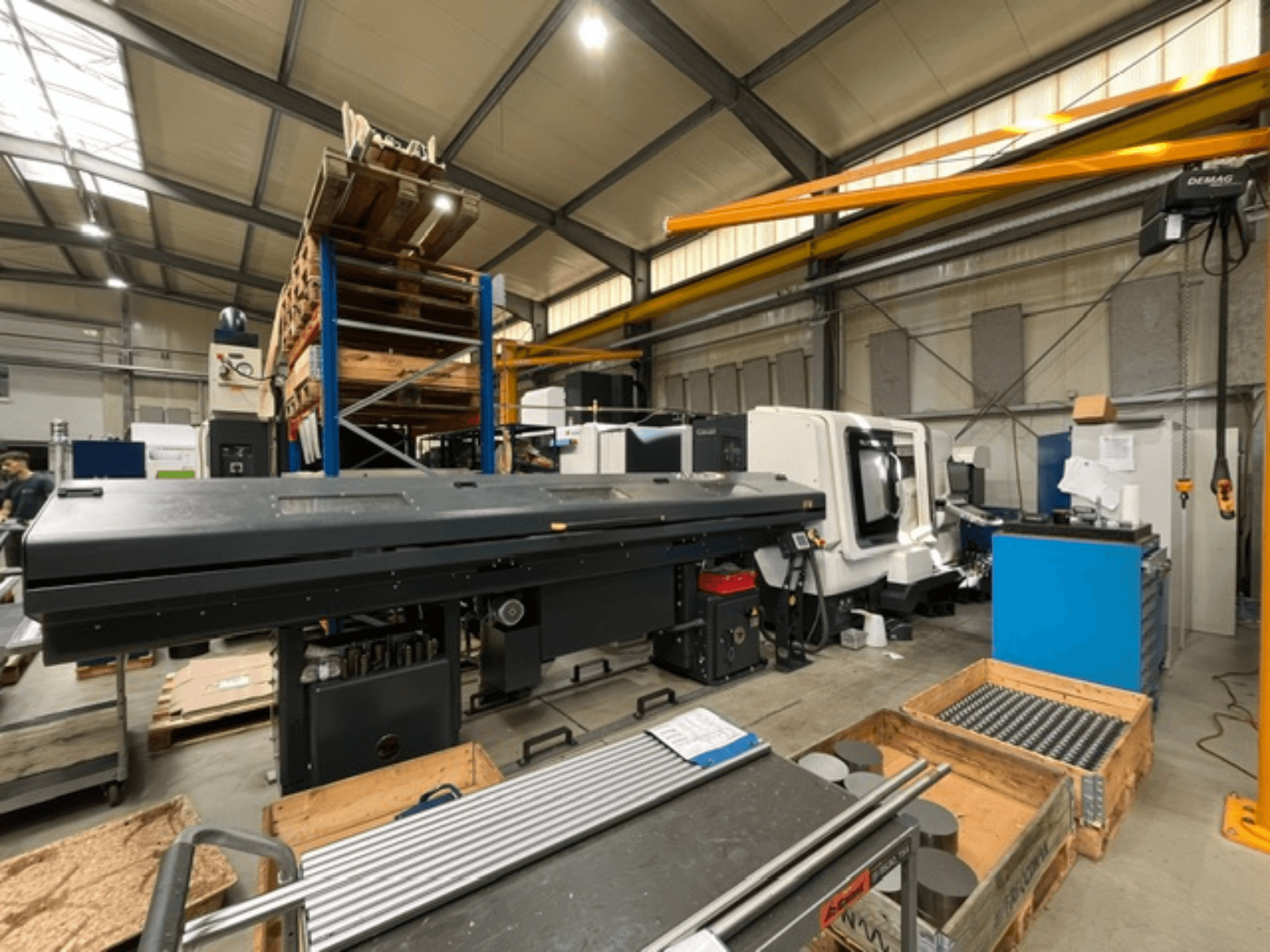

- Bar Feeder & Interface: Bar feeder interface (multi-brand) with Top Automazioni X-Files 380M 3m bar feeder (80 mm max bar diameter)

- Coolant & Filtration System: Hinge-belt chip conveyor (right side discharge), 0.8 MPa high-pressure coolant pump, INTERLIT pump unit with 15 bar high-pressure pump & double cartridge filter, coolant gun

- Auxiliary Equipment & Interfaces: Oil mist collector interface (Ø150 mm port), 3-phase autotransformer (45 kVA, 400V/200V, 50 Hz), double foot switch for chuck operation

- Machine Operating Hours (from HMI readout):

- Machine Power-On Time: 8,120 hours

- Program Run Time Head 1: 3,751 hours

- Cumulative Cutting Time Head 1: 1,904 hours
