➤ Used DMG MORI CLX 450 V6 For Sale | gindumac.com

Show in original language

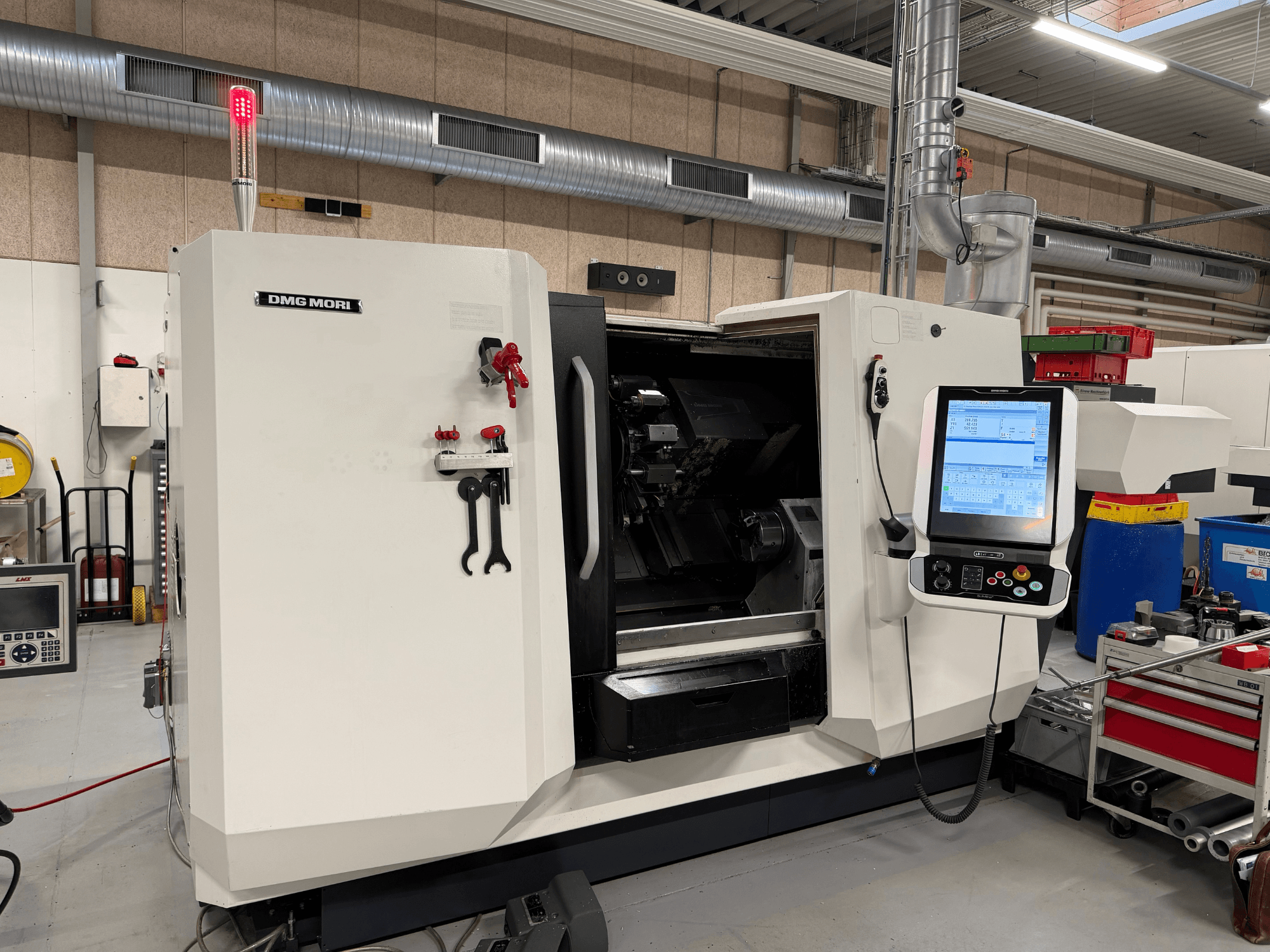

This 4-axis DMG MORI CLX 450 V6 was manufactured in 2019. It features a maximum Z-axis travel of 830 mm and X-axis travel of 750 mm, along with a counter spindle capable of 5000 rpm. The machine includes a bar package, pneumatic workpiece ejection device, and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V6 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2019
MODEL: CLX 450 V6
production hours: 4500
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG MORI CLX 450 V6

Control Unit

Control Brand: SIEMENS
Control Model: 840 D Operate 4,7

Movement

Number of Axes: 4
X-axis Travel: 750 mm
Y-axis Travel: 120 mm
Z-axis Travel: 830 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Speed: 4000 RPM
Taper Size: VDI 40
Tool Stations: 12

Additional Information

Counter spindle: A2-6, 5000 rpm
Tailstock function for counter spindle
Alternating speed cycle (control function)
Hand wheel

Additional equipment

Bar package and bar feeder interface
Hainbuch Spanntop NOVA combi pull-back, size 80 (main spindle collet chuck)
Pneumatic workpiece ejection device for counter spindle
SMW BB-D 210 for counter spindle (chuck)
High-pressure coolant, 12 bar
Coolant spray gun
Marposs manual tool measuring probe
Chip conveyor
Bar feeder (will follow)
All tool holders shown in pictures (will follow)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
