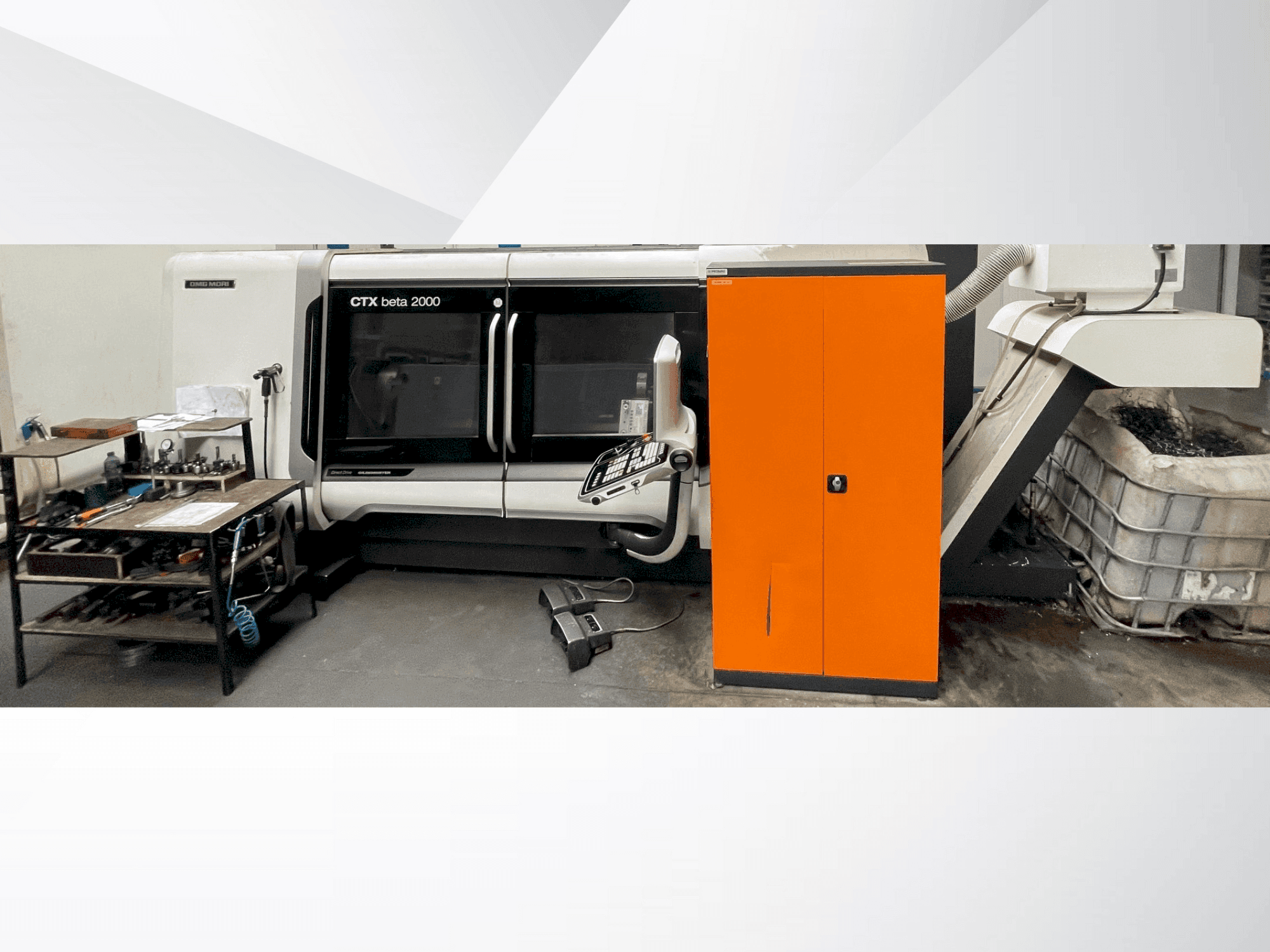

This 3-axis horizontal turning machine manufactured in 2020 features a Siemens 840D control and a spindle speed up to 3,600 rpm. It offers a max turning diameter of 600 mm and a length of 2000 mm. Equipped with a chip conveyor, Siemens CELOS control system, and a fume extraction system, it's ideal for complex machining tasks. Consider the opportunity to buy this DMG MORI CTX 2000 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: CTX 2000
- production hours: 6056
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX 2000
General Data
- Measurements width: 3150 MM
- Measurements depth: 5564 MM
- Measurements height: 2135 MM
- Machine weight: 10000 KG
Control Unit
- Brand: SIEMENS
- Model: 840D
Main drive
- Spindle speed range: 3600 1/MIN
Movement
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Rapid traverse: 22.5 m/min
- Z-AXIS Rapid traverse: 33 m/min
Workpiece
- Workpiece drm over bed: 800 mm
- Workpiece drm: 600 mm
Tools
- Slots in storage: 12
Additional Information
- Technical Machine Benefits:
- - Ism102: 33 kw
- - Ism102plus: 40 kw torque (100% ed)
- - Ism102: 580 nm
- - Ism102plus: 1700 nm
- - Thrust (s6 - 40%): 9 / 9 / 13 kn
- - Max turning length: 2000 mm
- - Bar capacity: 102 mm
- - Clamping chuck diameter: 315 mm
- - Tool system: din 69880 (vdi 3425, page 2)
- - Tool shank diameter: 50 mm
- Qualitative Machine Benefits:
- - Large number of turning holders for vdi 50 turrets, holders for hobbing gears, grooves, gear teeth, etc. , large block holder (sauter) for holding boring tools, driven angle milling attachment (mt), 2 × driven straight holders (ews).
- - Slide traverse x / ±y / z: 415 / ±75 / 2025 mm
- - Hydraulic oil capacity: approx. 40 l
- - Max pressure: 90 bar
- - Clamping device pressure (max): 10–70 bar
- - Coolant tank capacity: approx. 250 l
- - Pump power: 0. 85 kw
- - Pump nominal delivery at 5 bar: 20 l/min
- - Room temperature: +15 to +35 °c
- - Max relative air humidity: 75%
- - Machine still under power. The machine is equipped with a fume extraction system, chip conveyor, Siemens CELOS control system with touchscreen, automatic tailstock, automatic steady rest unit, hydraulically clamping chuck, and increased coolant pressure through the tool spindle.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
