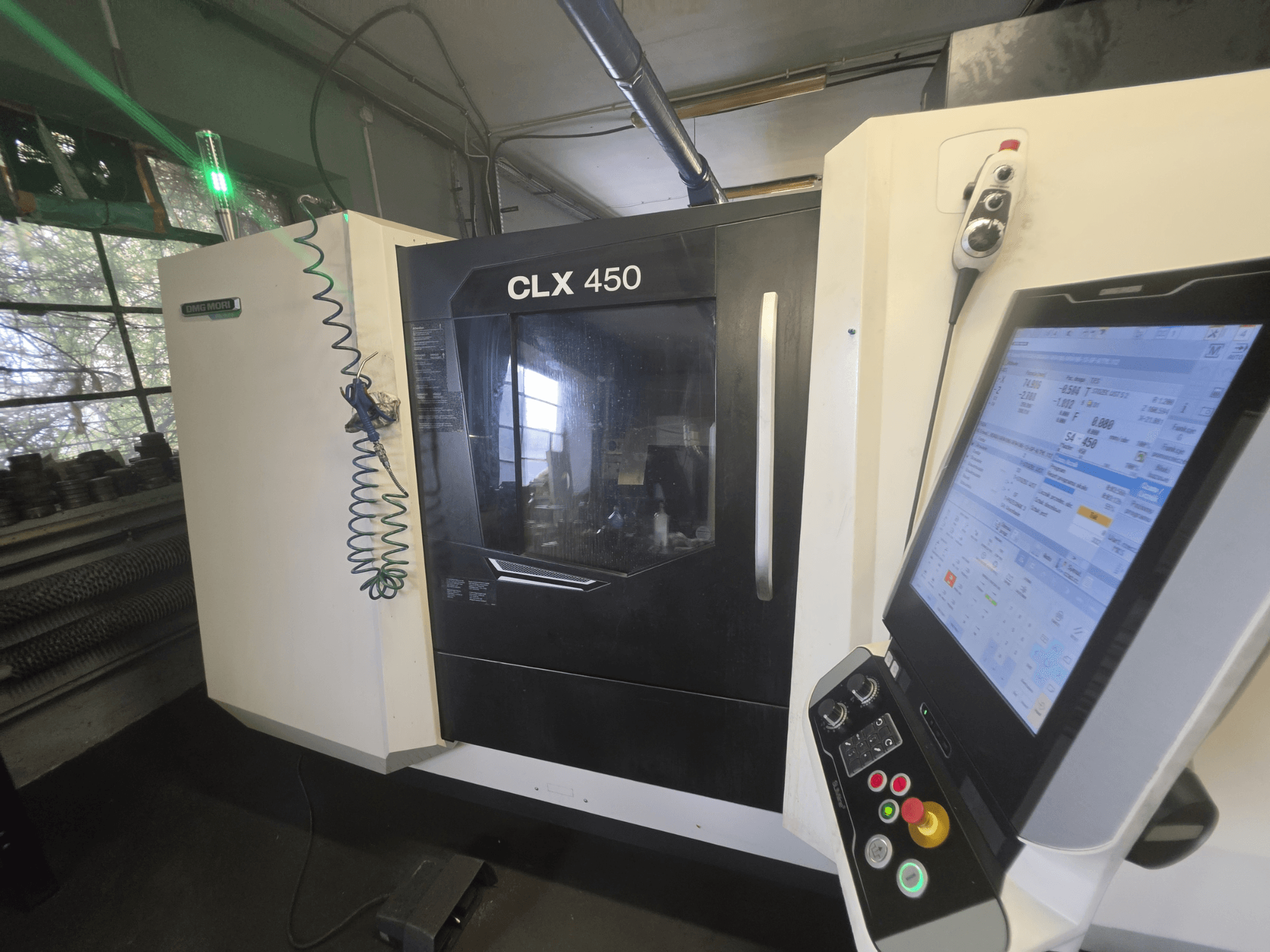

DMG MORI - CLX 450 V3PL-TUR-DMG-2023-00002

• Number of controlled axes: 3 (X, Z, C)

• Spindle operating hours: approx. 7,032 h

Working capacity

• Max turning diameter: 400 mm

• Max turning length: 800 mm

• Swing over bed: 700 mm

• Swing over cross slide: 500 mm

Axes

• Rapid traverse X/Z: 30 m/min

• Main spindle C-axis

• No Y-axis, no counter spindle

Main spindle

• Spindle nose: A2-8

• Bar capacity: 80 mm

• Spindle power: 25.5 kW (40% duty) / 17 kW (continuous)

• Spindle torque: 426 Nm (40% duty) / 283 Nm (continuous)

Tool turret and driven tools

• Turret: 12-position VDI 40 with 6 additional BT stations

• Driven tools: max 4,000 rpm, 5.44 kW (40% duty), 20 Nm (40% duty)

Tailstock

• Tailstock travel: 800 mm

• Centre taper: MT5

• Max thrust: 8 kN

Construction

• 45° inclined cast-iron bed

• Linear guideways
