➤ Used Pinacho STH 400-105×3000 For Sale | gindumac.com

Show in original language

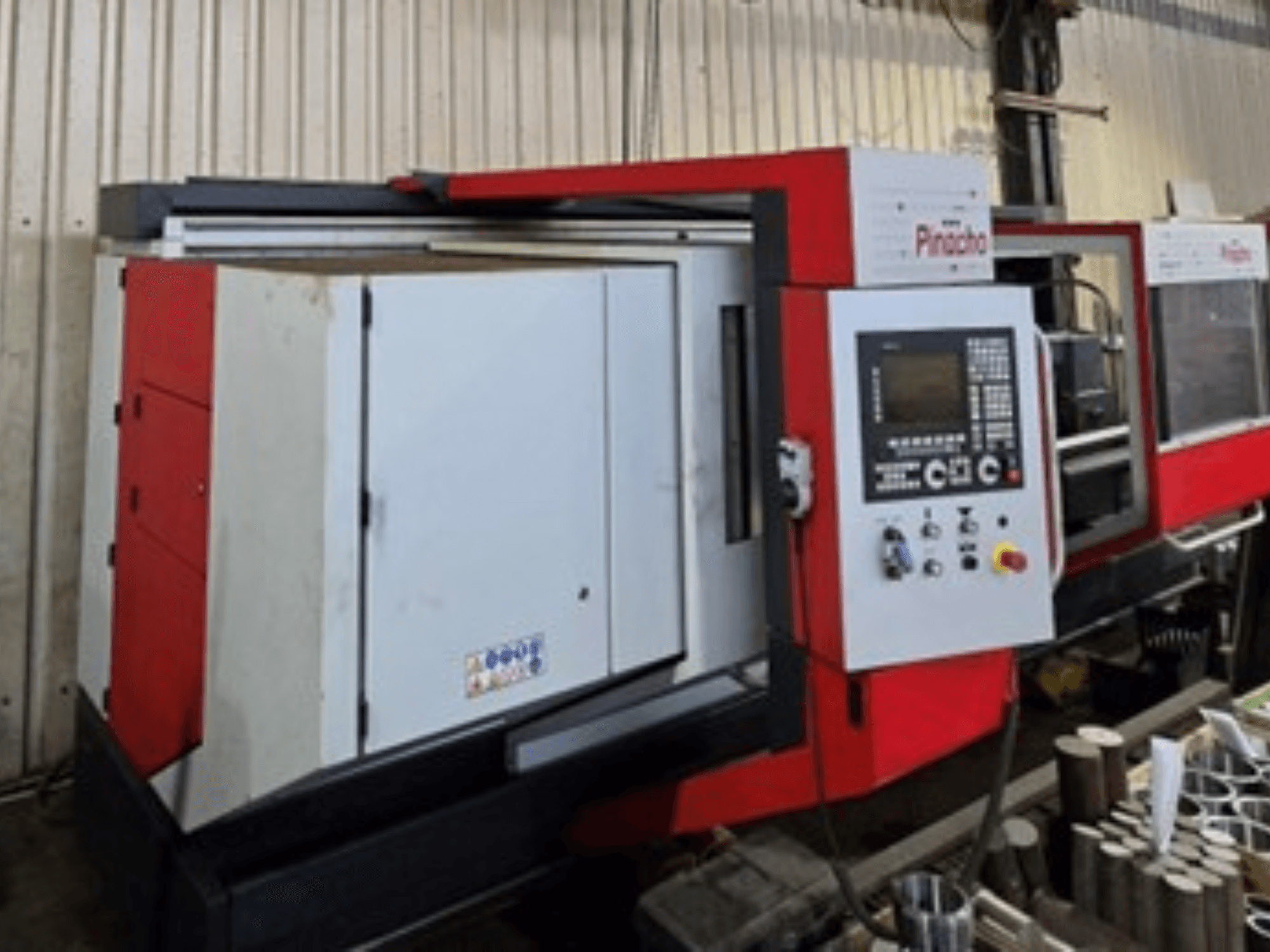

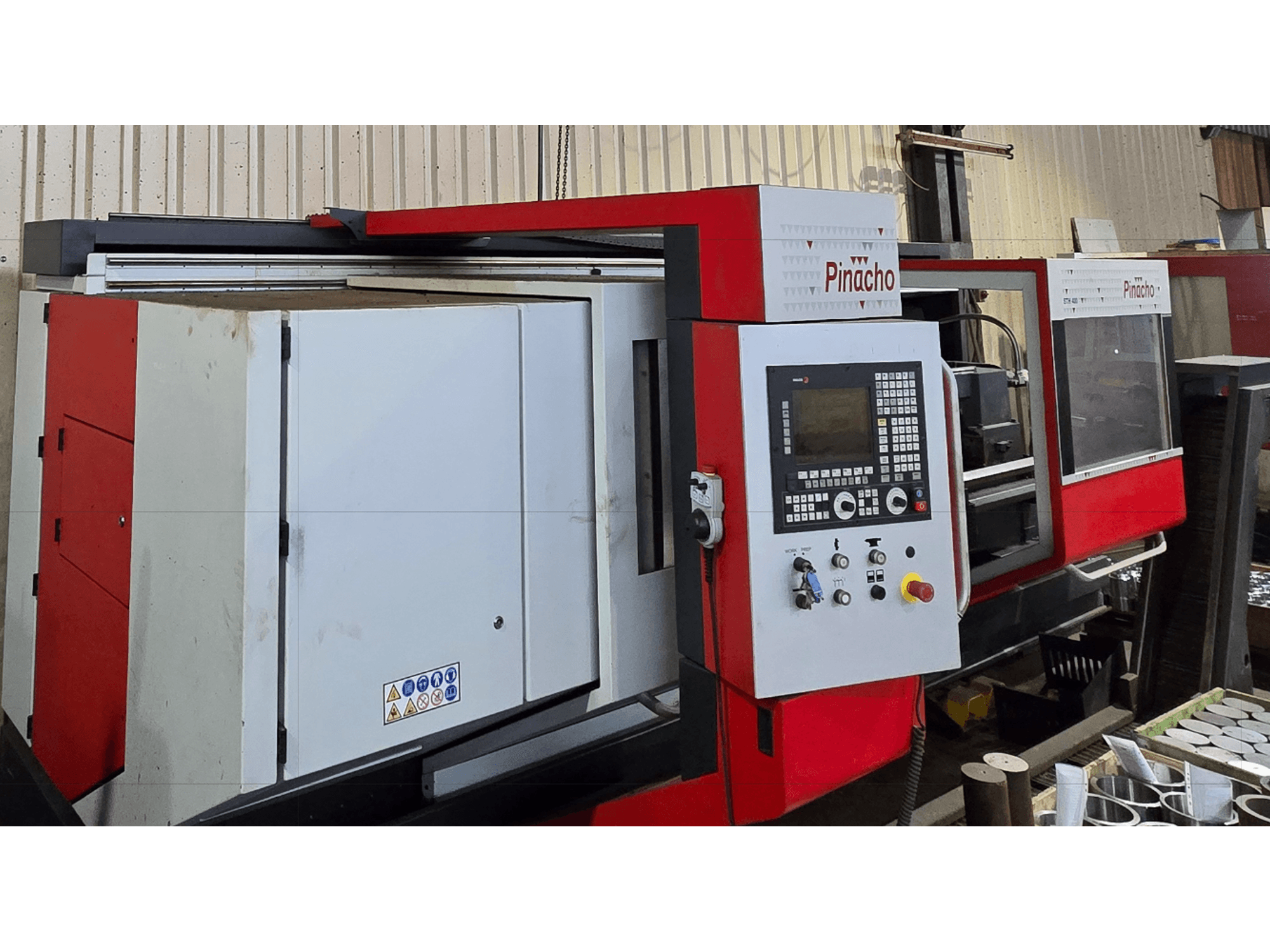

This Pinacho STH 400-105×3000 was manufactured in 2017. A robust horizontal turning machine with a swing over bed of 400 mm and a distance between centers of 3000 mm. Features a high-torque spindle and CNC-controlled feed for precise heavy-duty turning. Ideal for machining shafts, pipes, and flanges. Consider the opportunity to buy this Pinacho STH 400-105×3000 horizontal turning machine. Contact us for more information.

Overview

brand: Pinacho
year: 2017
MODEL: STH 400-105×3000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - Pinacho STH 400-105×3000

Control Unit

Control Brand: FAGOR

Dimensions

Machine Height: 2230 mm
Machine Length: 5530 mm
Machine Weight: 6460 kg
Machine Width: 1800 mm

Movement

Number of Axes: 2
X-axis Travel: 400 mm
Z-axis Travel: 3000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 17 kW
Spindle Speed: 425 RPM

Additional Information

Max. swing over bed: approx. 400 mm
Max. turning diameter: approx. 400 mm
Distance between centers: 3,000 mm
Bar capacity: approx. 105 mm

Spindle
- Main spindle: horizontal
- Spindle bore: 105 mm
- Spindle nose: A2-type (depending on configuration)
- Speed range: variable (CNC-controlled)
- High-torque spindle suitable for heavy turning
- Range I: 0 - 424 rpm
- Range II: 425 - 1700 rpm
Axes
- X-axis: cross slide
- Z-axis: longitudinal slide
- CNC-controlled feed and rapid traverse
Tool system
- Turret: CNC tool turret
- Number of tool stations: depending on configuration
- Suitable for internal and external turning
Control system
- CNC control: Fanuc / Siemens (depending on configuration)
- Full CNC contouring and threading capability
Application
- Medium to heavy-duty turning
- For shafts, pipes, flanges, and general production parts
- Suitable for series and job-shop production

A ball screw was replaced about 3 years ago

Accessories: 1 Lynette and various tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
