➤ Used Optimum TH 4610 For Sale | gindumac.com

Show in original language

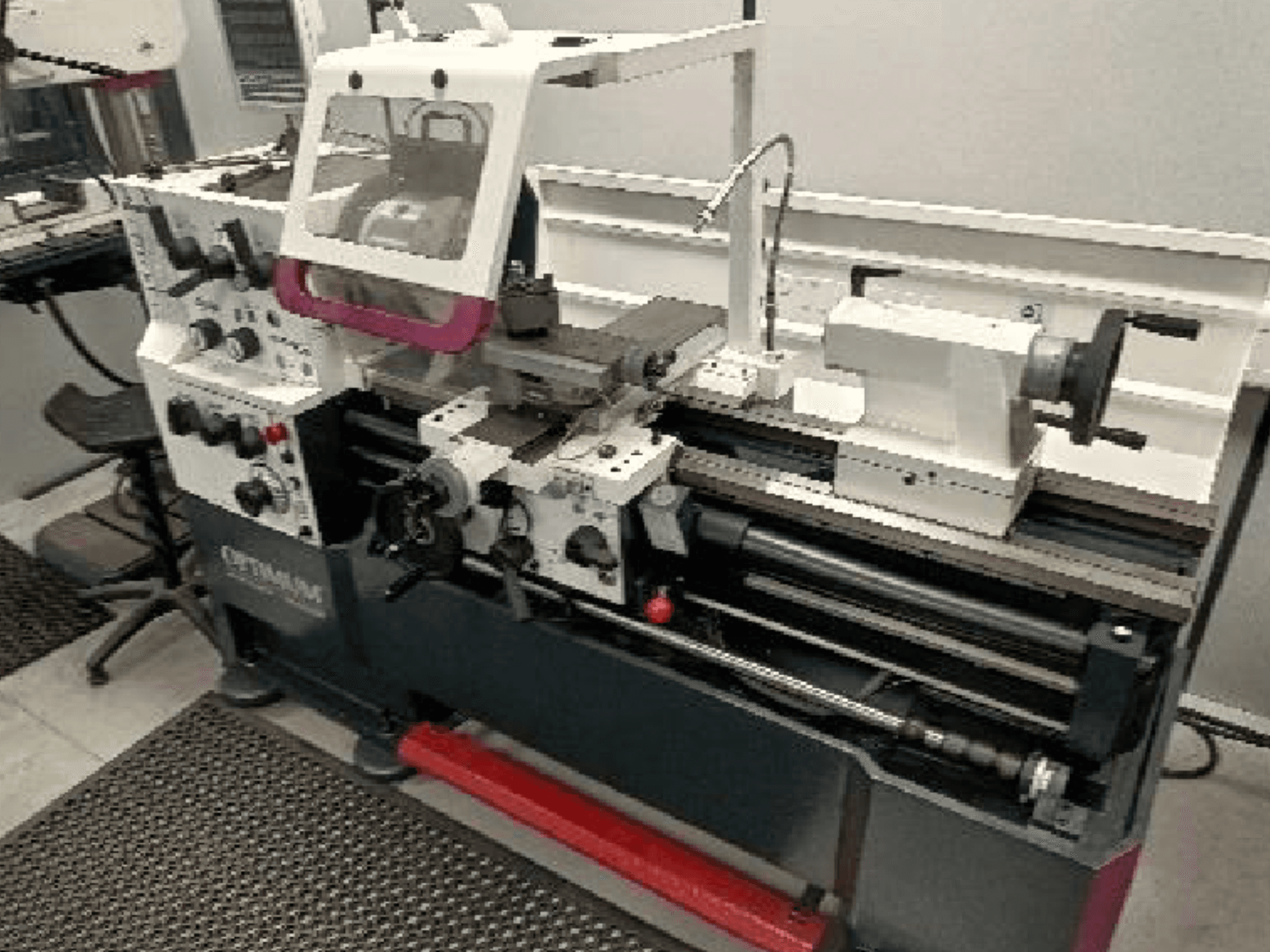

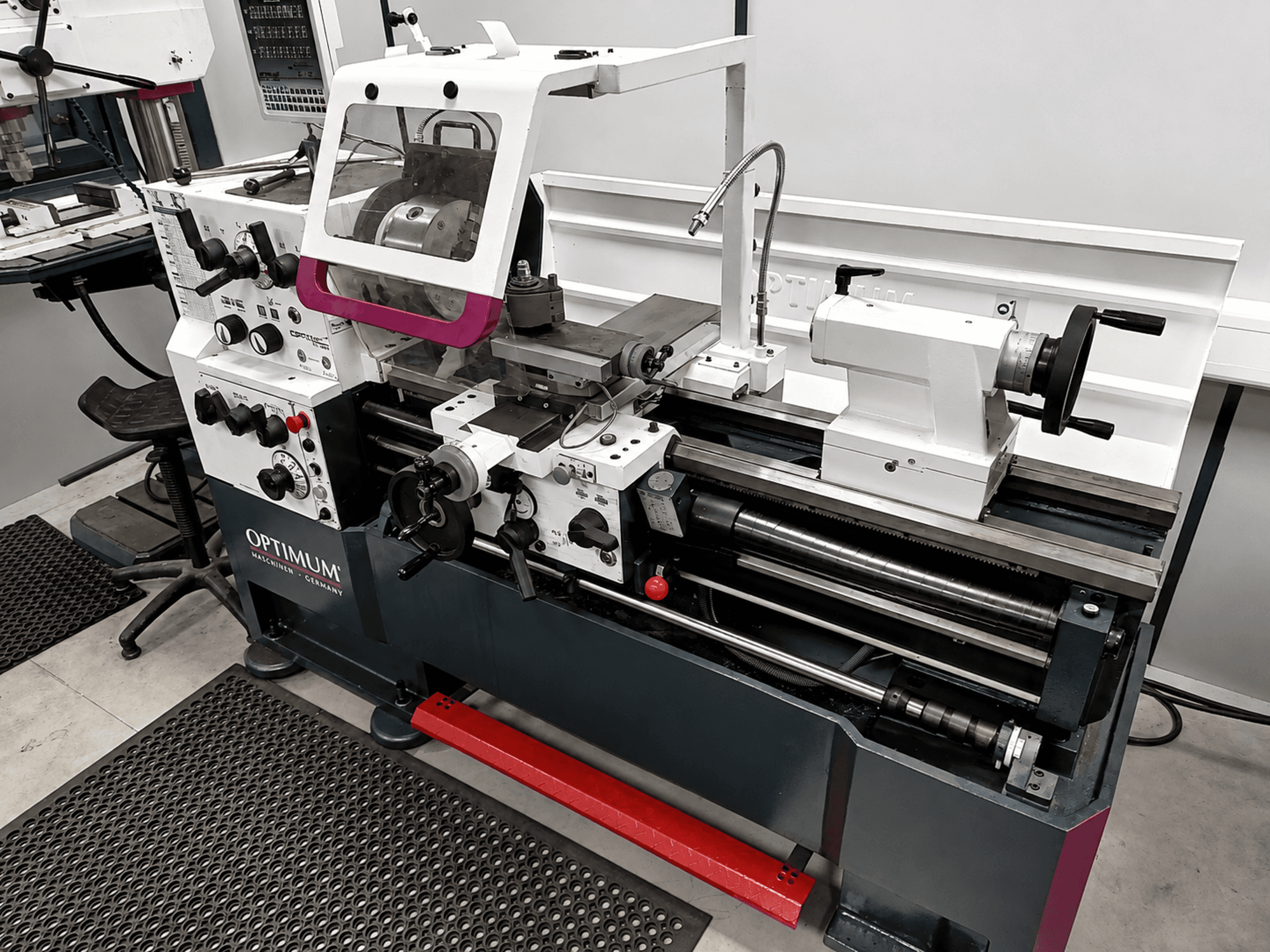

Manual lead screw and feed rod lathe manufactured in 2018. This Optimum TH 4610 features a distance between centers of 1060 mm and a swing over bed of 460 mm. It has a spindle speed range of 25 – 2000 U/min and can handle a maximum workpiece weight of 300 kg. If you are looking to get high-quality turning capabilities, consider the Optimum TH 4610 machine we have for sale. Contact us for further details.

Overview

brand: Optimum
year: 2018
MODEL: TH 4610
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Optimum TH 4610

Dimensions

Machine Height: 1550 mm
Machine Length: 2215 mm
Machine Weight: 1720 kg
Machine Width: 1065 mm

Movement

Number of Axes: 2

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 2000 RPM

Additional Information

- Machine Type: Manual lead screw and feed rod lathe with digital position indicator

- Distance Between Centers: 1060 mm

- Center Height: 230 mm

- Swing Over Bed: 460 mm

- Swing Over Slide: 270 mm

- Turning Length: 240 mm

- Main Spindle Bore: 58 mm

- Max. Workpiece Weight: 300 kg

- Morse Taper of Main Spindle: MK6 / MT6

- Spindle Speed Range: 25 – 2000 U/min (rpm)

- Cross Slide Travel: 285 mm

- Top Slide Travel: 125 mm

- Quill Diameter: 60 mm

- Quill Travel: 130 mm

- Taper in Quill: MK4 / MT4

- Three-Jaw Chuck Diameter: approx. 200 mm

- Dimensions (L x H x W): 2215 mm x 1550 mm x 1065 mm

- Motor Power: 5.5 kW

- Voltage / Frequency: 400 V / ~50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
