➤ Used KEY EAST BV-40160 For Sale | gindumac.com

Show in original language

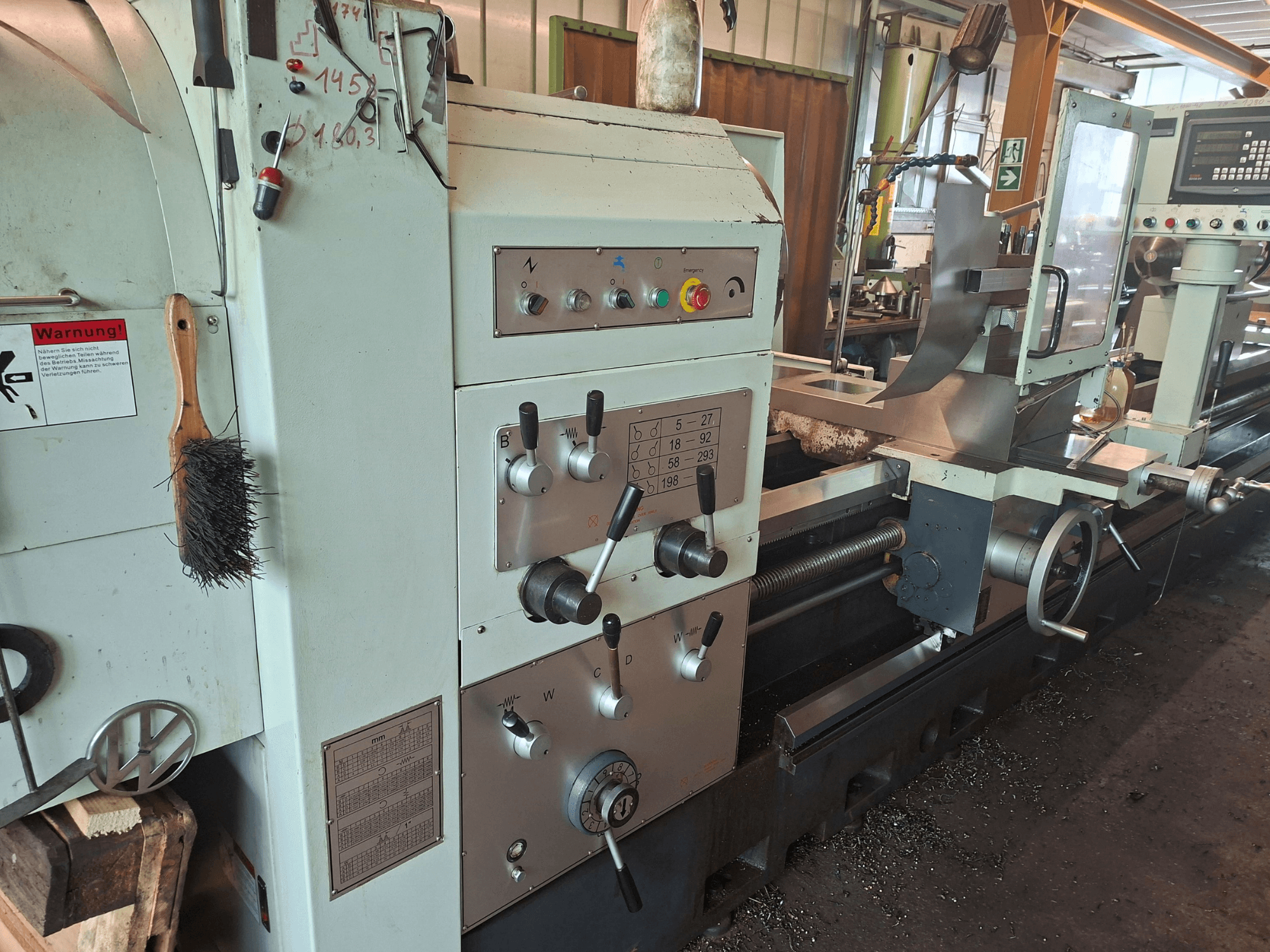

Horizontal turning machine manufactured in 2007. This KEY EAST BV-40160 features a swing over bed of 1,010 mm and a distance between centers of 4,000 mm. It includes a front and rear chuck diameter of 500 mm, along with a digital readout for enhanced precision. If you are looking to get high-quality turning capabilities, consider the KEY EAST BV-40160 machine we have for sale. Contact us for further details.

Overview

brand: KEY EAST
year: 2007
MODEL: BV-40160
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KEY EAST BV-40160

Dimensions

Machine Height: 1700 mm
Machine Length: 6900 mm
Machine Weight: 9600 kg
Machine Width: 1950 mm

Movement

Number of Axes: 2
X-axis Travel: 550 mm
Z-axis Travel: 4000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Max. Workpiece Diameter: 1010 mm
Spindle Power: 15 kW
Spindle Speed: 800 RPM
Tool Stations: 4

Additional Information

Conventional flat bed lathe with 2 axes (X and Z)
Equipped with a compound slide featuring a glass scale, whose movement is calculated together with the Z-axis on the digital readout for improved positioning accuracy
Power Supply: 380 V
Frequency: 50 Hz
Phase: 3 Ph
Center Height: 505 mm
Distance Between Centers: 4,000 mm
Front Chuck Diameter: 500 mm
Rear Chuck Diameter: 500 mm
Steady Rest: Included
Tailstock: Included
4-Way Manual Tool Post: Included
Coolant System: Included
Lubrication System: Included
Machine Condition: Used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
