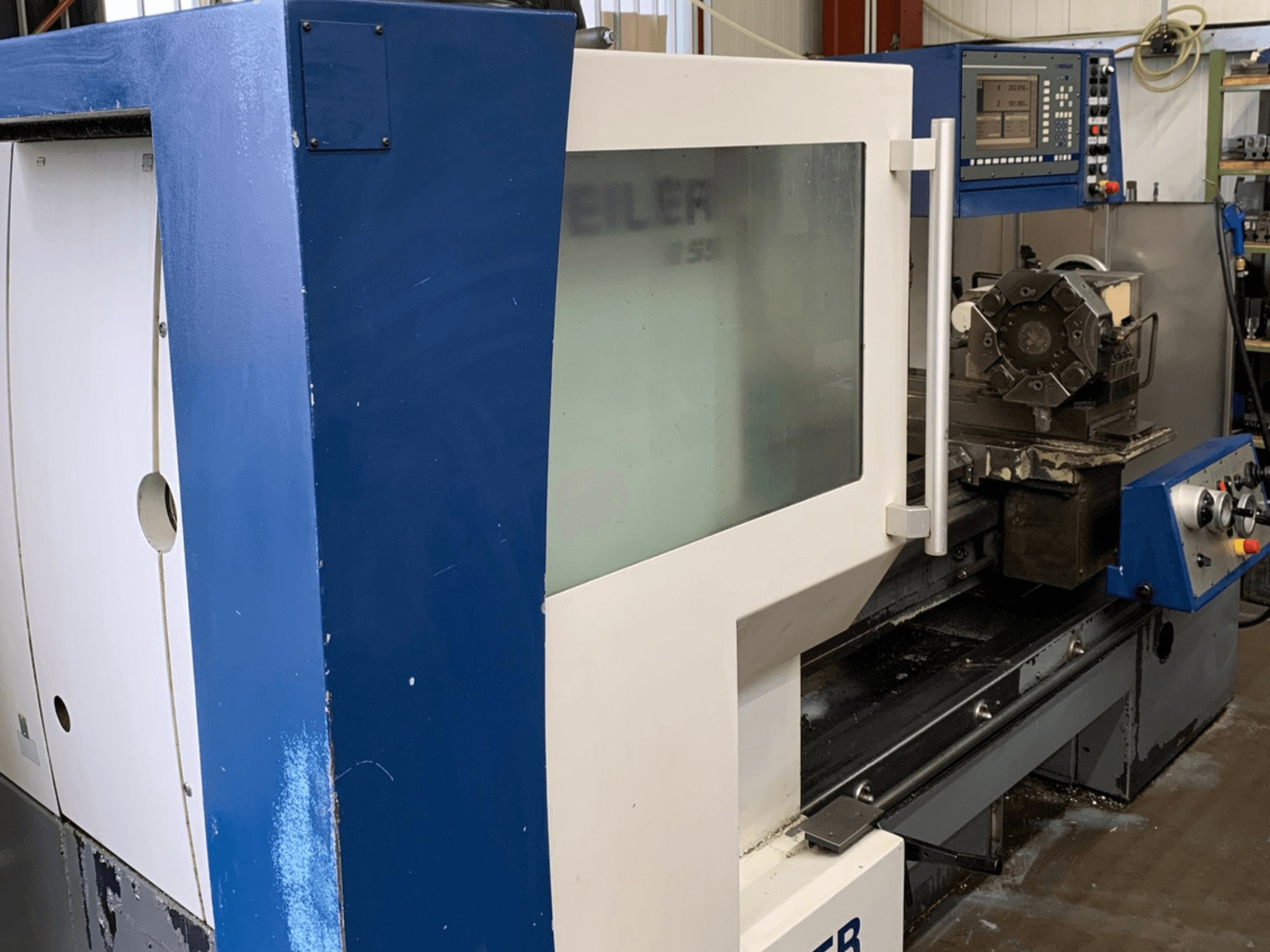

Weiler - E55X1000 DE-TUR-WEI-2007-00002

• Internal taper: Metric 90

• Spindle diameter in front bearing: 120 mm

• Spindle bore: 83 mm

• Flange diameter: 500 mm

• Maximum turning diameter: 315 mm

• Maximum torque: 1600 Nm

• Tool system: Sauter 8-fold

• Number of tool positions: 8

• Tool shank size: 32 x 25 mm

• Turret interface: Capto C4

• Number of face slides: 1

• Center distance: 1100 / 2100 mm

• Turning length: 340 mm

• Tailstock taper: MK 5

• Tailstock quill diameter: 80 mm

• Tailstock quill stroke: 200 mm

• Maximum tailstock travel: 1000 / 2000 mm

• Continuous duty speeds (S1):
  Gear stage I: 89 rpm
  Gear stage II: 355 rpm

• Emission level: 80 dB(A)

• Operating voltage: 400 V

• Control voltage: DC 24 V

• Connected load: 30 kVA

• Nominal current: 43 A

• Frequency: 50 Hz

• Main fuses: 50 A

• Condition note: Ball screw in Z axis makes noise, but dimensional accuracy is not affected

Additional equipment

• Extraction system
