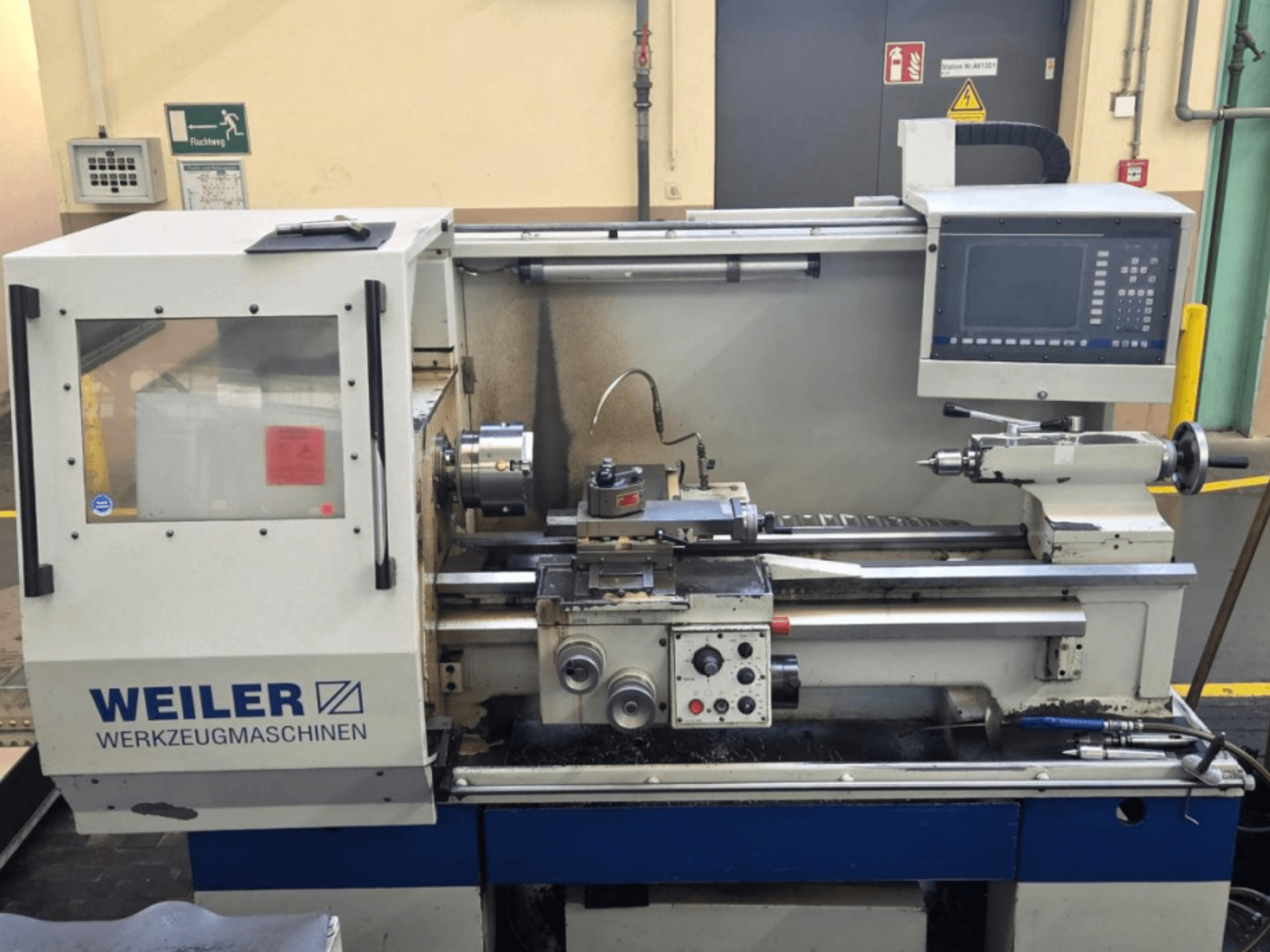

Horizontal turning machine manufactured in 1999. This Weiler E35 D features a Siemens Sinumerik 810D control with Weiler D1 user software and a 12.1-inch TFT color flat screen. It includes a coolant unit with a flow rate of 30 l/min and a tool holder for quick-change operations. If you are looking to get high-quality turning capabilities, consider the Weiler E35 D machine we have for sale. Contact us for further details.
Overview
- brand: Weiler
- year: 1999
- MODEL: E35 D
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Weiler E35 D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D
Movement
- Number of Axes: 2
- X-axis Travel: 230 mm
- Z-axis Travel: 950 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
Additional Information
Control: Siemens Sinumerik 810D with Weiler D1 user software
Display: 12.1-inch TFT color flat screen
Operating voltage: 400 V
Control voltage: 24 V
Connected load: 14 kW
Nominal current: 26 A
Frequency: 50 Hz
Main fuses: 35 A
Coolant unit: 30 l/min at 0.4 bar
Tool holder: Multifix quick-change size B
Features: Teach-in functions; graphic-supported contour programming; V-24 interface; electronic handwheel for manual contour following
Additional equipment
Included accessories: 1 change holder; fixed center point; spindle plug; key set; manuals; chip protection wall; movable splash guard; chuck guard with limit switch monitoring
Optional equipment included: Fixed steady rest with roller jaws (12–150 mm); adjustable hollow spindle stop; lever-operated collet chuck for DIN 6343-48 (173E)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
