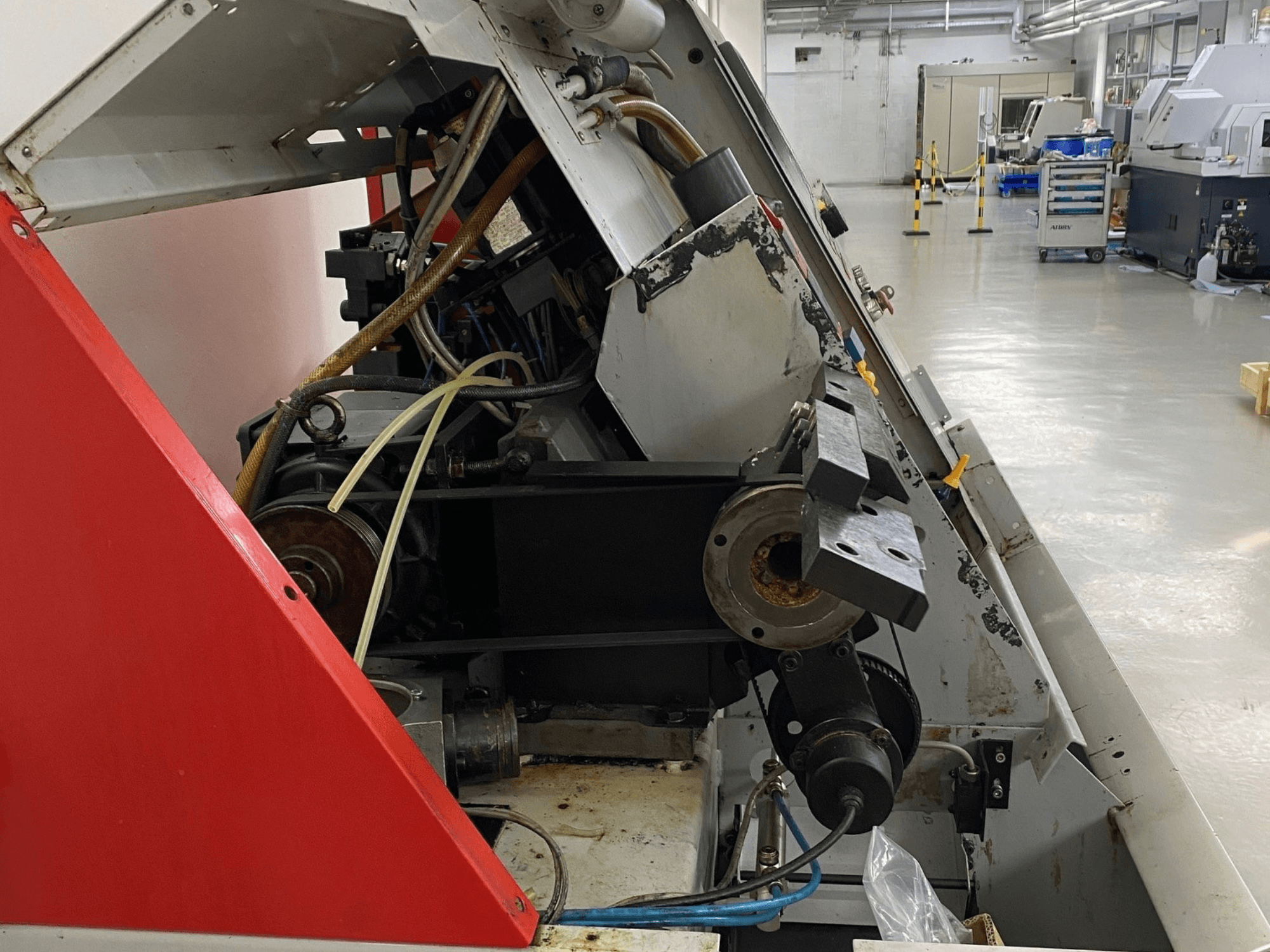

Horizontal turning machine manufactured in 1999. This EMCO Emcoturn 325 features a 3-phase supply voltage of 400 V and a rated current of 9.5 A. If you are looking to get high-quality turning capabilities, consider the EMCO Emcoturn 325 machine we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 1999
- MODEL: Emcoturn 325
- production hours: 20941
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - EMCO Emcoturn 325
Movement
- Number of Axes: 2
- X-axis Travel: 56 mm
- Z-axis Travel: 176 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
Additional Information
Supply voltage: 400 V
Phase: 3-phase (3/PE – three phases + protective earth)
Frequency: 50/60 Hz
Rated current (IM): 9.5 A
Maximum current (Imax): 18 A
Short-circuit current (Ik): 6 kA
Duty cycle: S6 – 40%
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
