➤ Used Weiler E35 Horizontal Lathe For Sale | gindumac.com

Show in original language

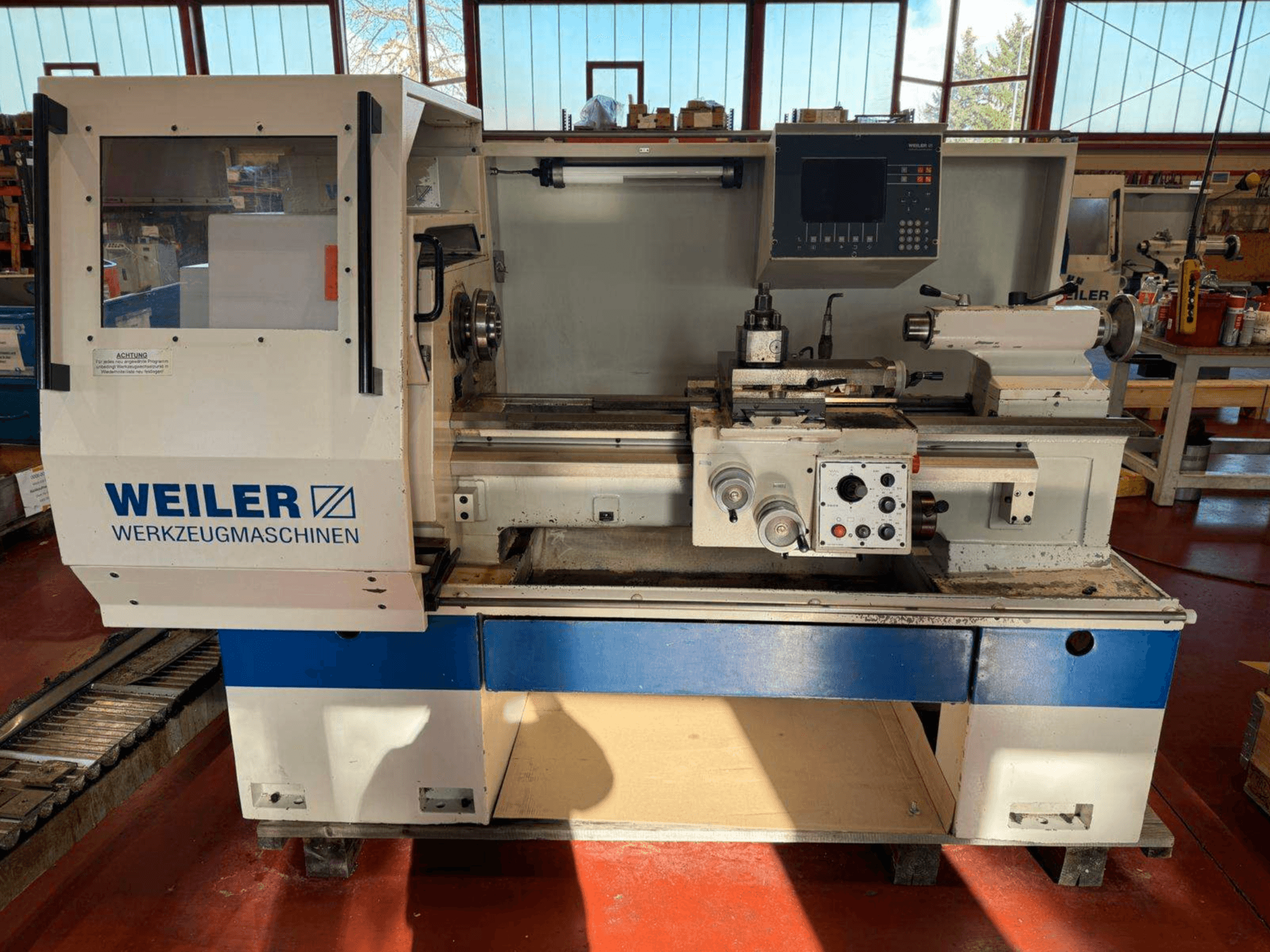

Horizontal turning machine manufactured in 1998. This Weiler E35 features a center distance of 950 mm and a swing over bed of 410 mm. It has a spindle bore of 54 mm and a maximum torque at spindle of 700 Nm. If you are looking to get high-quality turning capabilities, consider the Weiler E35 machine we have for sale. Contact us for further details.

Overview

brand: Weiler
year: 1998
MODEL: E35
production hours: 35626
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Weiler E35

Movement

Number of Axes: 2

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 3000 RPM

Additional Information

Center distance: 950 mm

Center height: 200 mm

Swing over bed: 410 mm

Swing over cross slide: 200 mm

Cross slide travel: 230 mm

Carriage guide length: 480 mm

Spindle nose: DIN 55025 size 6

Spindle bore: 54 mm

Spindle taper: Morse taper 6

Drive power (100% / 60% duty): 7.5 / 9 kW

Maximum torque at spindle: 700 Nm

Speed range: 1–3000 rpm

Speed range gear stage I: 1–750 rpm

Speed range gear stage II: 4–3000 rpm

Tailstock quill diameter: 65 mm

Tailstock quill travel: 120 mm

Tailstock taper: Morse taper 4

Tool system: Parat size 2

Control: D2

Number of axes: 2 (X, Z)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
