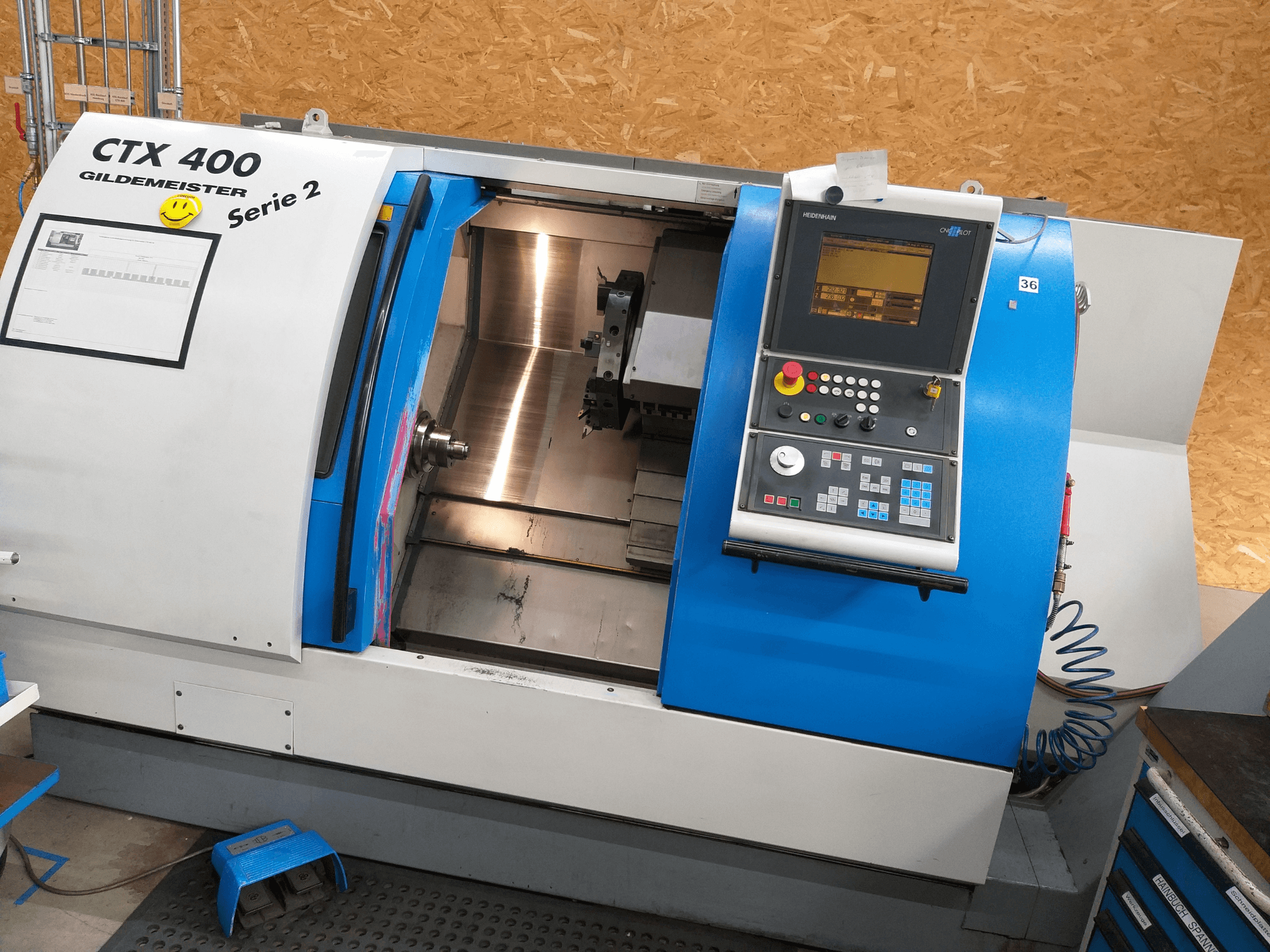

Gildemeister - CTX400 Serie2 (1999) DE-TUR-GIL-1999-00003

• Control Unit Brand: HEIDENHAIN

• Control Unit Model: CNC PILOT

• Distance Between Centers: 600 mm

• Swing Over Bed: 570 mm

• Swing Over Cross Slide: 470 mm

• Maximum Turning Diameter: 420 mm

• Spindle Nose: DIN 55026 Flat Flange Size 170h5

• Front Bearing Diameter: 120 mm

• Spindle Bore: 79 mm

• Maximum Chuck Diameter: 250 mm

• Maximum Torque: 320 Nm

• Turret Type: Disc Turret

• Tool System: VDI 20/20

• Tailstock Taper: MK4

• Tailstock Quill Diameter: 80 mm

• Tailstock Quill Travel: 550 mm

• Feed Drive X-Axis: 3.3 kW

• Feed Drive Z-Axis: 3.3 kW

• Lubrication Pump Power: 0.1 kW

• Coolant Pump Power: 1.4 kW

• Hydraulic Pump Power: 1.5 kW

• Rapid Traverse X-Axis: 24000 mm/min

• Rapid Traverse Z-Axis: 20000 mm/min

• Feed Rate: 0.025–7000 mm/min

• Thread Pitch Range: 0.025–3500 mm/min

• Coolant Tank Capacity: 100 L

• Power Supply: 400 V

• Frequency: 50 Hz

• Connected Load: 44 kVA

• Rated Current: 64 A

• Control Voltage: 24 V

• Operating Hours: 58,132 h

• CE Certified

• Scope of delivery as shown, including 3 internal clamping heads

• Configuration as shown: VDI30 disc turret

Optional:

• Tailstock

• Chip conveyor
