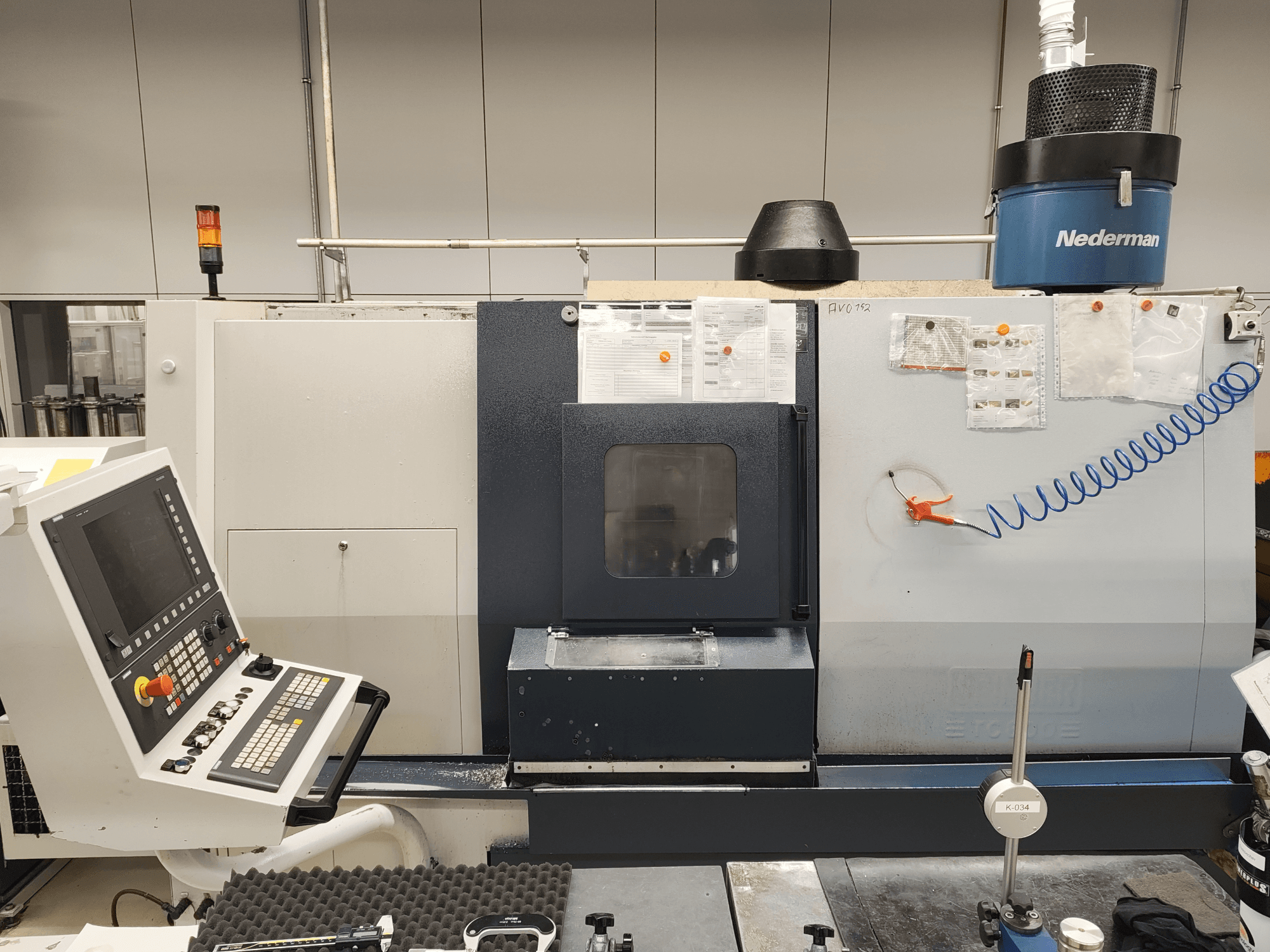

This 3-axis SPINNER TC 800 110 MC was manufactured in 2009. It features a collet chuck for clamping and includes a dust extraction system. Optional equipment includes a bar feeder, parts catcher, turret with driven tool, chip conveyor, and tailstock. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 800 110 MC horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2009
- MODEL: TC 800 110 MC
- production hours: 26180
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - SPINNER TC 800 110 MC
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Height: 2090 mm
- Machine Length: 3250 mm
- Machine Weight: 7500 kg
- Machine Width: 1980 mm
Movement
- Number of Axes: 3
- X-axis Travel: 360 mm
- Z-axis Travel: 980 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Max. Bar Diameter: 110 mm
- Max. Workpiece Diameter: 500 mm
- Spindle Power: 33 kW
- Spindle Speed: 2500 RPM
- Taper Size: VDI 50
- Tool Stations: 12
Additional Information
Live Tool Speed: 4,000 rpm
Live Tool Power (100%/40%): 5 / 9.6 kW
Rapid Traverse X/Z: 15 / 24 m/min
Maximum Turning Diameter: approx. 500 mm
Maximum Swing Diameter: approx. 800 mm
Distance Between Centers: 800 mm
Main Spindle Nose: A11
Main Spindle Power (100%/40%): 22 / 33 kW
Main Spindle Torque (Gear 1, 100%/40%): 175 / 263 Nm
Main Spindle Torque (Gear 2, 100%/40%): 700 / 1050 Nm
Coolant Tank Capacity: approx. 235 l
Hydraulic Tank Capacity: approx. 11 l
Central Lubrication Tank: approx. 2–3 l
Machine Weight: approx. 7,000–7,500 kg
Supply Voltage: 3/PE ~ 400 V
Frequency: 50 / 60 Hz
Operating Current (IB): 63 A
Rated Current (IN): 80 A
Collet Chuck Used for Clamping
Supply Voltage: 3/PE ~ 400 V
Frequency: 50 / 60 Hz
Operating Current (IB): 63 A
Rated Current (IN): 80 A
Collet chuck used for clamping
Dust extraction system
Optional equipment:
Bar feeder
Parts catcher
Turret with driven tools
Chip conveyor
Tailstock
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
