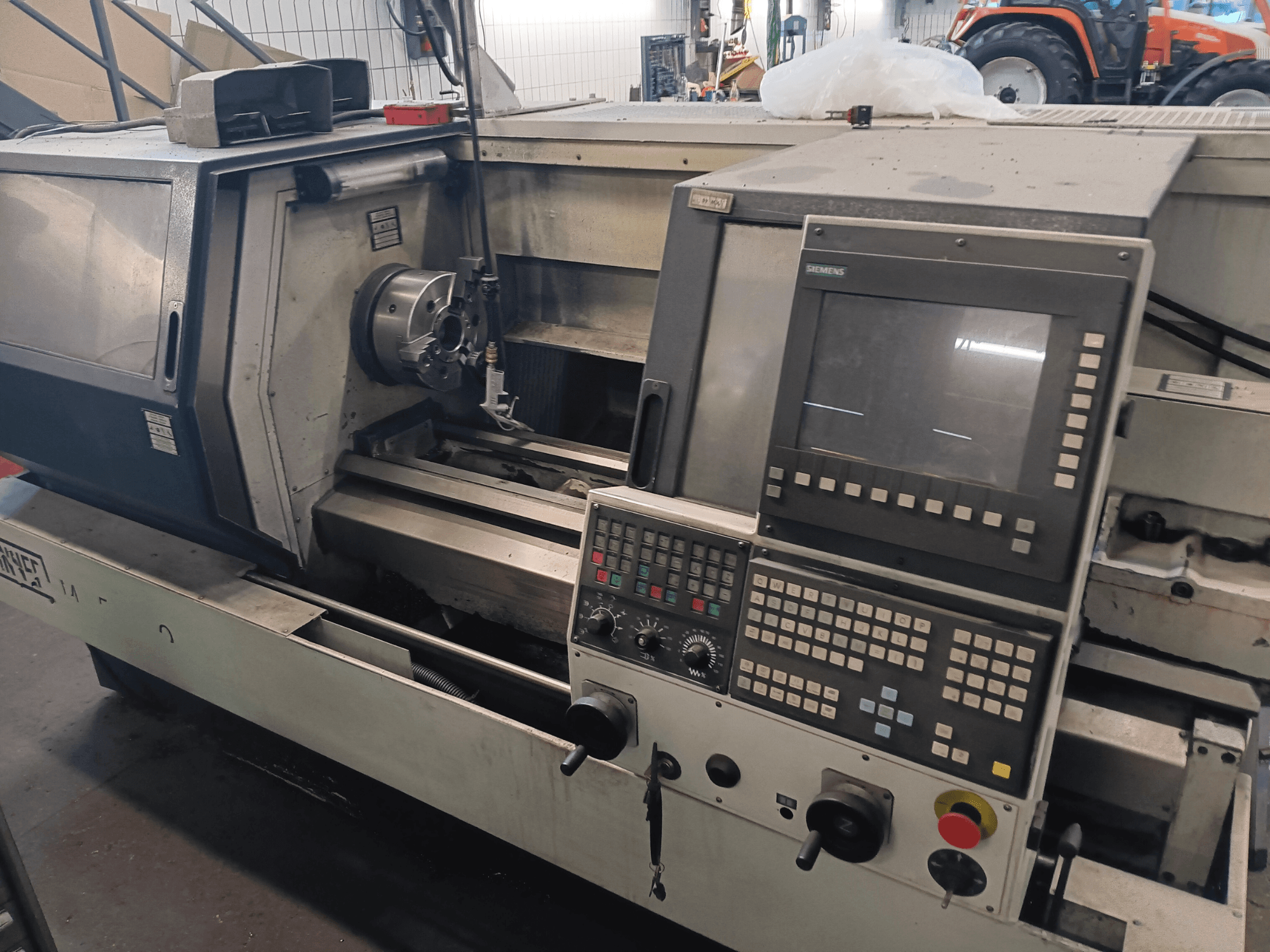

This 3-axis SPINNER MT 500/1000 AT was manufactured in 2000. It features an X-axis travel of 210 mm, and Z-axis travel of 930 mm. The machine includes a robust table size of 520 x 900 mm with a load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MT 500/1000 AT machine we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2000
- MODEL: MT 500/1000 AT
- production hours: 27218
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: HEIDENHAIN
Technical Information - SPINNER MT 500/1000 AT
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 410/426
Dimensions
- Machine Weight: 2300 kg
Movement
- C-axis: 360°
- Number of Axes: 3
- X-axis Travel: 210 mm
- Z-axis Travel: 930 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Positioning Accuracy: 3 µm
- Spindle Speed: 3600 RPM
- Taper Size: SK 40
Additional Information
Machine/Mechanic MT500-1000
Travel X-axis: 210 mm
Travel Z-axis (Multifix holder + manual chuck): 930 mm
Travel Z-axis (Multifix holder + hydr. chuck): 930 mm
Travel Z-axis (Turret + manual chuck): 930 mm
Travel Z-axis (Turret + hydr. chuck): 930 mm
Travel C-axis: 360 degrees
Spindle clearance 45 mm with hydraulic chuck: 3600 rpm
Spindle clearance 57 mm with manual chuck: 3600 rpm
Tool system Haase quick-change holder: 1 tool unit
Tool system Turret VDI 30: 12 tool units
Ball screw pitch in X: 5 mm
Ball screw pitch in Z: 10 mm
Rapid traverse X: 15000 mm/min
Rapid traverse Z: 20000 mm/min
Feed rate X + Z: 0-4000 mm/min
Feed force X-axis: 1382 daN
Feed force Z-axis: 609 daN
Tensile force hollow clamping cylinder: 145 daN/bar
Manual chuck Ø 200mm: 3 jaws
Hydraulic chuck Ø 210mm: 3 jaws
Coolant tank volume: 75 l
Coolant pump flow rate: 30 l/min
Coolant pump pressure: 1.4 bar
Max. positioning scatter: 3 µm
Max. backlash: 2 µm
Positioning uncertainty: 2 µm
Max. circularity error on workpiece: <= 1.5 µm
Max. flatness deviation: <= 1.5 µm
Tailstock quill Ø: 80 mm
Tailstock quill stroke: 120 mm
Morse taper mount: MT 4
Quill contact pressure: 27.75 daN/bar
Length x Width x Height: 2.7 x 1.6 x 1.8 m
Installation area: 4.3 m2
Weight: 2300 kg
Control system: Siemens 810D
Operating voltage: 400 V
Mains frequency: 50/60 Hz
Control voltage: 24 DC
Connected load: 16 KW
Electrical connection: TN / TT / IT
Spindle S1/S6 operation: 9/11 KW
Feed motors X/Z: 3.5 KW
Hydraulic components: Parker
Control valves: ISO1
Oil mist lubrication filling quantity: 50 ml
Max. operating pressure: 30 bar
Min. operating pressure: 6 bar
Max. spindle torque: 115/153 Nm
Control Unit: Siemens (visible in interface)
Additional equipment
Benz high-speed spindle (up to 25,000 rpm)
Vice
Chucks
Cutters
Plates
Tap holders
