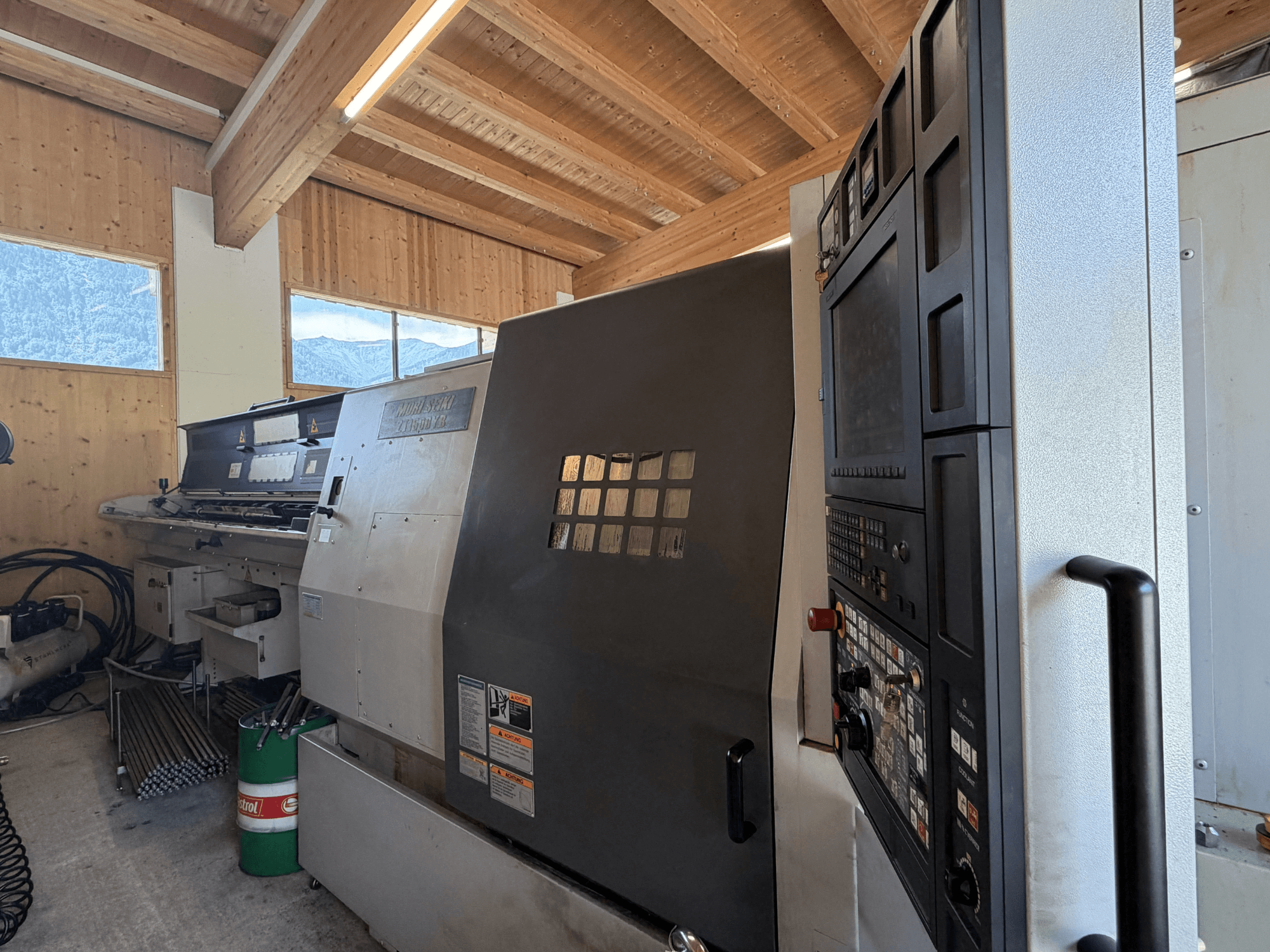

MORI SEIKI - ZT1500YBAT-TUR-MOR-2005-00001

- Head 1 Operating Time: 36,316 h

- Head 1 Machining Time: 18,301 h

- Head 2 Operating Time: 36,324 h

- Head 2 Machining Time: 11,026 h

- Turret Type: 12 stations [16 stations optional]

- Number of Tools in Turret: 12 [16]

- Shank Height for Square Tool: 20 mm

- Shank Diameter for Boring Bar: 25 mm

- Driven Tool Spindle 1 & 2 Speed: 6,000 rpm

- Driven Tool Spindle 1 & 2 Capacity: Drill max. 13 mm diameter, Thread max. M12

- Rapid Traverse Speed: X1, X2: 18,000 mm/min; Z1, Z2: 24,000 mm/min; Y: 6,000 mm/min; B: 24,000 mm/min

- Jog Feedrate: X, Z, B: 0-1260 mm/min

- Spindle Motor 1 & 2 (30 min / continuous): 22 / 18.5 kW

- Driven Tool Drive Motor Spindle 1 & 2 (5 min / 15 min / continuous): 5.5 / 3.7 / 2.2 kW

- Axis Motors: X1: 3 kW; X2: 2.5 kW; Z2: 3 kW; Y: 1.6 kW; B: 3 kW

- Hydraulic Pump Motor: 0.75 kW

- Lubricant Pump Motor: 0.02 kW

- Coolant Pump Motor: 0.6 kW x 2, 1.2 kW x 1

- Cooling Oil Pump Motor: Compressor: 0.65 kW; Lubricating pump: 0.4 kW; Blower: 0.045 kW

- Required Power Supply: 63.37 kVA

- Compressed Air Supply: 0.5 MPa, 100 L/min <ANR>

- Max. Workpiece Swing Diameter: 310 mm <collision with turret cover>

- Max. Distance Between Spindle Noses: 1000 mm

- Max. Turning Diameter: 190 mm

- Max. Turning Length: 235 mm

- Standard Turning Diameter: 170 mm

- Max. Bar Capacity: 65 mm

- X-Axis Travel (Nr. 1 & Nr. 2): 140 mm

- Z-Axis Travel: Z1: 700 mm, Z2: 690 mm

- Y-Axis Travel: ±50 mm

- Spindle 2 Travel (B-Axis): 775 mm

- Number of Spindle Speed Ranges: 1 step

- Spindle Nose (Spindle 1 & 2): JIS A2-6

- Spindle Speed Range (Spindle 1 & 2): 50-5000 rpm

- Spindle Bore (Spindle 1 & 2): 73 mm

- Min. Spindle Indexing Angle: 0.001° <smallest input>

- Spindle Bearing Inner Diameter: 120 mm

- Chuck (Spindle 1 & 2): 8" power chuck & hollow clamping chuck

- Hydraulic Oil Tank Capacity: 10 L

- Lubricant Tank Capacity: 6 L

- Coolant Tank Capacity: 285 L

- Oil Cooler Tank Capacity: 12 L

- Floor Space (without chip conveyor): 3702 x 2066 mm

- Voltage: AC 200 V

- Phase: 3 Phase

- Frequency: 50 Hz

- Full Load Current: 182 A

- Spindle Motor Current Rating: 122 A

- Interrupting Capacity: 5 kA

- Rated Power: 63 kVA

Additional Information

• The ball screw on Turret 2 has failed

• The defective ball screw has already been removed and a new replacement ball screw is included with the machine

• The machine remains operational; however, only Turret 1 is currently functional
