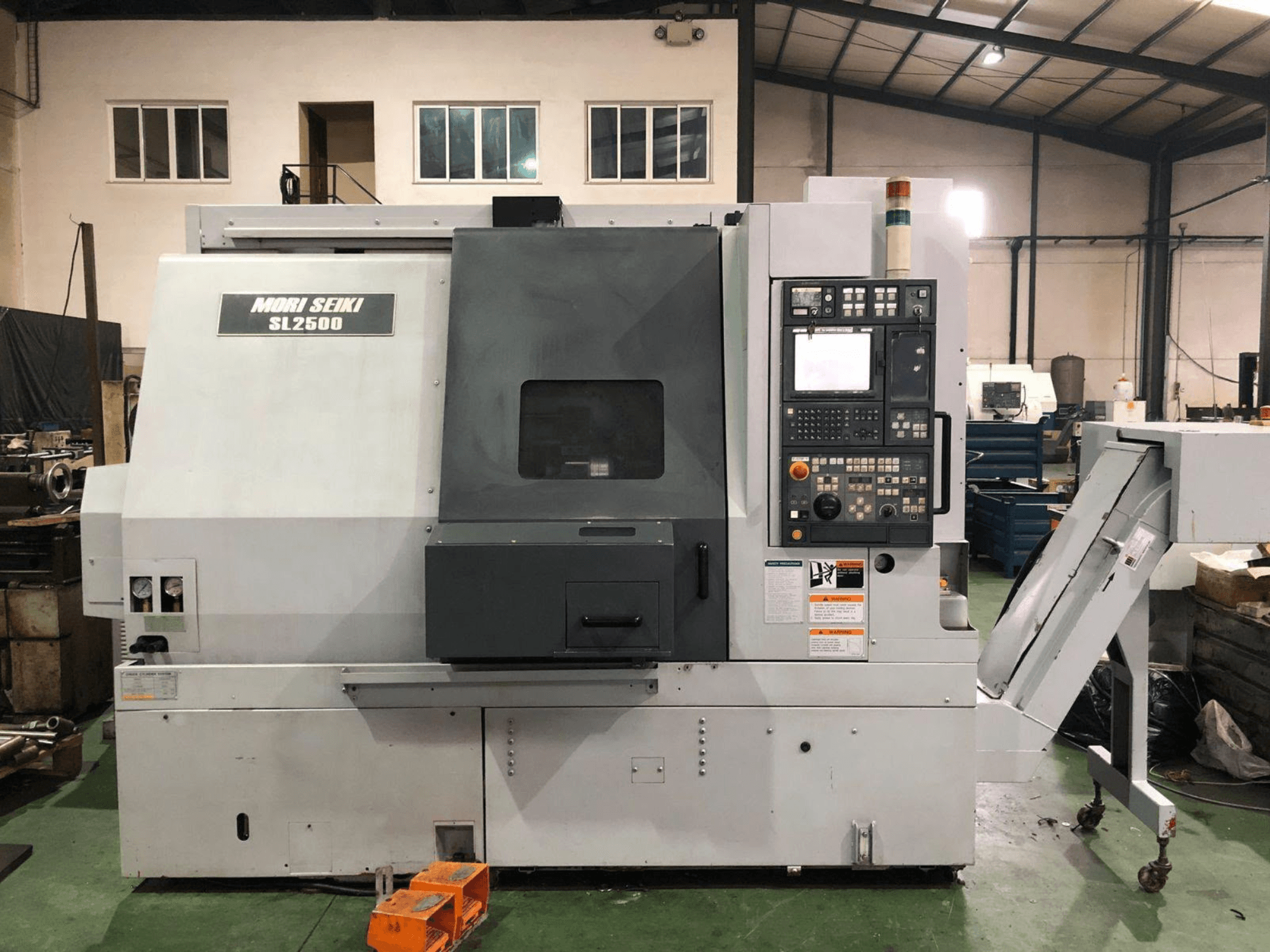

DMG Mori Seiki - SL 2500 YES-TUR-DMG-2005-00001

• Capacity & working area:

  • Max. swing diameter: 755 mm

  • Max. machining diameter: 390 mm

  • Max. machining length: 655 mm

  • Bar capacity: 75 mm

  • Rapid traverse: 18 m/min (X) / 24 m/min (Z)

  • Guideways: Box ways on all axes

• Main spindle & headstock:

  • Spindle torque: 640 Nm

  • Spindle nose: A2-8

  • Chuck: 250 mm Kitagawa B-210 (metric)

  • Cooling: Daikin spindle oil chiller

• Turret & live tooling:

  • 12-station turret (all stations motorized)

  • Turret indexing time: 0.2 s

  • Live tooling speed: 4,000 RPM

  • Live tooling motor: 5.5 kW

  • Tooling system: Sandvik Capto quick change tooling system (valued at €22,000–€24,000)

• Tailstock & axes:

  • Axis configuration: 4-axis (X, Z, Y, C)

  • Tailstock: Programmable hydraulic tailstock

  • Tailstock taper: MT5 Morse taper

• Control, software & measuring:

  • 3D graphic simulation via proprietary CAM software

  • Cycle time verification

  • Automatic load control & tool wear monitoring

  • Tool measurement: Automatic Renishaw tool presetter arm

  • Connectivity: USB, PCMCIA, RS-232

Additional equipment

• Bar feeder interface (machine prepared)

• Interface for Autoblok hydraulic steady rest (ready for installation)

• Automatic parts catcher

• Hinge-type side chip conveyor

• Large assortment of static and live tool holders

• Dual foot pedal (main chuck & tailstock operation)

• Electrical transformer

• Complete documentation: Parts list, electrical schematics, programming & operating manuals
